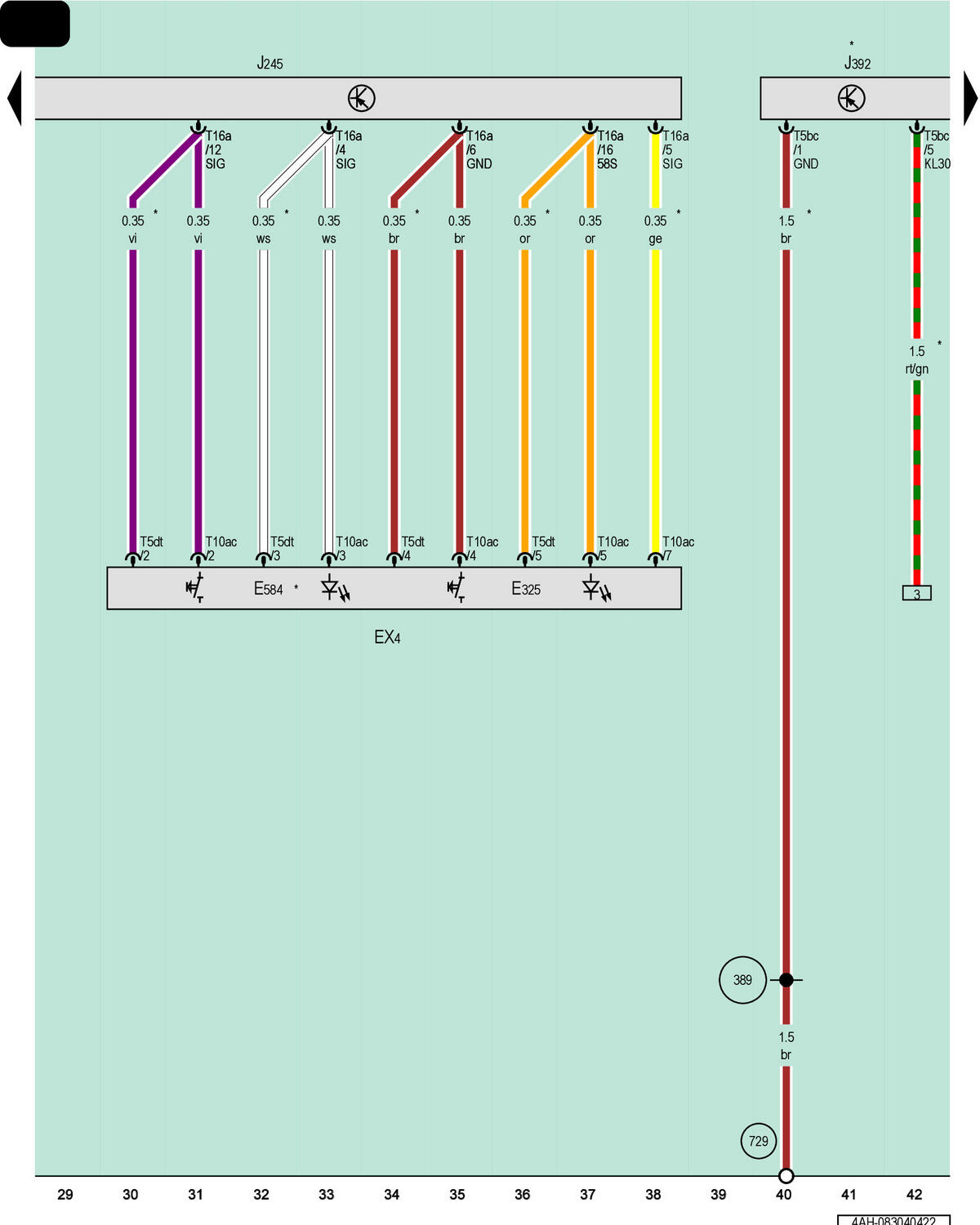

Sunroof Adjuster, Roof Shade Button 1, Sunroof Control Module, Rear Sunroof Control Module

Courtesy of AUDI OF AMERICA, LLC

EX4

Sunroof Adjuster

E325

Sunroof Button

E584

Roof Shade Button 1

J245

Sunroof Control Module

J392

Rear Sunroof Control Module

T5bc

5-Pin Connector, Black

T5dt

5-Pin Connector, Black

T10ac

10-Pin Connector, Black

T16a

16-Pin Connector, Brown

389

Ground Connection 24 (in Main Wiring Harness)

729

Ground Connection on Left Rear Wheel Housing

*

Depending on Equipment
