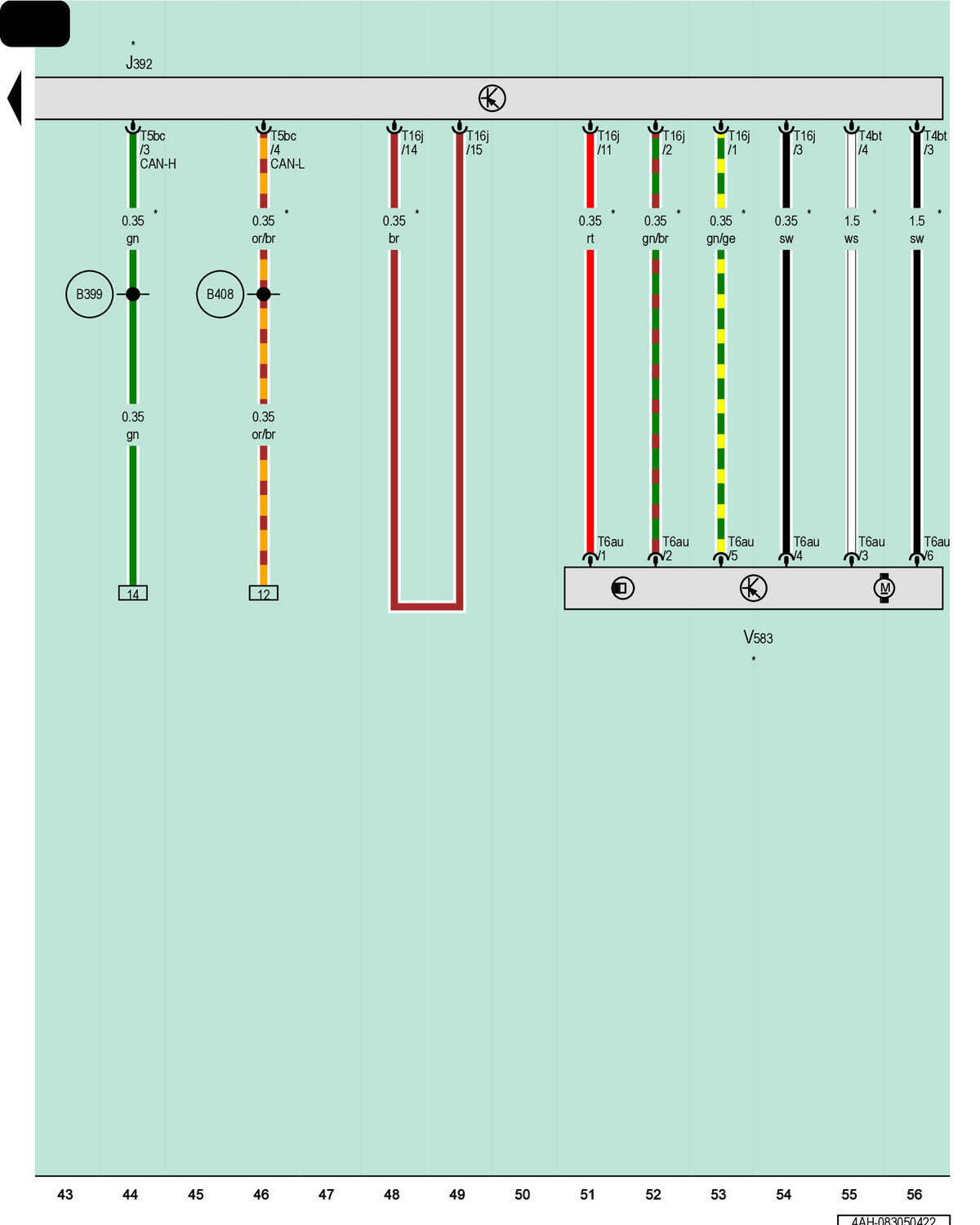

Rear Sunroof Control Module, Sunroof Shade Motor 2

Courtesy of AUDI OF AMERICA, LLC

J392

Rear Sunroof Control Module

T4bt

4-Pin Connector, Black

T5bc

5-Pin Connector, Black

T6au

6-Pin Connector, White

T16j

16-Pin Connector, Brown

V583

Sunroof Shade Motor 2

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Depending on Equipment
