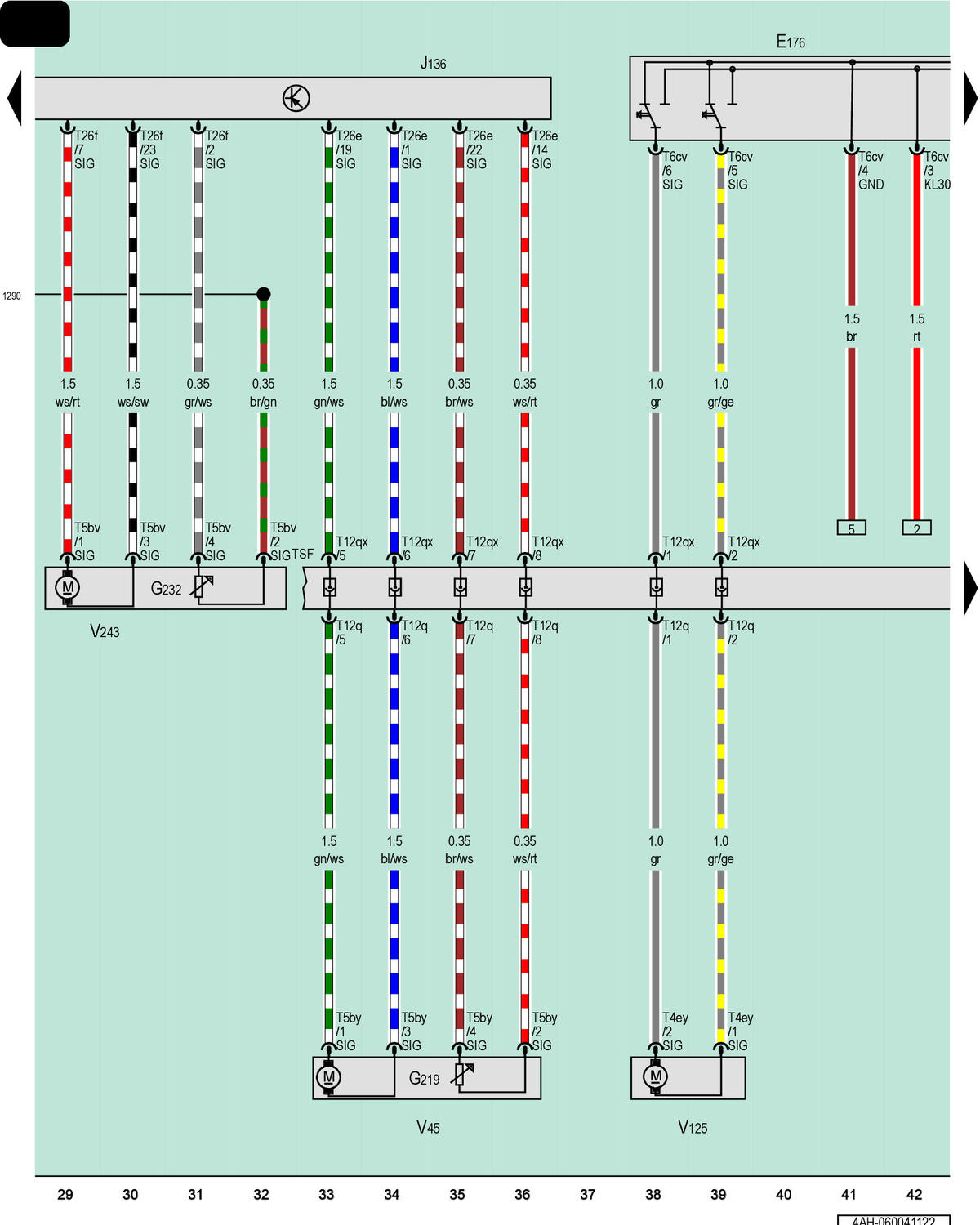

Driver Seat Lumbar Support Adjustment Switch, Memory Seat/Steering Column Adjustment Control Module, Driver Backrest Adjustment Motor, Driver Seat Angle Adjustment Motor
E176
Driver Seat Lumbar Support Adjustment Switch
G219
Driver Backrest Adjustment Sensor
G232
Driver Seat Tilt Adjustment Sensor
J136
Memory Seat/Steering Column Adjustment Control Module
T4ey
4-Pin Connector, Black
T5bv
5-Pin Connector, Brown
T5by
5-Pin Connector, Brown
T6cv
6-Pin Connector, Black
T12q
12-Pin Connector, Black
T12qx
12-Pin Connector, Black
T26e
26-Pin Connector, Blue
T26f
26-Pin Connector, White
TSF
Driver Seat Backrest Coupling Point
V45
Driver Backrest Adjustment Motor
V125
Driver Seat Lumbar Support Curvature Adjustment Motor
V243
Driver Seat Angle Adjustment Motor
1290
Ground Connection 1 (in Left Front Seat Wiring Harness)
