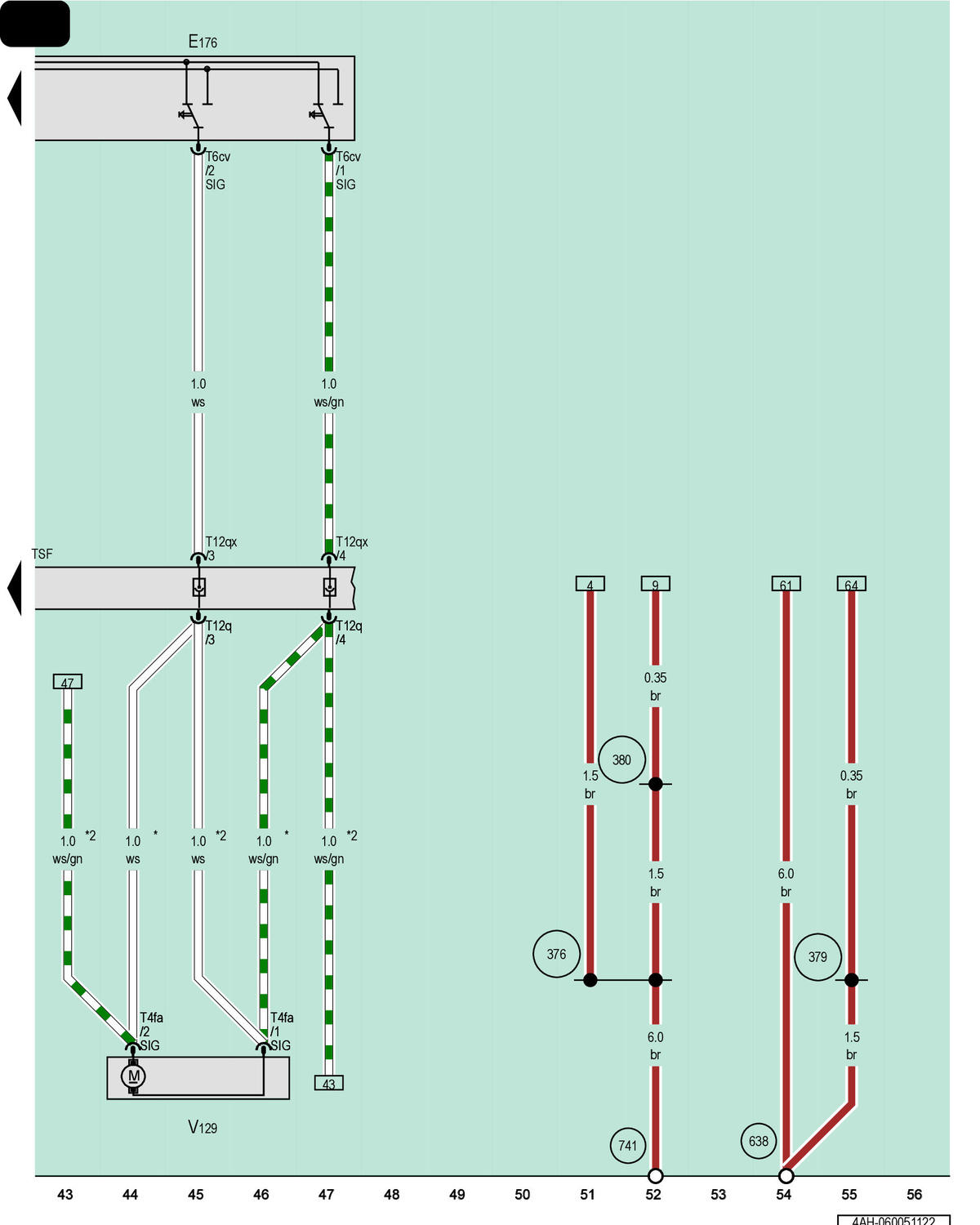

Driver Seat Lumbar Support Adjustment Switch, Driver Seat Lumbar Support Height Adjustment Motor

Courtesy of AUDI OF AMERICA, LLC

E176

Driver Seat Lumbar Support Adjustment Switch

T4fa

4-Pin Connector, Black

T6cv

6-Pin Connector, Black

T12q

12-Pin Connector, Black

T12qx

12-Pin Connector, Black

TSF

Driver Seat Backrest Coupling Point

V129

Driver Seat Lumbar Support Height Adjustment Motor

376

Ground Connection 11 (in Main Wiring Harness)

379

Ground Connection 14 (in Main Wiring Harness)

380

Ground Connection 15 (in Main Wiring Harness)

638

Ground Connection on Right A-Pillar

741

Ground Connection Under Left Front Seat

Omitted as a Running Change

Running Change
