Vehicle Electrical System Control Module

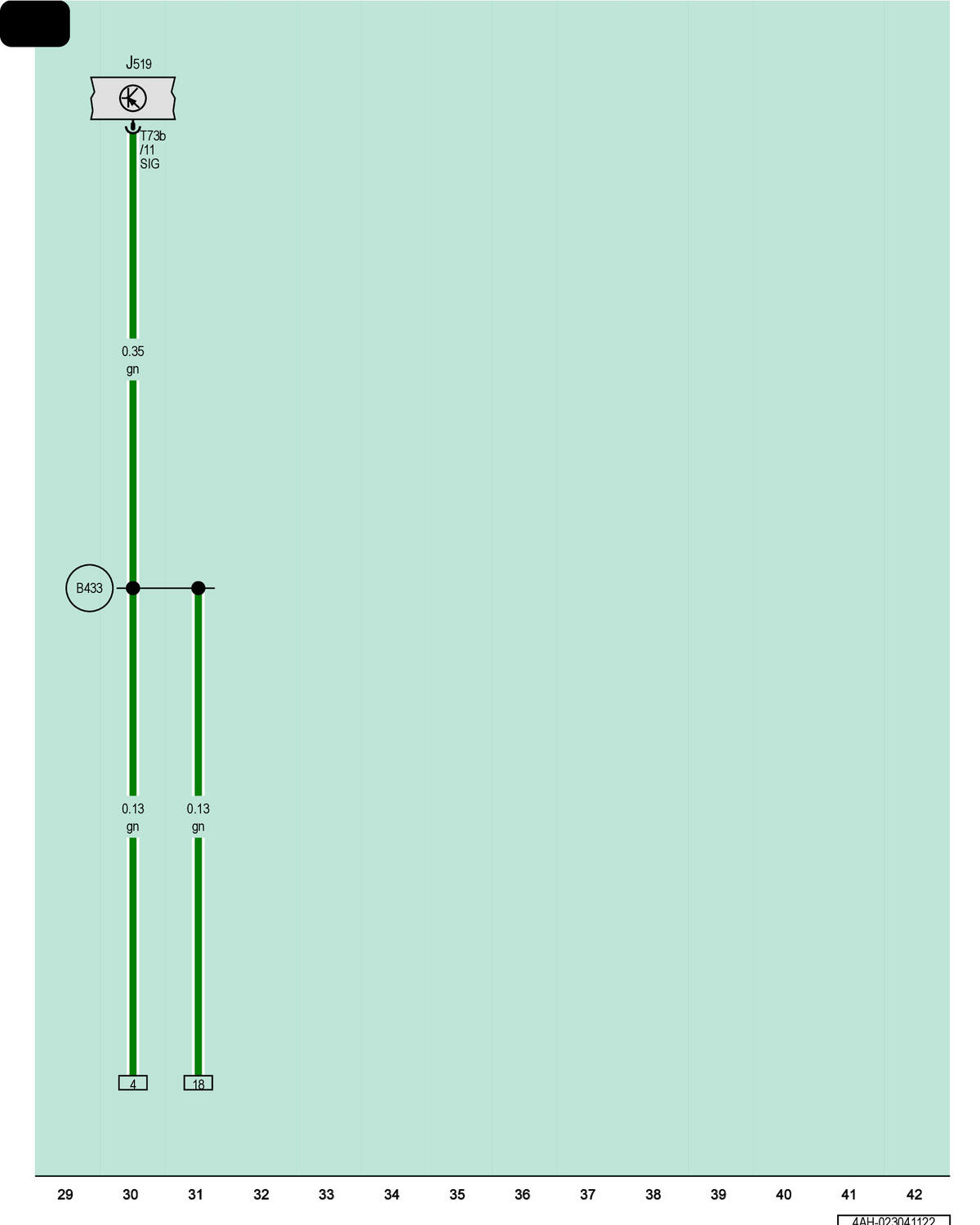

GWW4AH-023041122Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

T73b

73-Pin Connector, Black, Black

B433

Footwell Illumination Connection (in Main Wiring Harness)
