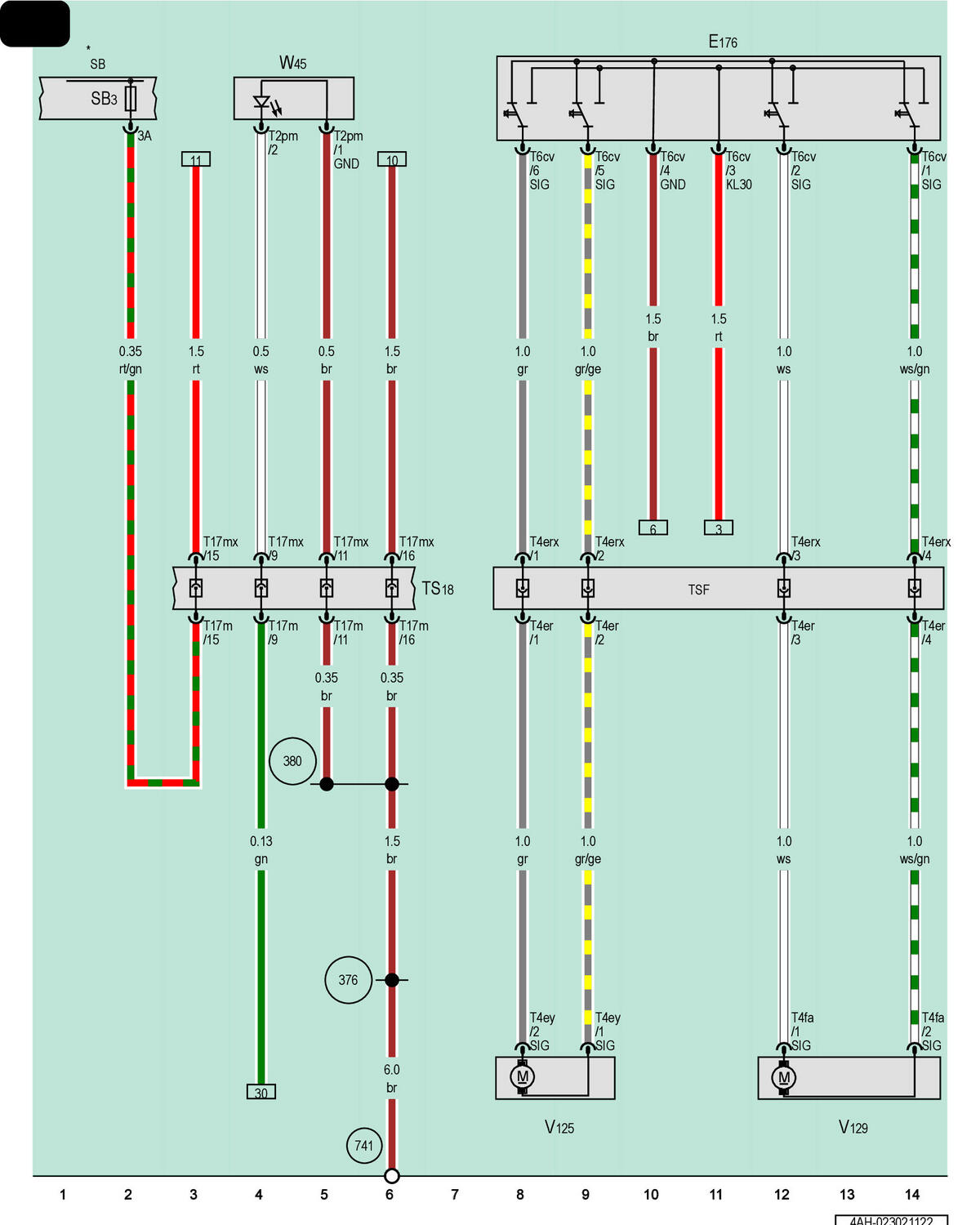

Driver Seat Lumbar Support Adjustment Switch, Driver Seat Lumbar Support Curvature Adjustment Motor, Driver Seat Lumbar Support Height Adjustment Motor, Left Rear FOOTWELL Lamp
E176
Driver Seat Lumbar Support Adjustment Switch
SB
Fuse Panel B
SB3
Fuse 3 (On Fuse Panel B)
T2pm
2-Pin Connector, Brown
T4er
4-Pin Connector, Black
T4erx
4-Pin Connector, Black
T4ey
4-Pin Connector, Black
T4fa
4-Pin Connector, Black
T6cv
6-Pin Connector, Black
T17m
17-Pin Connector, Red
T17mx
17-Pin Connector, Red
TS18
Driver Seat Coupling Point
TSF
Driver Seat Backrest Coupling Point
V125
Driver Seat Lumbar Support Curvature Adjustment Motor
V129
Driver Seat Lumbar Support Height Adjustment Motor
W45
Left Rear Footwell Lamp
376
Ground Connection 11 (in Main Wiring Harness)
380
Ground Connection 15 (in Main Wiring Harness)
741
Ground Connection Under Left Front Seat
*
Refer to Applicable Wiring Diagram for Fuse Positions
