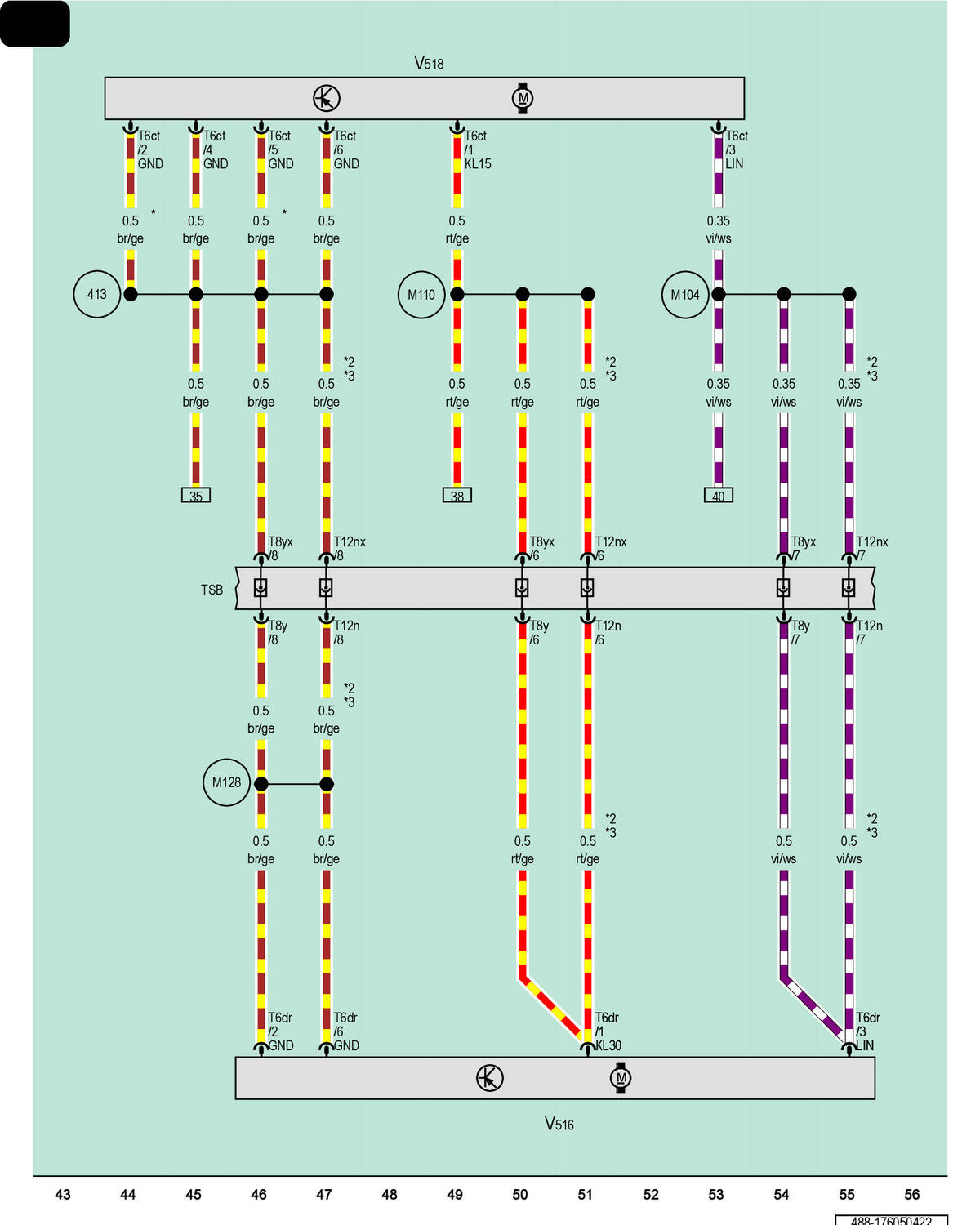

Right Front Seat Backrest Fan 1, Right Front Seat Cushion Fan 1

Courtesy of AUDI OF AMERICA, LLC

T6ct

6-Pin Connector, Black

T6dr

6-Pin Connector, Black

T8y

8-Pin Connector, Black

T8yx

8-Pin Connector, Black

T12n

12-Pin Connector, Black

T12nx

12-Pin Connector, Black

TSB

Front Passenger Seat Backrest Coupling Point

V516

Right Front Seat Backrest Fan 1

V518

Right Front Seat Cushion Fan 1

413

Ground Connection 4 (in Seat Adjustment Wiring Harness)

M104

LIN Bus Connection 1 (in Right Front Seat Wiring Harness)

M110

Connection 1 (30) (in Right Front Seat Wiring Harness)

M128

Ground Connection 1 (in Front Passenger Seat Backrest Wiring Harness)

*

The Color of the Wires Depends on Vehicle Equipment

*2

Driver Memory Seat

*3

For Vehicles with China Equipment
