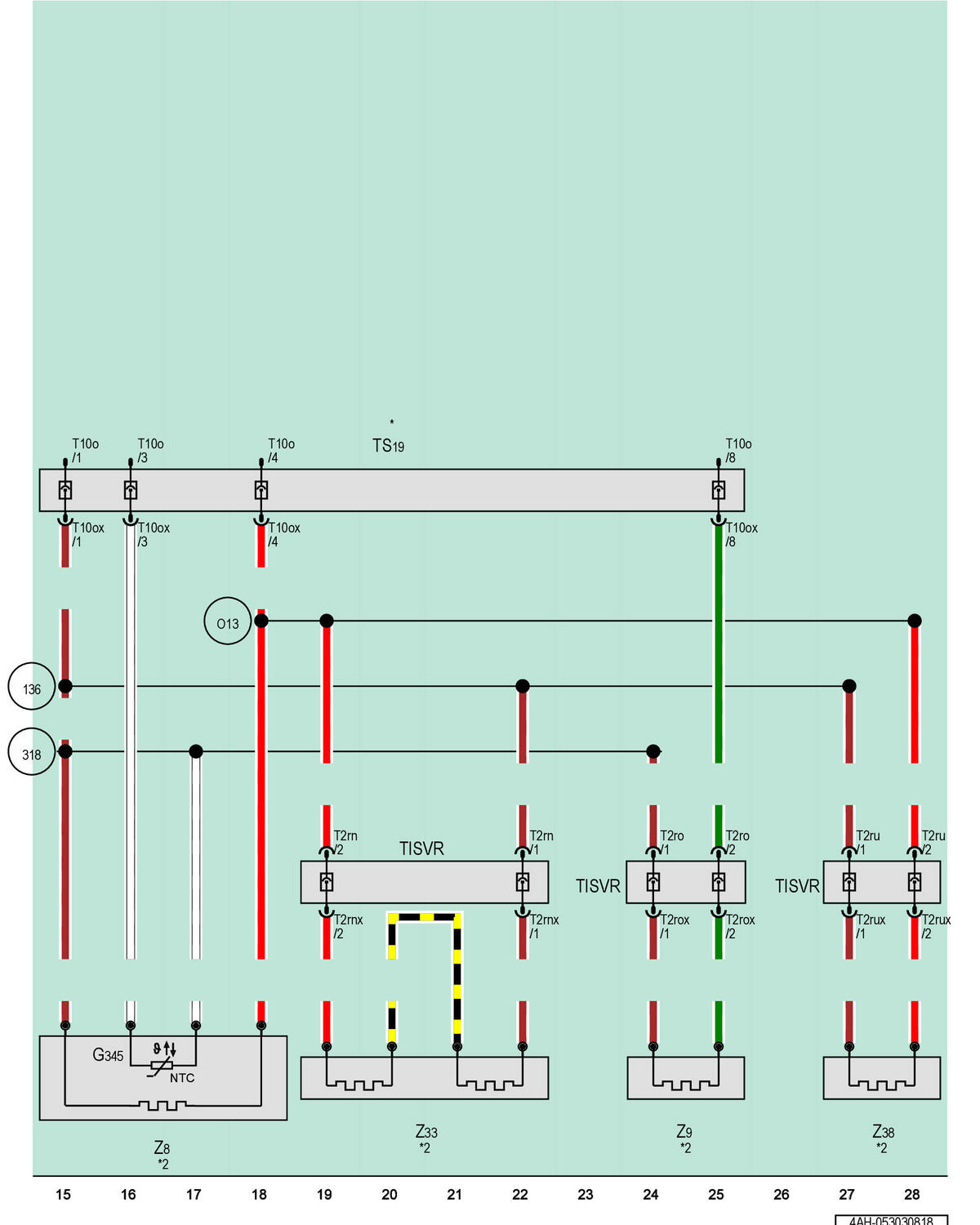

Front Passenger Seat Heating Element, Front Passenger Backrest Heating Element, Front Passenger Seat Bolster Heater, Heated Front Passenger Seat Extension

Courtesy of AUDI OF AMERICA, LLC

G345

Right Front Seat Temperature Sensor

T2rn

2-Pin Connector, Black

T2rnx

2-Pin Connector, Black

T2ro

2-Pin Connector, Black

T2rox

2-Pin Connector, Black

T2ru

2-Pin Connector, Black

T2rux

2-Pin Connector, Black

T10ox

10-Pin Connector, White

TISVR

Coupling Station in Right Front Seat

TS19

Front Passenger Seat Coupling Point

Z8

Front Passenger Seat Heating Element

Z9

Front Passenger Backrest Heating Element

Z33

Front Passenger Seat Bolster Heater

Z38

Heated Front Passenger Seat Extension

136

Ground Connection 2 (in Heated Seats Wiring Harness)

318

Ground Connection 4 (in Heated Seats Wiring Harness)

O13

Connection 2 (in Heated Seats Wiring Harness)

*

Refer to the Applicable Heated Seats Wiring Diagram

*2

Pre-Wired Component
