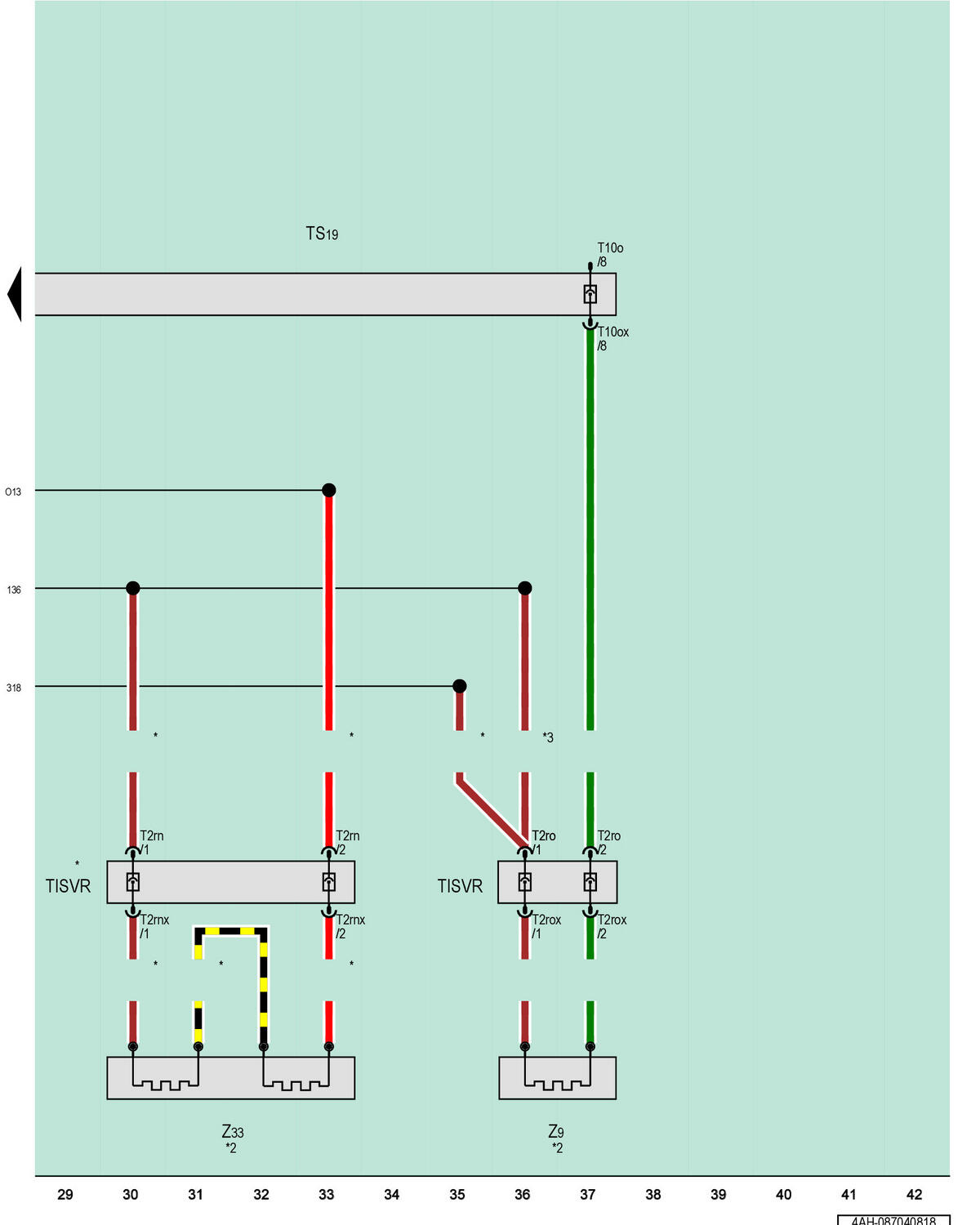

Front Passenger Backrest Heating Element, Front Passenger Seat Bolster Heater

Courtesy of AUDI OF AMERICA, LLC

T2rn

2-Pin Connector, Black

T2rnx

2-Pin Connector, Black

T2ro

2-Pin Connector, Black

T2rox

2-Pin Connector, Black

T10ox

10-Pin Connector, White

TISVR

Coupling Station in Right Front Seat

TS19

Front Passenger Seat Coupling Point

Front Passenger Backrest Heating Element

Z33

Front Passenger Seat Bolster Heater

136

Ground Connection 2 (in Heated Seats Wiring Harness)

318

Ground Connection 4 (in Heated Seats Wiring Harness)

O13

Connection 2 (in Heated Seats Wiring Harness)

For Vehicles with Seat Ventilation

Pre-Wired Component

For Vehicles Without Seat Ventilation
