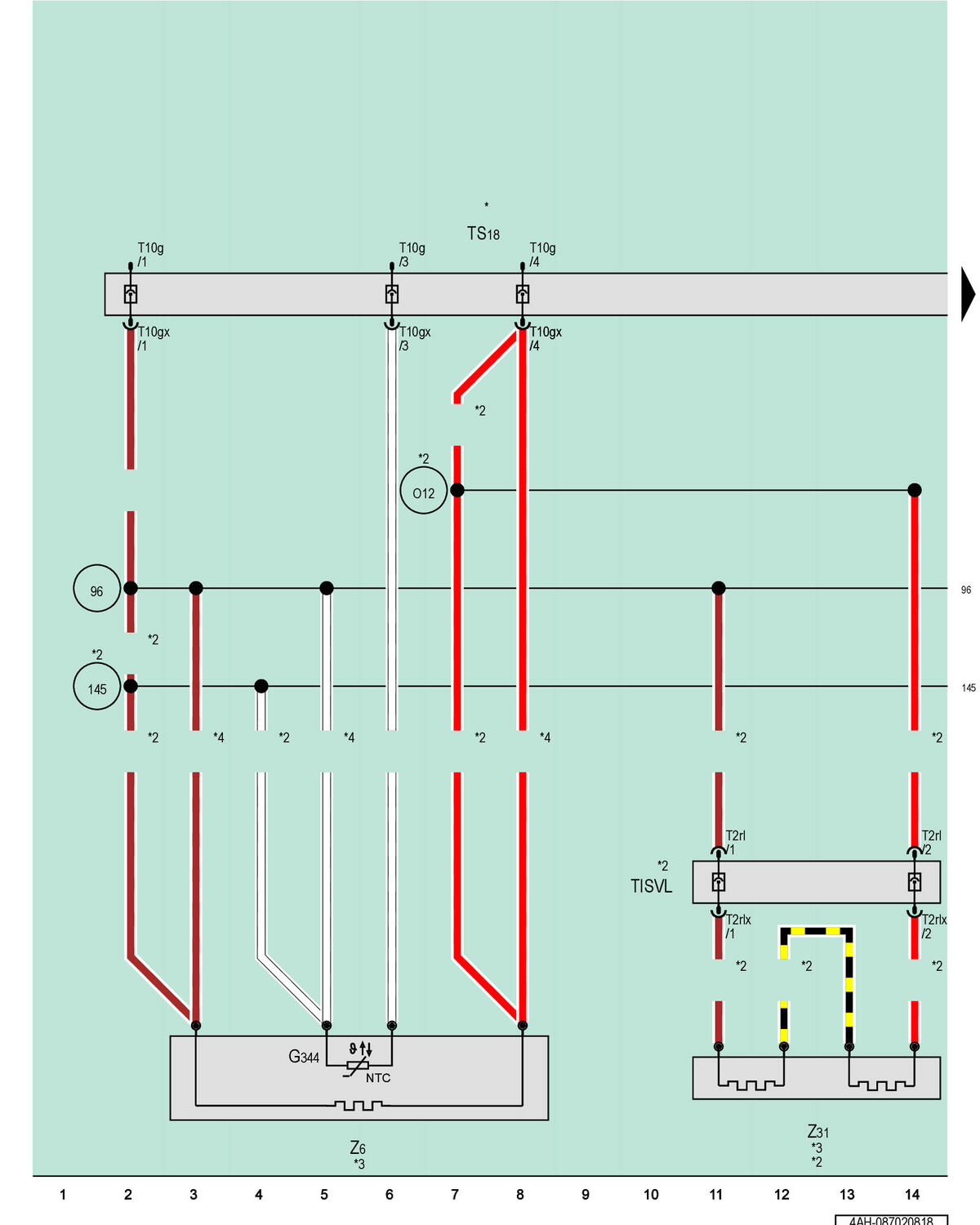

Driver Seat Heating Element, Driver Seat Bolster Heater

Courtesy of AUDI OF AMERICA, LLC

G344

Left Front Seat Temperature Sensor

T2rl

2-Pin Connector, Black

T2rlx

2-Pin Connector, Black

T10gx

10-Pin Connector, White

TISVL

Coupling Station in Left Front Seat

TS18

Driver Seat Coupling Point

Z6

Driver Seat Heating Element

Z31

Driver Seat Bolster Heater

96

Ground Connection 1 (in Heated Seats Wiring Harness)

145

Ground Connection 3 (in Heated Seats Wiring Harness)

O12

Connection 1 (in Heated Seats Wiring Harness)

*

Refer to the Applicable Heated Seats Wiring Diagram

*2

For Vehicles with Seat Ventilation

*3

Pre-Wired Component

*4

For Vehicles Without Seat Ventilation
