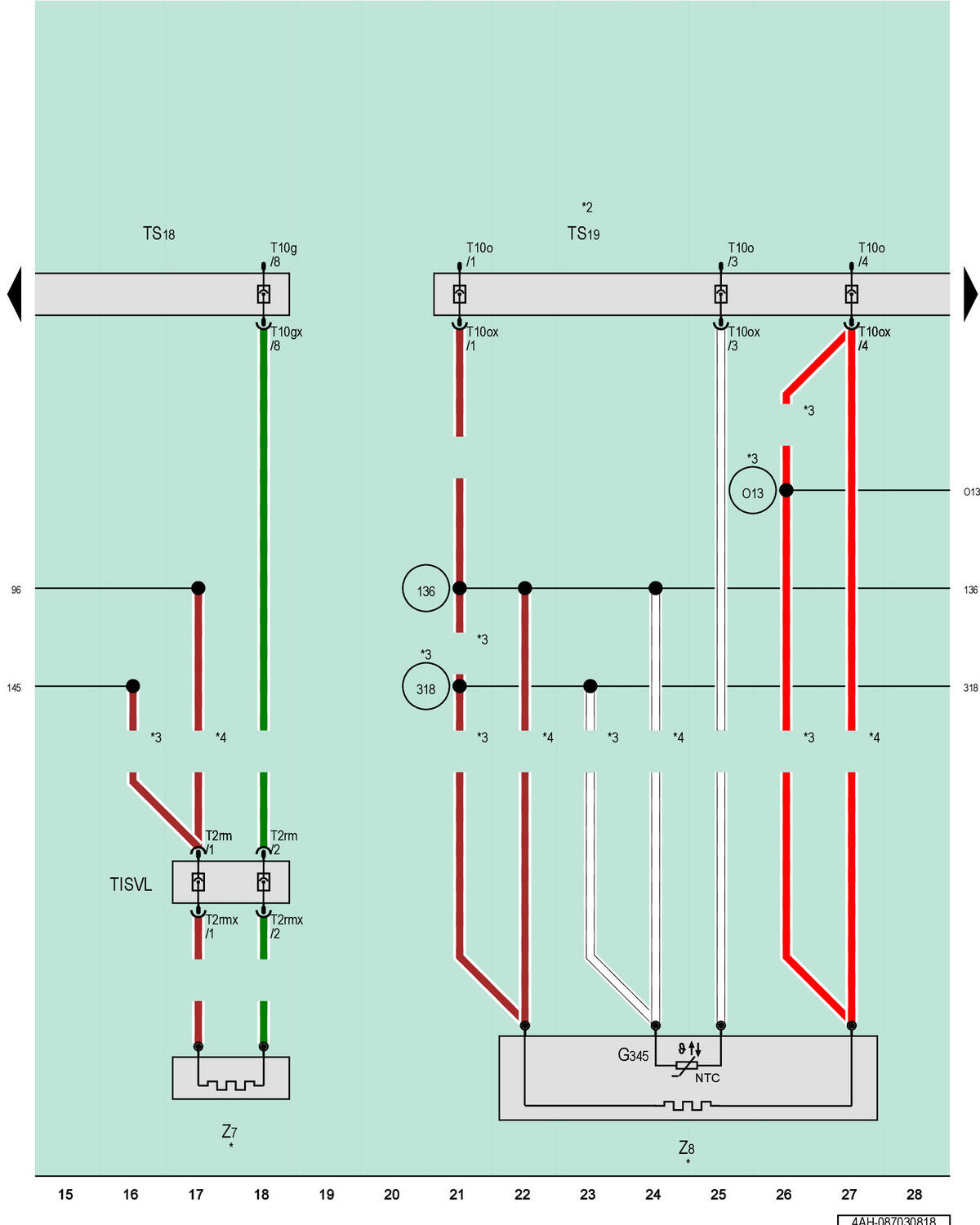

Driver Backrest Heating Element, Front Passenger Seat Heating Element

Courtesy of AUDI OF AMERICA, LLC

G345

Right Front Seat Temperature Sensor

T2rm

2-Pin Connector, Black

T2rmx

2-Pin Connector, Black

T10gx

10-Pin Connector, White

T10ox

10-Pin Connector, White

TISVL

Coupling Station in Left Front Seat

TS18

Driver Seat Coupling Point

TS19

Front Passenger Seat Coupling Point

Z7

Driver Backrest Heating Element

Z8

Front Passenger Seat Heating Element

96

Ground Connection 1 (in Heated Seats Wiring Harness)

136

Ground Connection 2 (in Heated Seats Wiring Harness)

145

Ground Connection 3 (in Heated Seats Wiring Harness)

318

Ground Connection 4 (in Heated Seats Wiring Harness)

O13

Connection 2 (in Heated Seats Wiring Harness)

*

Pre-Wired Component

*2

Refer to the Applicable Heated Seats Wiring Diagram

*3

For Vehicles with Seat Ventilation

*4

For Vehicles Without Seat Ventilation
