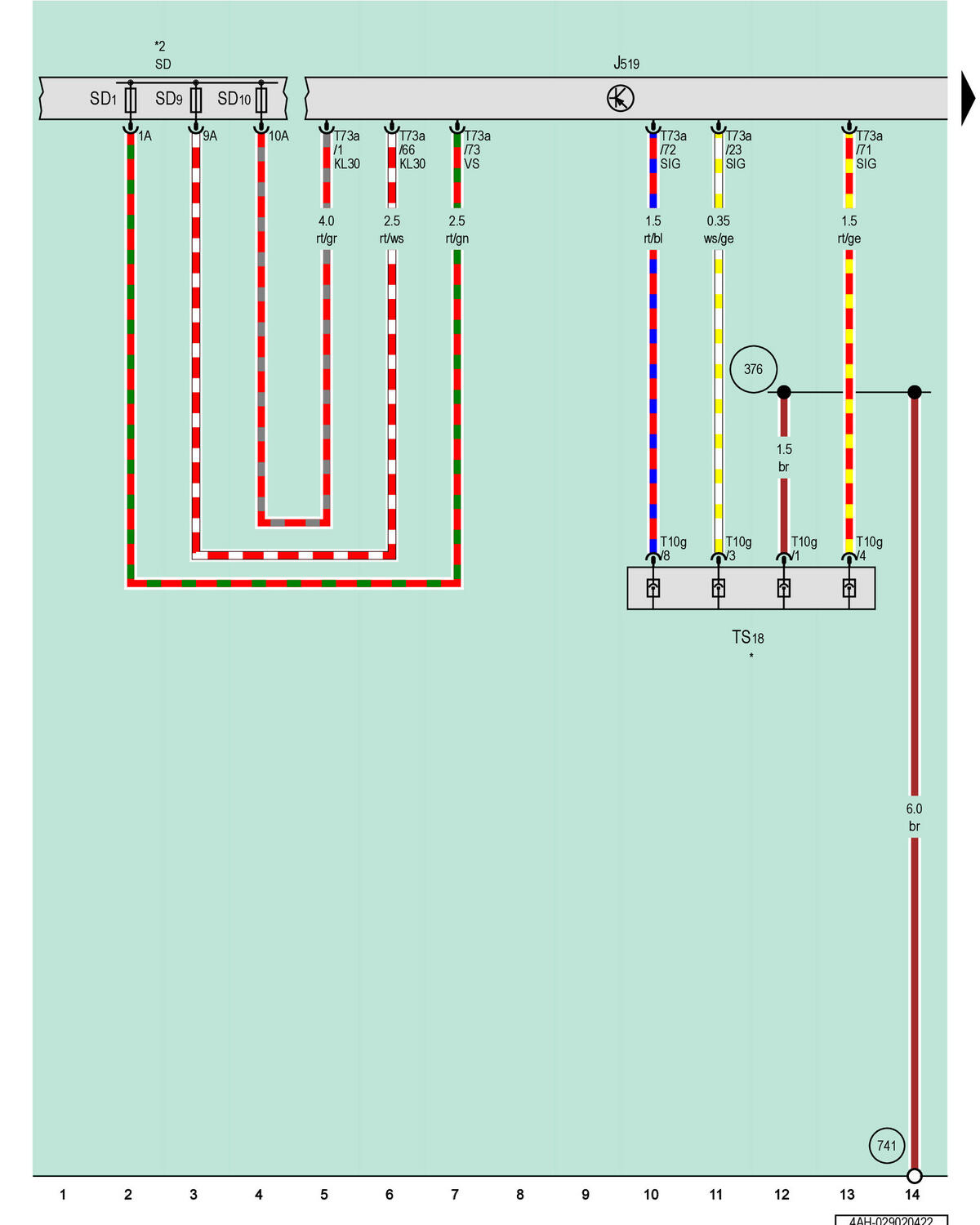

Vehicle Electrical System Control Module
J519
Vehicle Electrical System Control Module
SD
Fuse Panel D
SD1
Fuse 1 (On Fuse Panel D)
SD9
Fuse 9 (On Fuse Panel D)
SD10
Fuse 10 (On Fuse Panel D)
T10g
10-Pin Connector, White
T73a
73-Pin Connector, Black, Naturally Cloudy
TS18
Driver Seat Coupling Point
376
Ground Connection 11 (in Main Wiring Harness)
741
Ground Connection Under Left Front Seat
*
Refer to the Applicable Heated Seats Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuse Positions

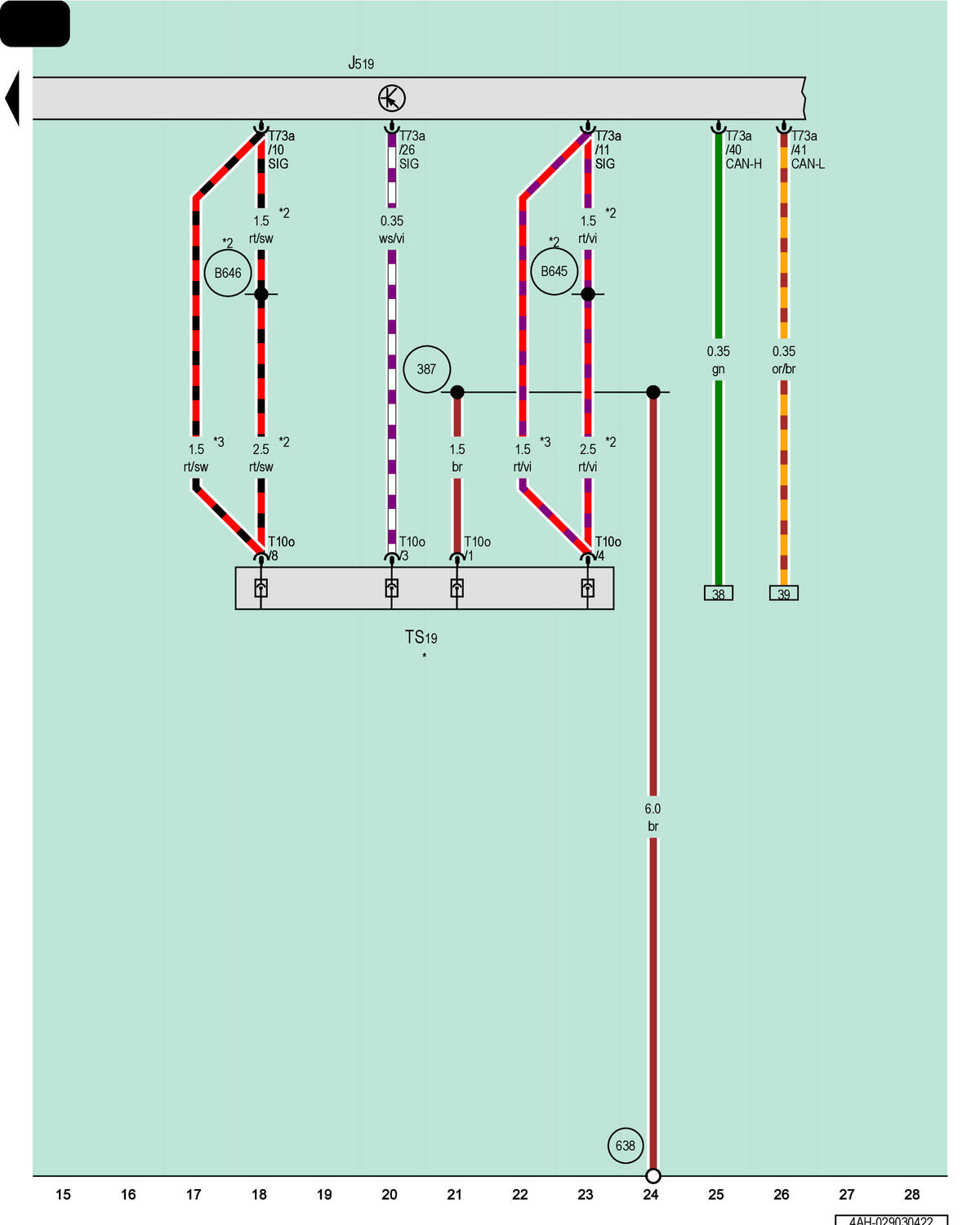

J519
Vehicle Electrical System Control Module
T10o
10-Pin Connector, White
T73a
73-Pin Connector, Black, Naturally Cloudy
TS19
Front Passenger Seat Coupling Point
387
Ground Connection 22 (in Main Wiring Harness)
638
Ground Connection on Right A-Pillar
B645
Heated Seat Connection 2 (in Main Wiring Harness)
B646
Heated Seat Connection 3 (in Main Wiring Harness)
*
Refer to the Applicable Heated Seats Wiring Diagram
*2
Omitted as a Running Change
*3
Running Change
