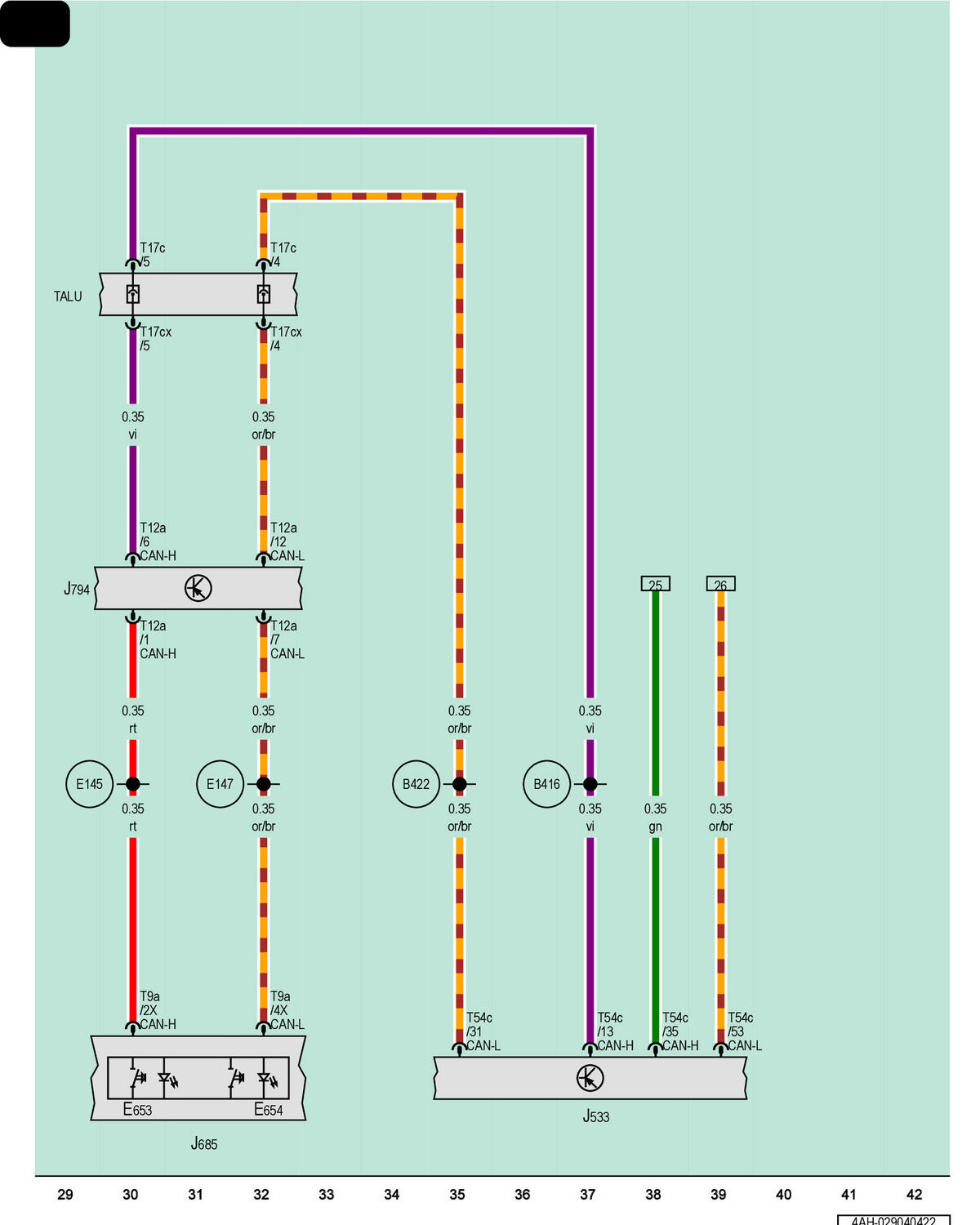

Data Bus On Board Diagnostic Interface, Front Information Display Control Head, Information Electronics Control Module 1

Courtesy of AUDI OF AMERICA, LLC

E653

Left Seat Heating Button

E654

Right Seat Heating Button

J533

Data Bus on Board Diagnostic Interface

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

T9a

9-Pin Connector, Black

T12a

12-Pin Connector, Gray

T17c

17-Pin Connector, Red

T17cx

17-Pin Connector, Red

T54c

54-Pin Connector, Black

TALU

Coupling Point on Left A-Pillar, Bottom

B416

Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)

B422

Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)

E145

Connection 1 (CAN Bus Information Electronics Control Module 1, High)

E147

Connection 1 (CAN Bus Information Electronics Control Module 1, Low)
