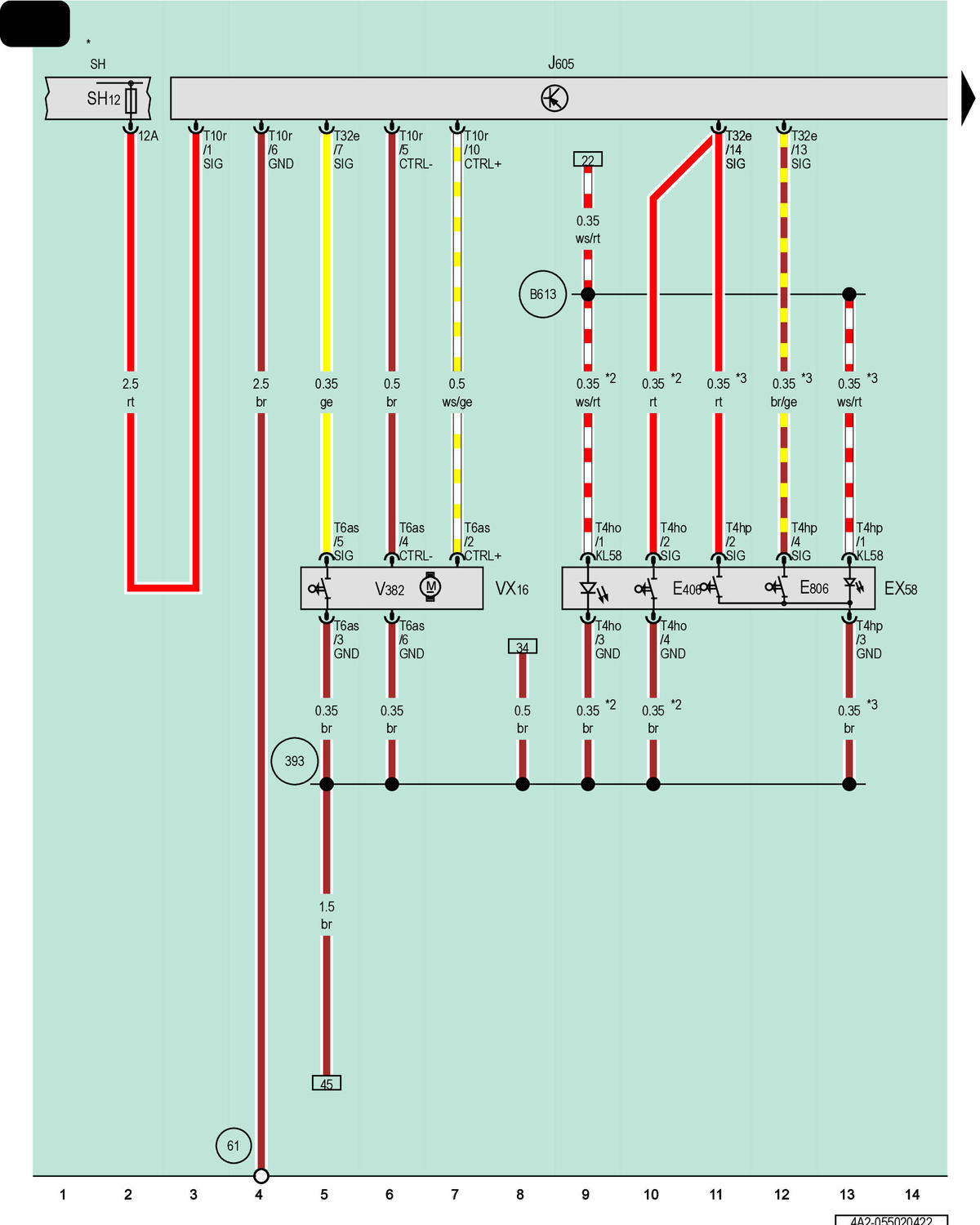

Rear Lid Control Head, Rear Lid Lock Button In Luggage Compartment, Rear Lid Control Module, Rear Lid Closing Aid
EX58
Rear Lid Control Head
E406
Rear Lid Lock Button in Luggage Compartment
E806
Locking Mechanism Button in Rear Lid
J605
Rear Lid Control Module
SH
Fuse Panel H
SH12
Fuse 12 on Fuse Panel H
T4ho
4-Pin Connector, Black
T4hp
4-Pin Connector, Brown
T6as
6-Pin Connector, Black
T10r
10-Pin Connector, Black
T32e
32-Pin Connector, Naturally Cloudy, Black
VX16
Rear Lid Closing Aid
V382
Rear Lid Closing Aid Motor
61
Ground Connection on Left C-Pillar
393
Ground Connection 28 (in Main Wiring Harness)
B613
Connection 41 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles Without Access/Start Authorization System
*3
For Vehicles with Access/Start Authorization System
