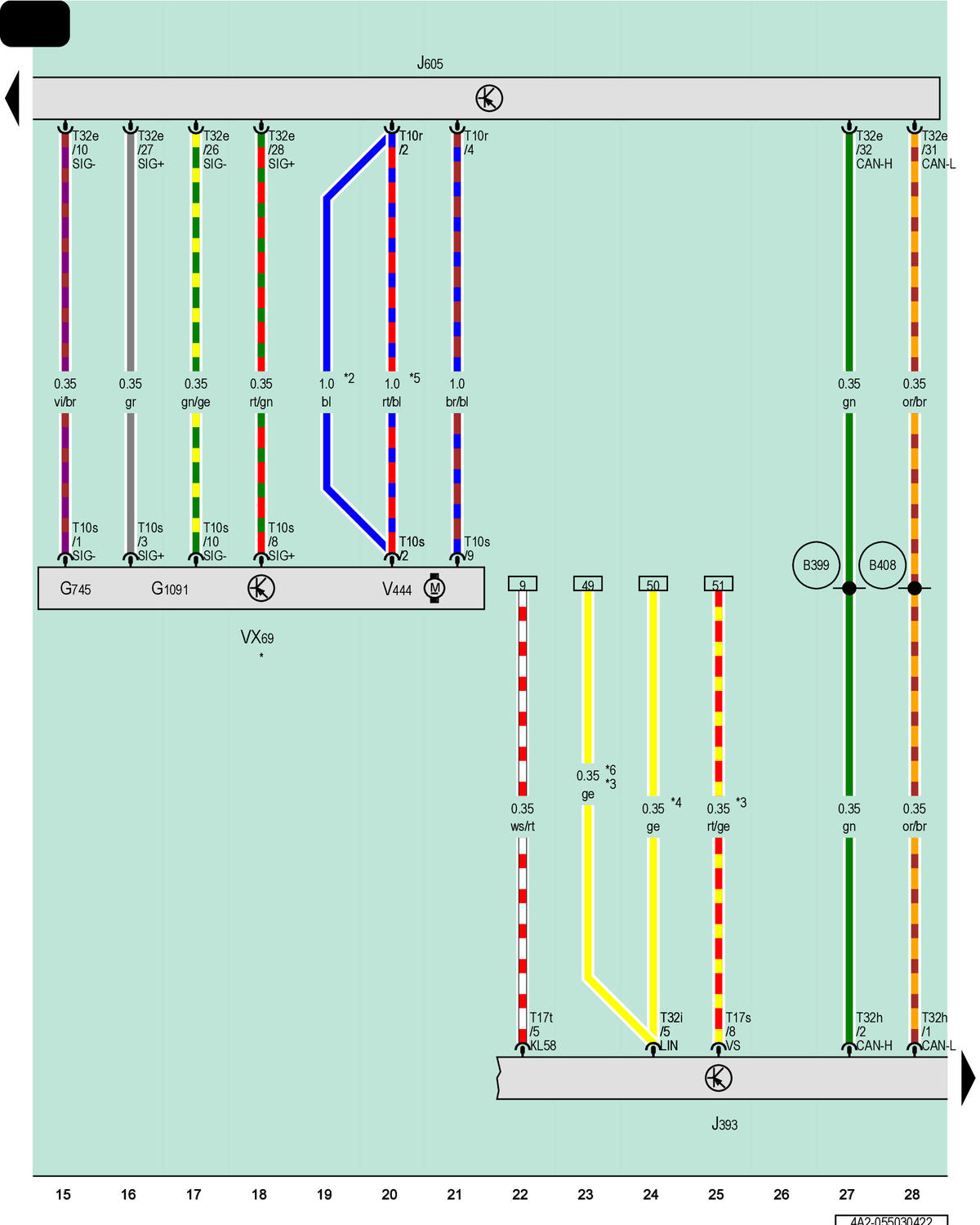

Comfort System Central Control Module, Rear Lid Control Module, Rear Lid Drive Unit, Rear Lid Motor 1

Courtesy of AUDI OF AMERICA, LLC

G745

Sensor in Rear Lid Motor 1

G1091

Sensor 2 in Rear Lid Motor 1

J393

Comfort System Central Control Module

J605

Rear Lid Control Module

T10r

10-Pin Connector, Black

T10s

10-Pin Connector, Black

T17s

17-Pin Connector, Black

T17t

17-Pin Connector, Brown

T32e

32-Pin Connector, Naturally Cloudy, Black

T32h

32-Pin Connector, Blue

T32i

32-Pin Connector, Black, Naturally Cloudy

VX69

Rear Lid Drive Unit

V444

Rear Lid Motor 1

B399

Comfort System CAN Bus High Connection 3 (in Main Wiring Harness)

B408

Comfort System CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Pre-Wired Component

*2

Omitted as a Running Change

*3

For Vehicles with Sensor-Controlled Power Rear Lid Opening

*4

Through November 2021

*5

Running Change

*6

From November 2021
