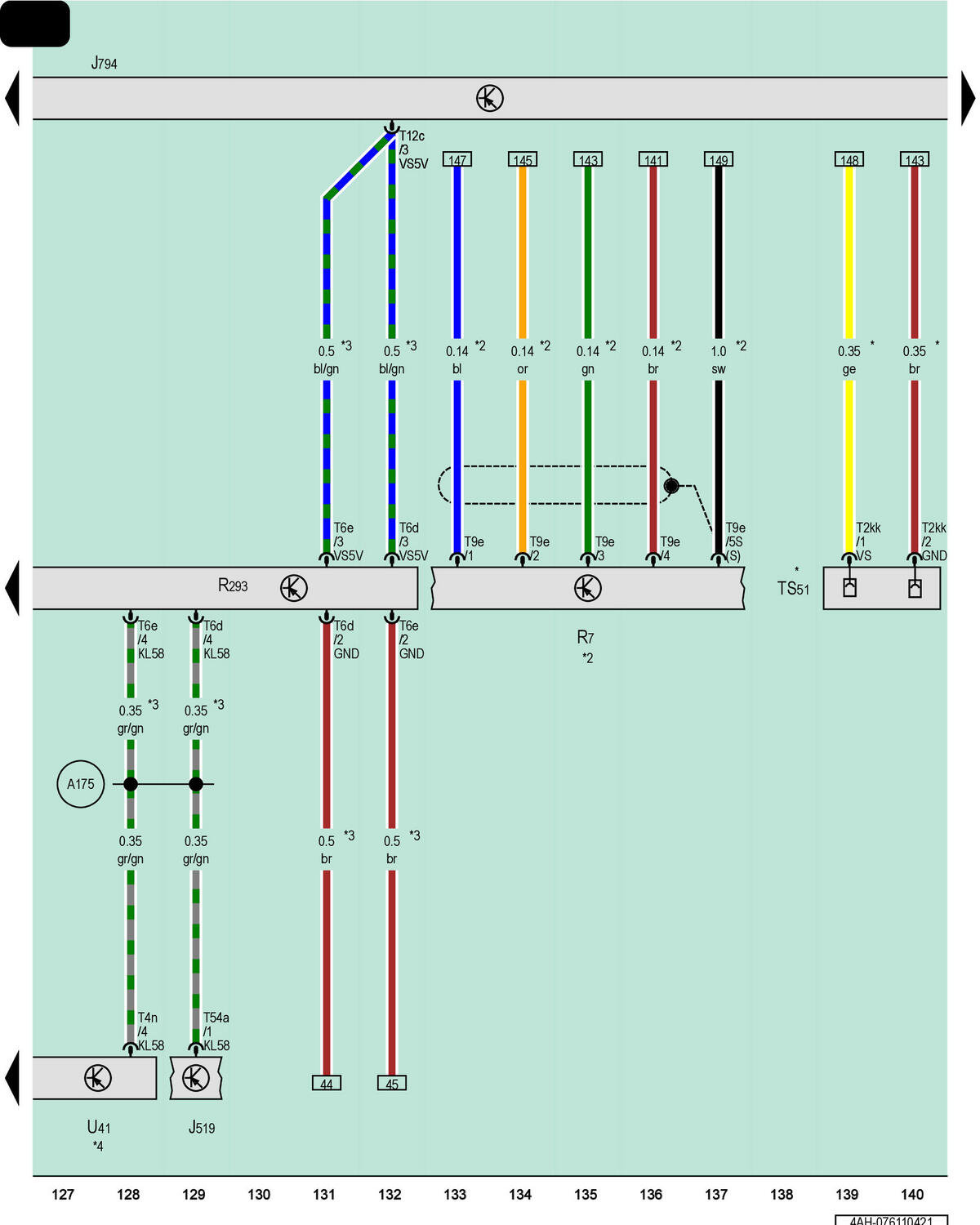

Vehicle Electrical System Control Module, Information Electronics Control Module 1, DVD Player, USB Distributor, Toll Registration Sensor Coupling Point, USB Connection 1

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J794

Information Electronics Control Module 1

DVD Player

R293

USB Distributor

T2kk

2-Pin Connector, Black

T4n

4-Pin Connector, Red

T6d

6-Pin Connector, Brown

T6e

6-Pin Connector, Black

T9e

9-Pin Connector, Blue

T12c

12-Pin Connector, Green

T54a

54-Pin Connector, Black

TS51

Toll Registration Sensor Coupling Point, Behind the Glove Compartment

U41

USB Connection 1

A175

Connection 58s (in Instrument Panel Wiring Harness)

For Vehicles with Korea Equipment

For Vehicles with DVD Player

Depending on Equipment

For Vehicles with External Audio Source Connection - Audi Music Interface
