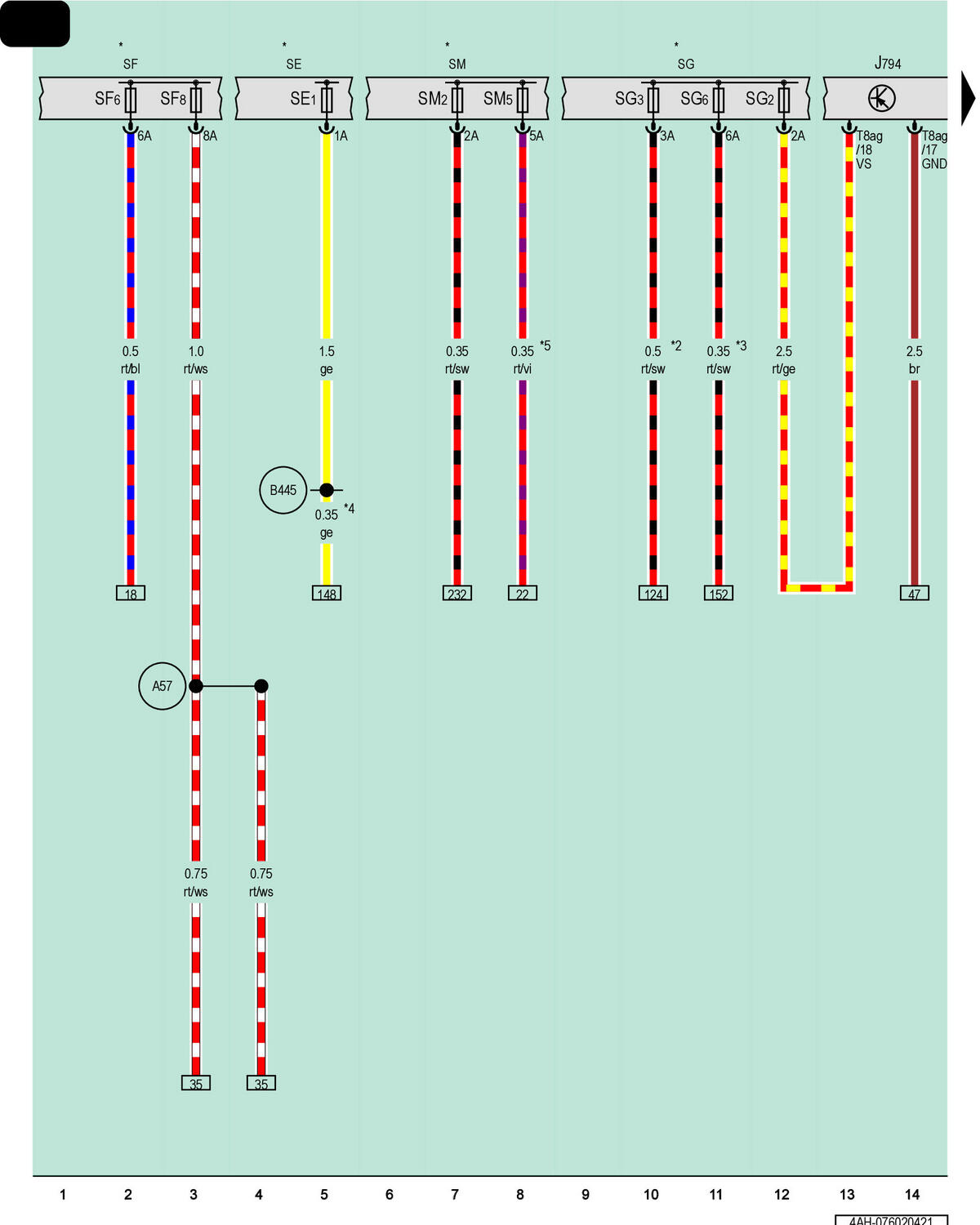

Information Electronics Control Module 1
J794
Information Electronics Control Module 1
SE
Fuse Panel E
SE1
Fuse 1 on Fuse Panel E
SF
Fuse Panel F
SG
Fuse Panel G
SG2
Fuse 2 on Fuse Panel G
SF6
Fuse 6 (On Fuse Panel F)
SF8
Fuse 8 (On Fuse Panel F)
SM
Fuse Panel M
SM2
Fuse 2 on Fuse Panel M
SG3
Fuse 3 on Fuse Panel G
SM5
Fuse 5 on Fuse Panel M
SG6
Fuse 6 on Fuse Panel G
T8ag
8-Pin Connector, Black
A57
Positive Connection 3 (30) (in Instrument Panel Wiring Harness)
B445
OBD Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
For Vehicles with External Audio Source Connection - Audi Music Interface
*3
For Vehicles with Japan Equipment
*4
For Vehicles with Korea Equipment
*5
For Vehicles with a Removable Radio Controller

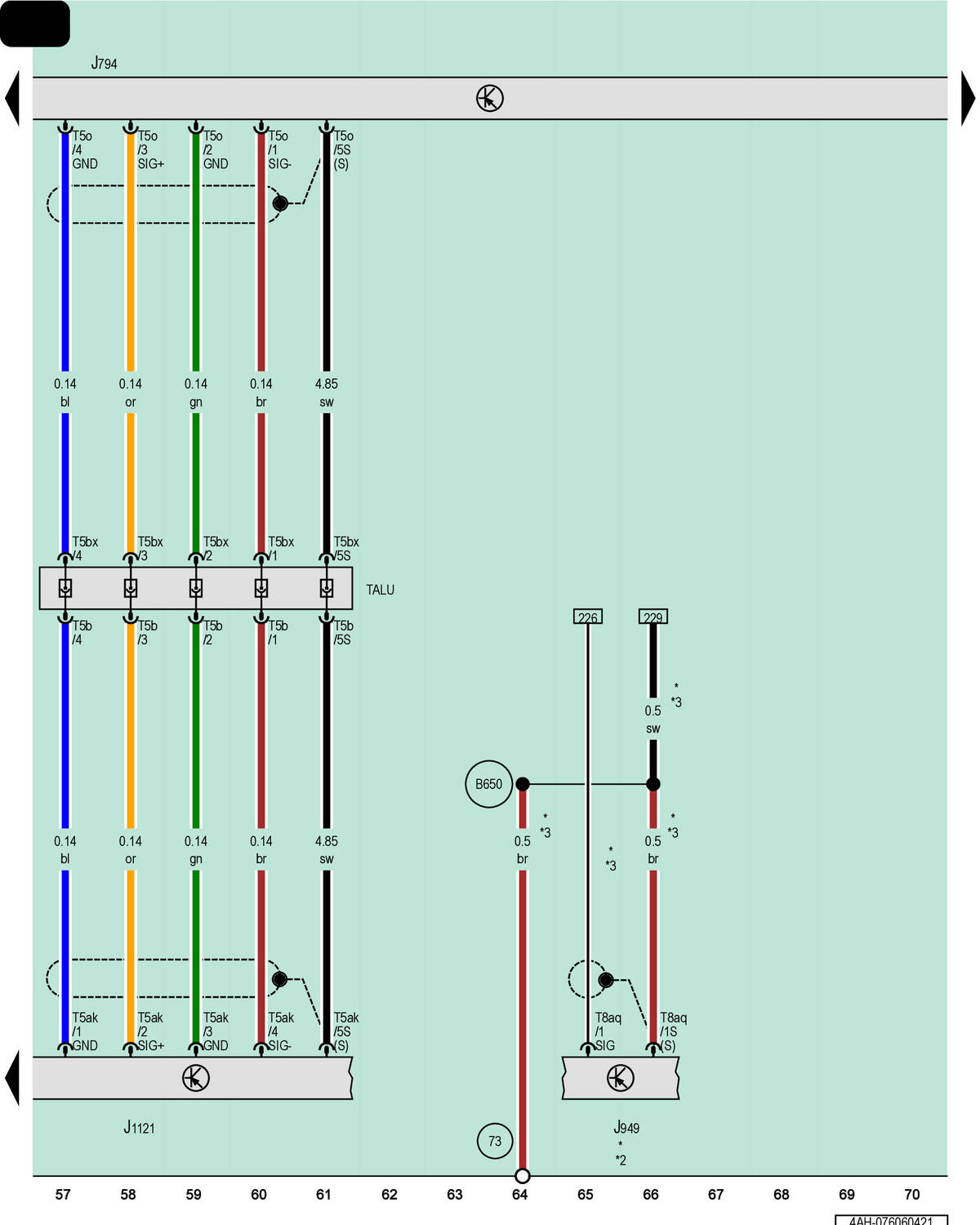

J794
Information Electronics Control Module 1
J949
Control Module for Emergency Call Module and Communication Unit
J1121
Driver Assistance Systems Control Module
T5ak
5-Pin Connector, Black
T5b
5-Pin Connector, White
T5bx
5-Pin Connector, White
T5o
5-Pin Connector, Green
T8aq
8-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
73
Ground Connection on Rear Roof Bow
B650
Connection 8 (in Interior Wiring Harness)
*
For Vehicles with Emergency Call Module
*2
Refer to Applicable Wiring Diagram
*3
Depending on Equipment

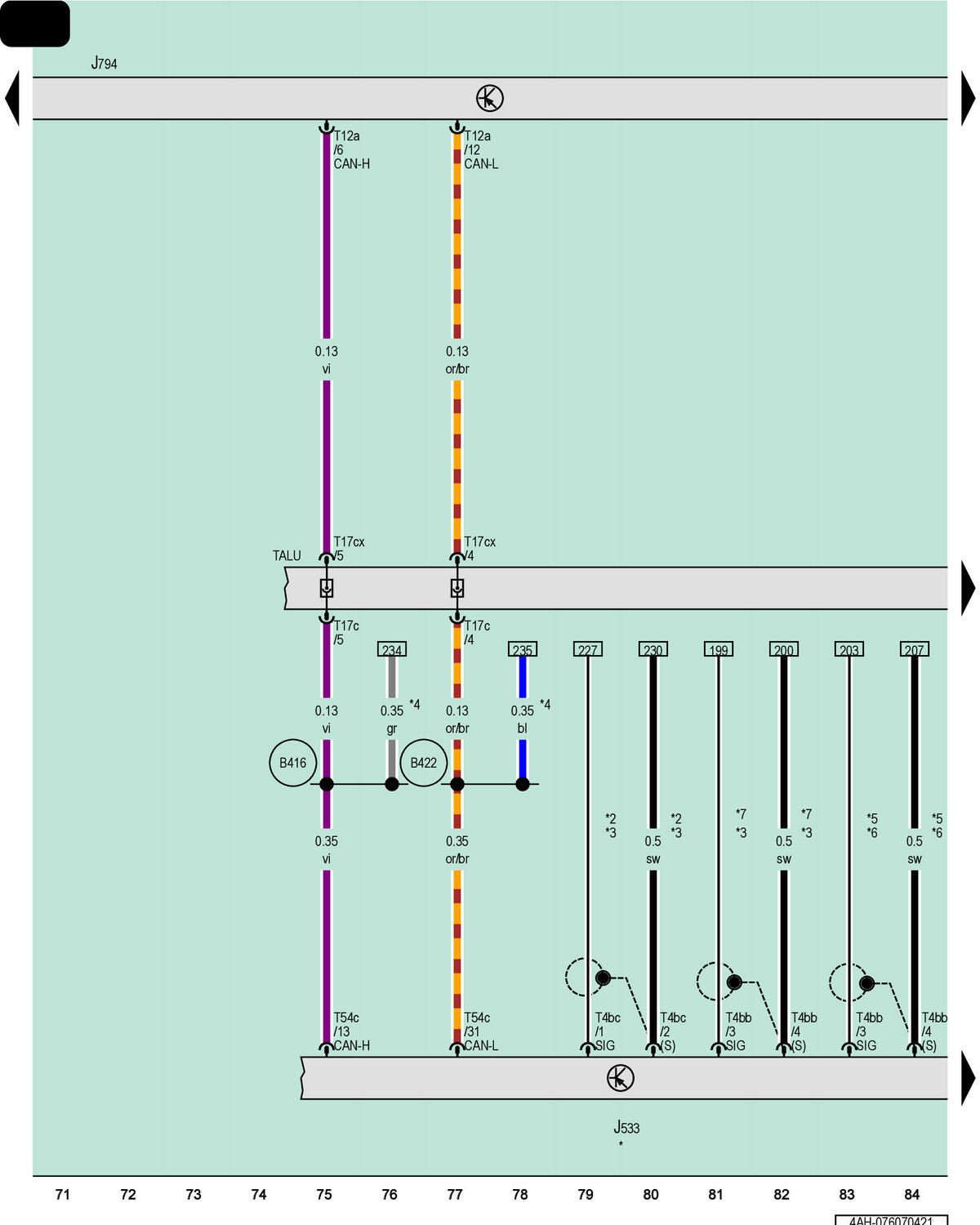

J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
T4bb
4-Pin Connector, Pink
T4bc
4-Pin Connector, Purple
T12a
12-Pin Connector, Gray
T17c
17-Pin Connector, Red
T17cx
17-Pin Connector, Red
T54c
54-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
B416
Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)
B422
Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram
*2
For Vehicles with Emergency Call Module
*3
Depending on Equipment
*4
Optional Equipment
*5
For Vehicles with Russia Equipment
*6
For Vehicles Without a Navigation System
*7
For Vehicles with Vehicle Positioning System

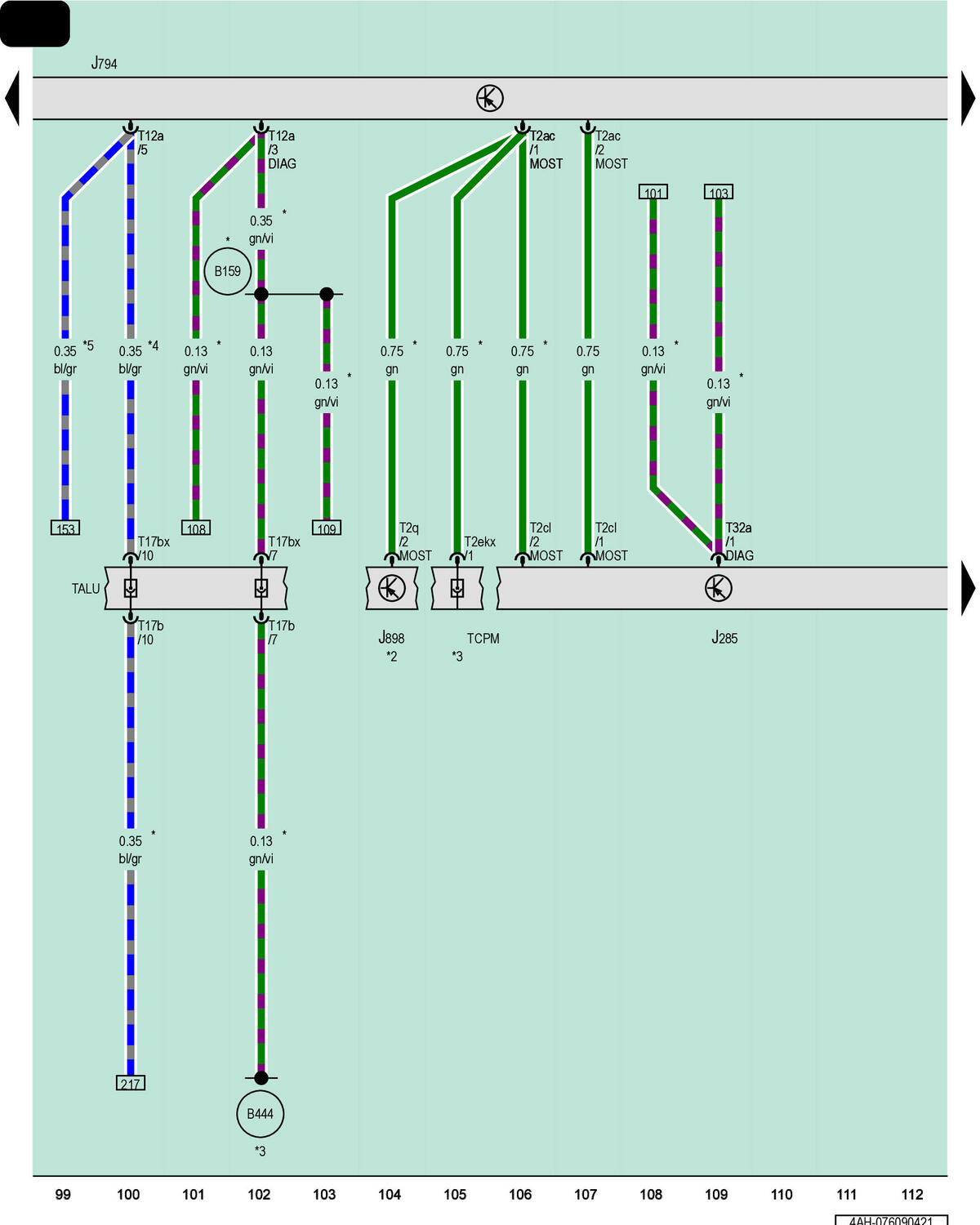

J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
T2ac
2-Pin Connector, Black
T2cl
2-Pin Connector, Black
T2ekx
2-Pin Connector, Black
T2q
2-Pin Connector, Black
T12a
12-Pin Connector, Gray
T17b
17-Pin Connector, Blue
T17bx
17-Pin Connector, Blue
T32a
32-Pin Connector, Gray
TALU
Coupling Point on Left A-Pillar, Bottom
TCPM
Coupling Point on Instrument Panel, Center
B159
Diagnostic Connection (in Interior Wiring Harness)
B444
OBD Connection 1 (in Main Wiring Harness)
*
Depending on Equipment
*2
For Vehicles with Windshield Projection
*3
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*4
For Vehicles with Cell Phone/Telephone
*5
For Vehicles with Japan Equipment

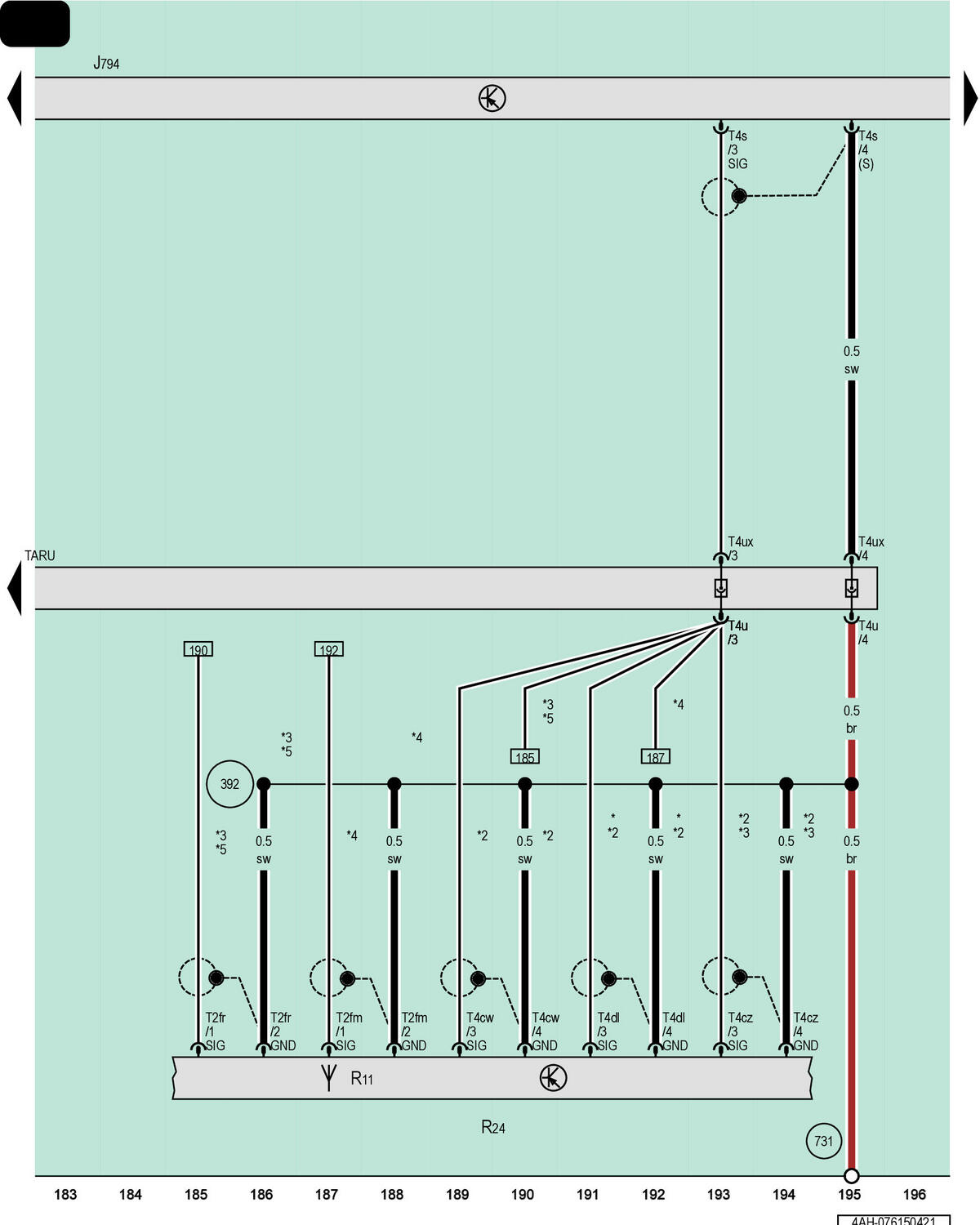

J794
Information Electronics Control Module 1
R11
Antenna
R24
Antenna Amplifier
T2fm
2-Pin Connector, White
T2fr
2-Pin Connector, Green
T4cw
4-Pin Connector, White
T4cz
4-Pin Connector, Green
T4dl
4-Pin Connector, Pink
T4s
4-Pin Connector, White
T4u
4-Pin Connector, White
T4ux
4-Pin Connector, White
TARU
Coupling Point on Right A-Pillar, Bottom
392
Ground Connection 27 (in Main Wiring Harness)
731
Ground Connection 2 on Right Rear Wheel Housing
*
For Vehicles with Japan Equipment
*2
For Vehicles with TV Tuner
*3
For Vehicles with Digital Radio
*4
Depending on Equipment
*5
For Vehicles Without TV Reception

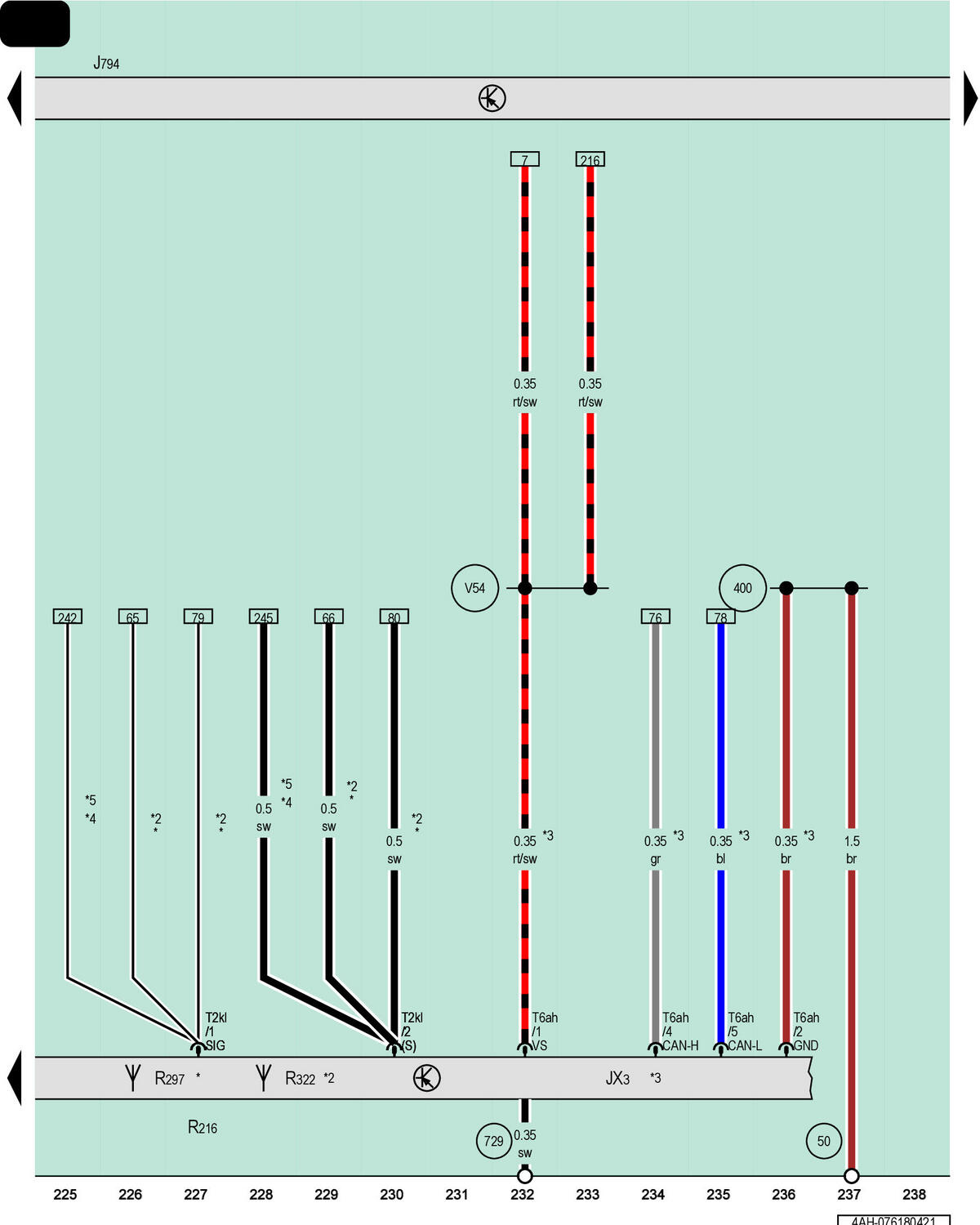

JX3
Roof Antenna Control Module
J794
Information Electronics Control Module 1
R216
Roof Antenna
R297
LTE Antenna 1
R322
Emergency Call Module Antenna 2
T2kl
2-Pin Connector, Purple
T6ah
6-Pin Connector, Black
50
Ground Connection in Luggage Compartment, Left
400
Ground Connection 35 (in Main Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
V54
Telephone Connection 1 (in Main Wiring Harness)
*
Depending on Equipment
*2
For Vehicles with Emergency Call Module
*3
Optional Equipment
*4
For Vehicles with Mobile Online Services
*5
For Vehicles Without Emergency Call Module
