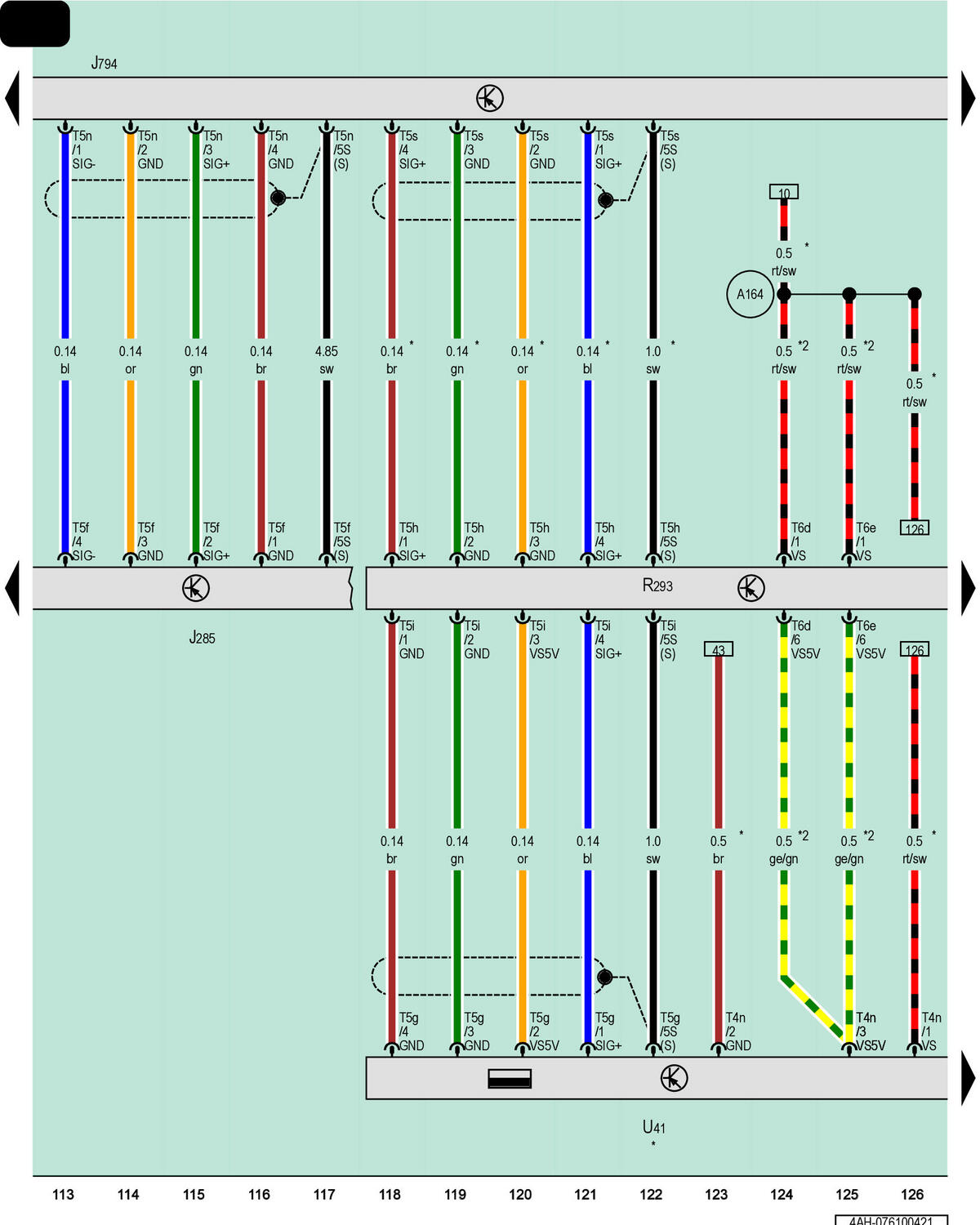

Information Electronics Control Module 1, USB Distributor, USB Connection 1
J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
R293
USB Distributor
T4n
4-Pin Connector, Red
T5f
5-Pin Connector, Black
T5g
5-Pin Connector, Blue
T5h
5-Pin Connector, Green
T5i
5-Pin Connector, Brown
T5n
5-Pin Connector, White
T5s
5-Pin Connector, Brown
T6d
6-Pin Connector, Brown
T6e
6-Pin Connector, Black
U41
USB Connection 1
A164
Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
*
For Vehicles with External Audio Source Connection - Audi Music Interface
*2
Depending on Equipment
