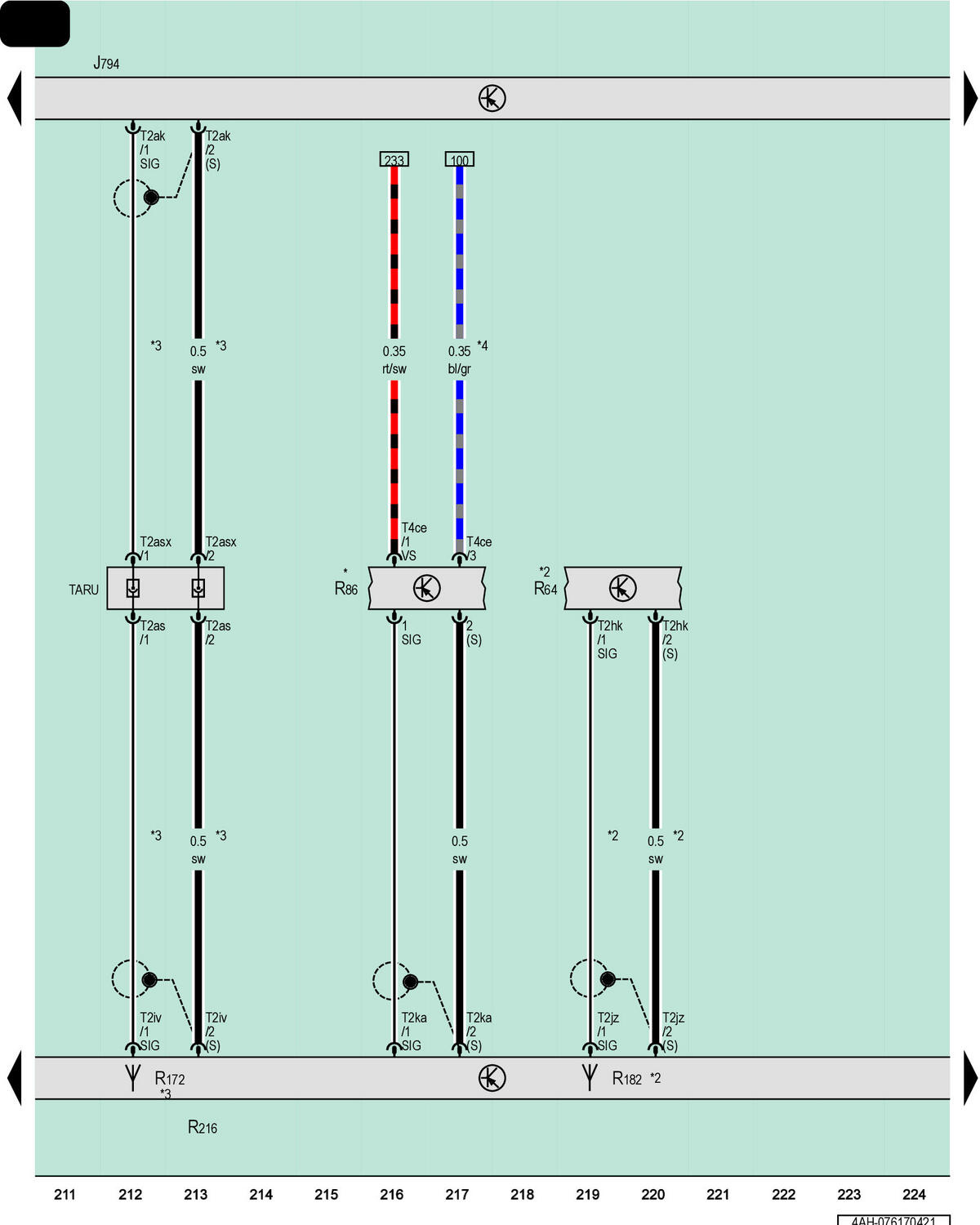

Information Electronics Control Module 1, Parking Heater Radio Receiver

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R64

Parking Heater Radio Receiver

R86

Cellular Telephone Amplifier

R172

Satellite Tuner Antenna

R182

Auxiliary Heater Antenna

R216

Roof Antenna

T2ak

2-Pin Connector, Brown

T2as

2-Pin Connector, Brown

T2asx

2-Pin Connector, Brown

T2hk

2-Pin Connector, Naturally Cloudy

T2iv

2-Pin Connector, Green

T2jz

2-Pin Connector, Naturally Cloudy

T2ka

2-Pin Connector, Purple

T4ce

4-Pin Connector, Black

TARU

Coupling Point on Right A-Pillar, Bottom

*

Refer to Applicable Wiring Diagram

*2

For Vehicles with a Parking Heater

*3

For Vehicles with Satellite Radio

*4

Depending on Equipment
