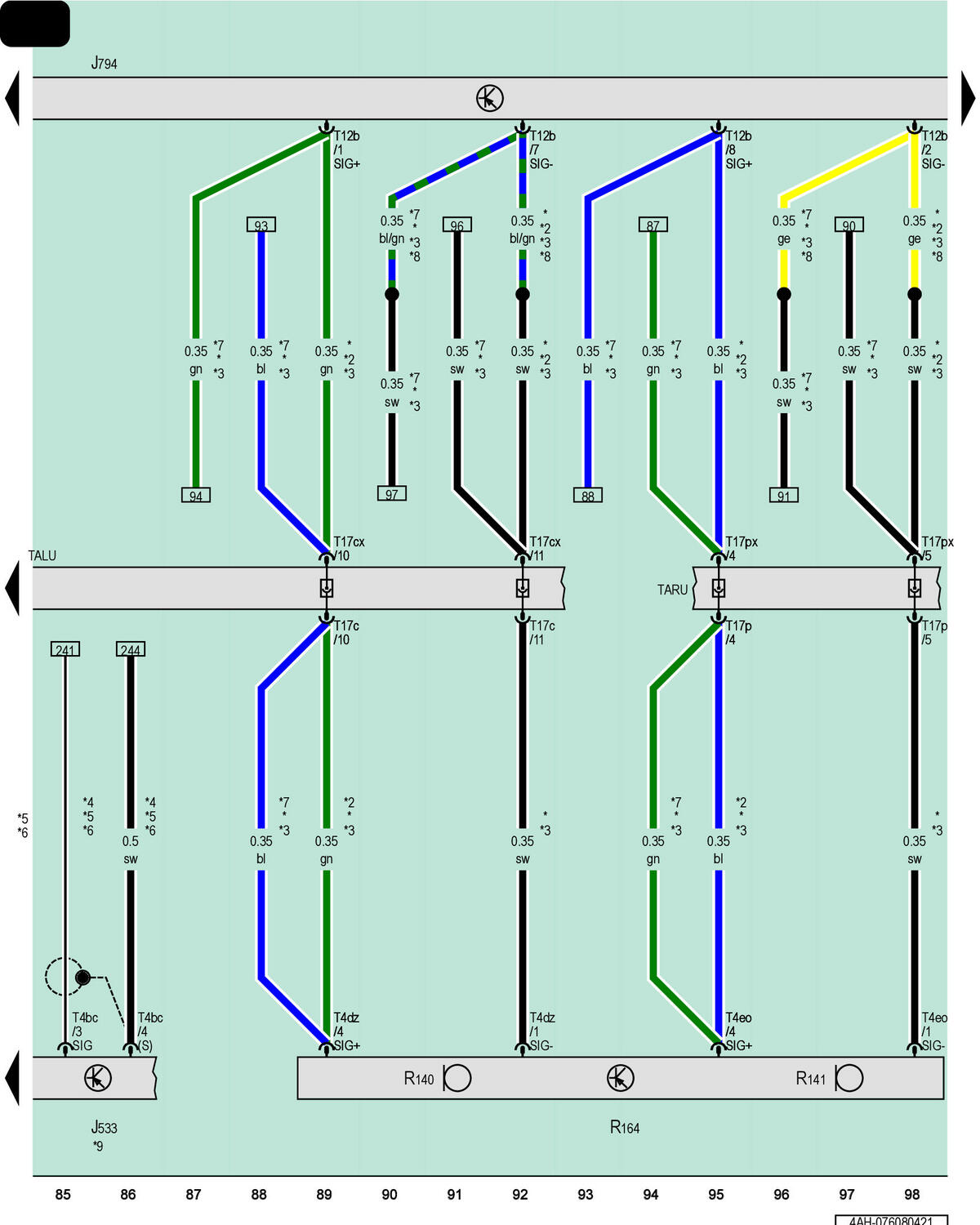

Information Electronics Control Module 1, Microphone Unit In Front Roof Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
R140
Left Front Microphone
R141
Right Front Microphone
R164
Microphone Unit in Front Roof Module
T4bc
4-Pin Connector, Purple
T4dz
4-Pin Connector, Gray
T4eo
4-Pin Connector, Blue
T12b
12-Pin Connector, Blue
T17c
17-Pin Connector, Red
T17cx
17-Pin Connector, Red
T17p
17-Pin Connector, Black
T17px
17-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
TARU
Coupling Point on Right A-Pillar, Bottom
*
For Vehicles Without Emergency Call Module
*2
For LHD Vehicles
*3
Refer to Applicable Emergency Call Module Wiring Diagram
*4
For Vehicles with Emergency Call Module
*5
For Vehicles with Mobile Online Services
*6
Depending on Equipment
*7
For RHD Vehicles
*8
Running Change
*9
Refer to Applicable Wiring Diagram
