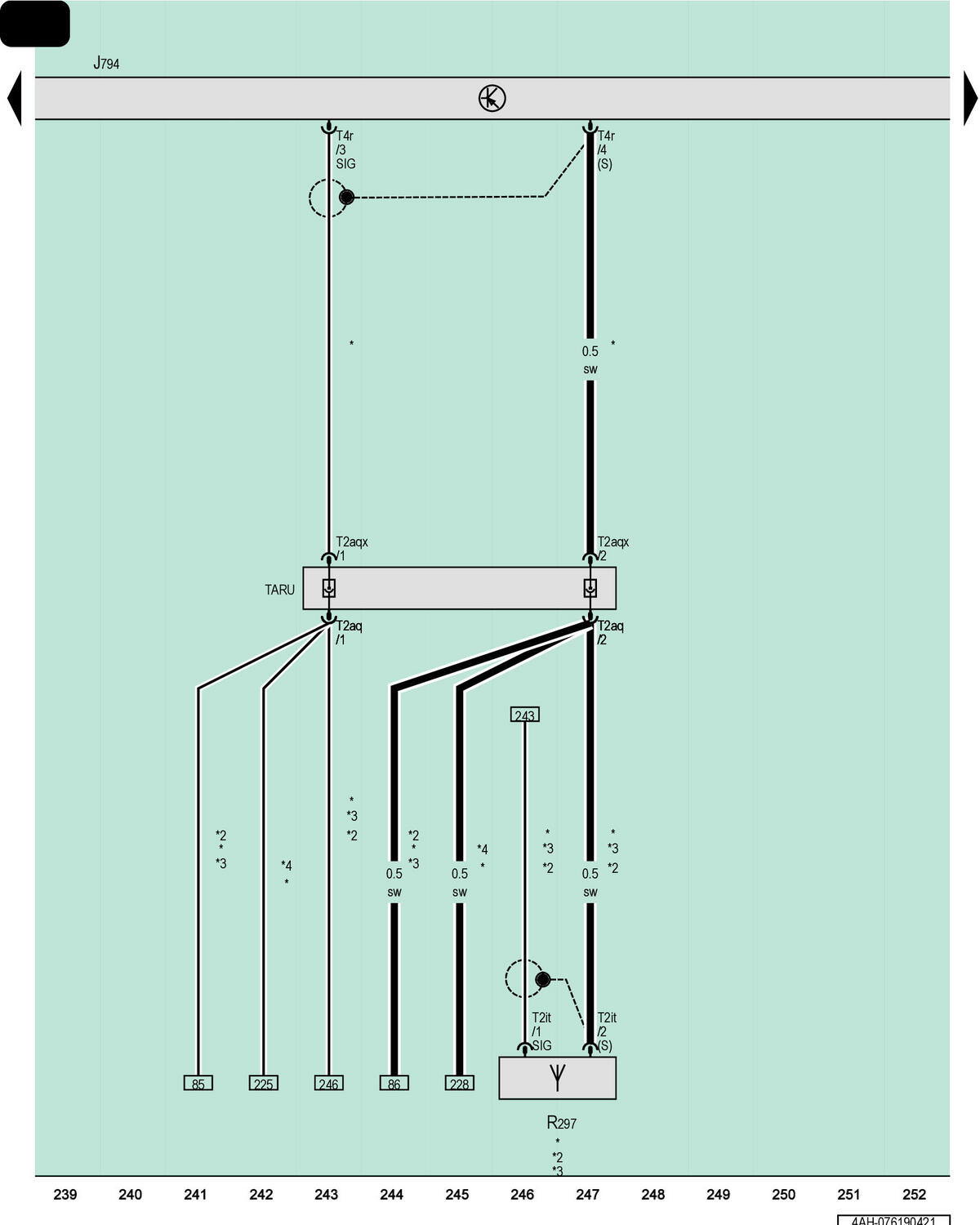

Information Electronics Control Module 1, LTE Antenna 1

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R297

LTE Antenna 1, Behind the Right Rear Bumper

T2aq

2-Pin Connector, Purple

T2aqx

2-Pin Connector, Purple

T2it

2-Pin Connector, Purple

T4r

4-Pin Connector, Purple

TARU

Coupling Point on Right A-Pillar, Bottom

*

For Vehicles with Mobile Online Services

*2

For Vehicles with Emergency Call Module

*3

Depending on Equipment

*4

For Vehicles Without Emergency Call Module
