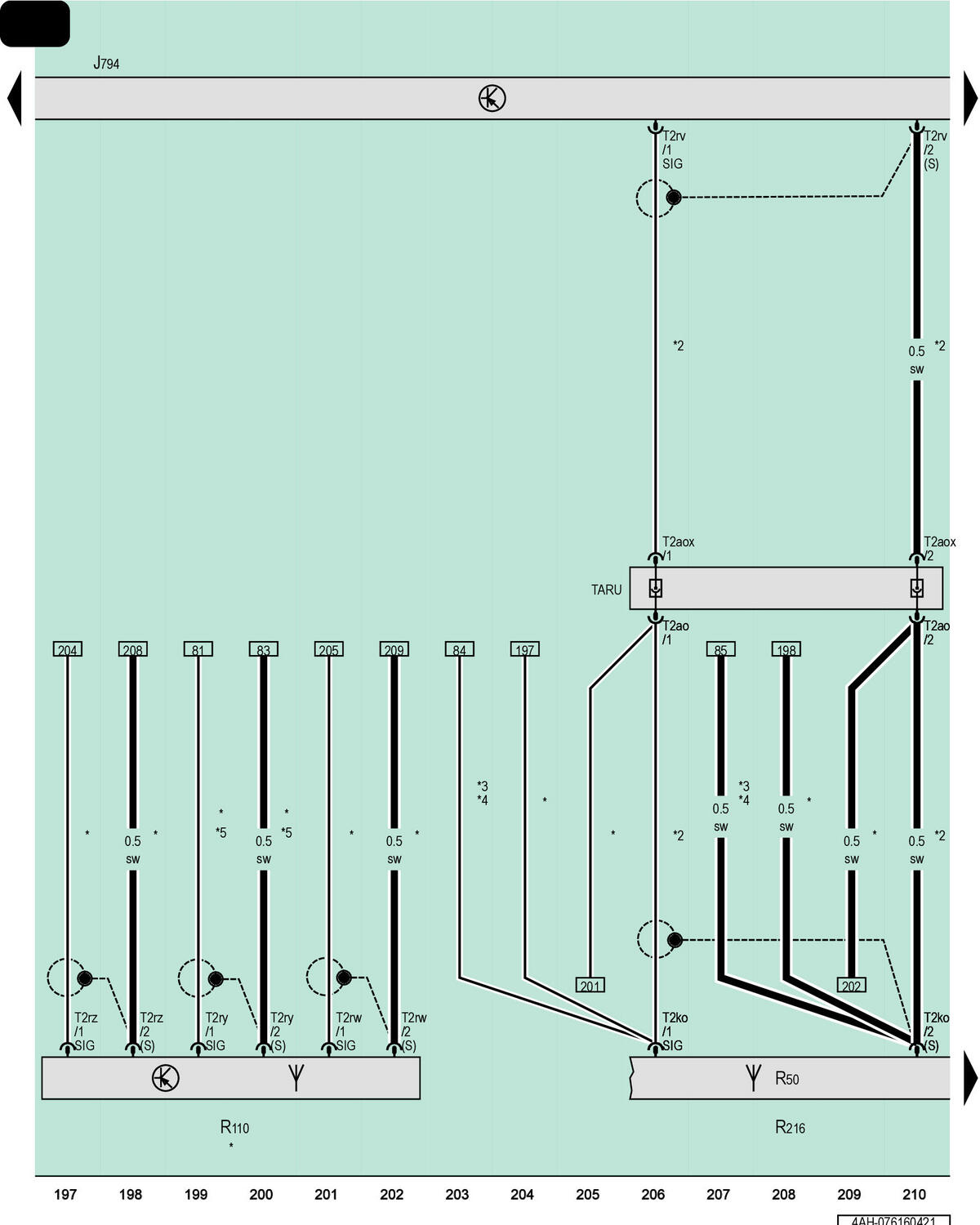

Information Electronics Control Module 1, GPS Antenna, GPS Antenna Splitter

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R50

GPS Antenna

R110

GPS Antenna Splitter

R216

Roof Antenna

T2ao

2-Pin Connector, Blue

T2aox

2-Pin Connector, Blue

T2ko

2-Pin Connector, Blue

T2rv

2-Pin Connector, Blue

T2rw

2-Pin Connector, Yellow

T2ry

2-Pin Connector, Purple

T2rz

2-Pin Connector, Purple

TARU

Coupling Point on Right A-Pillar, Bottom

*

For Vehicles with Vehicle Positioning System

*2

For Vehicles with Navigation System

*3

For Vehicles with Russia Equipment

*4

For Vehicles Without a Navigation System

*5

Depending on Equipment
