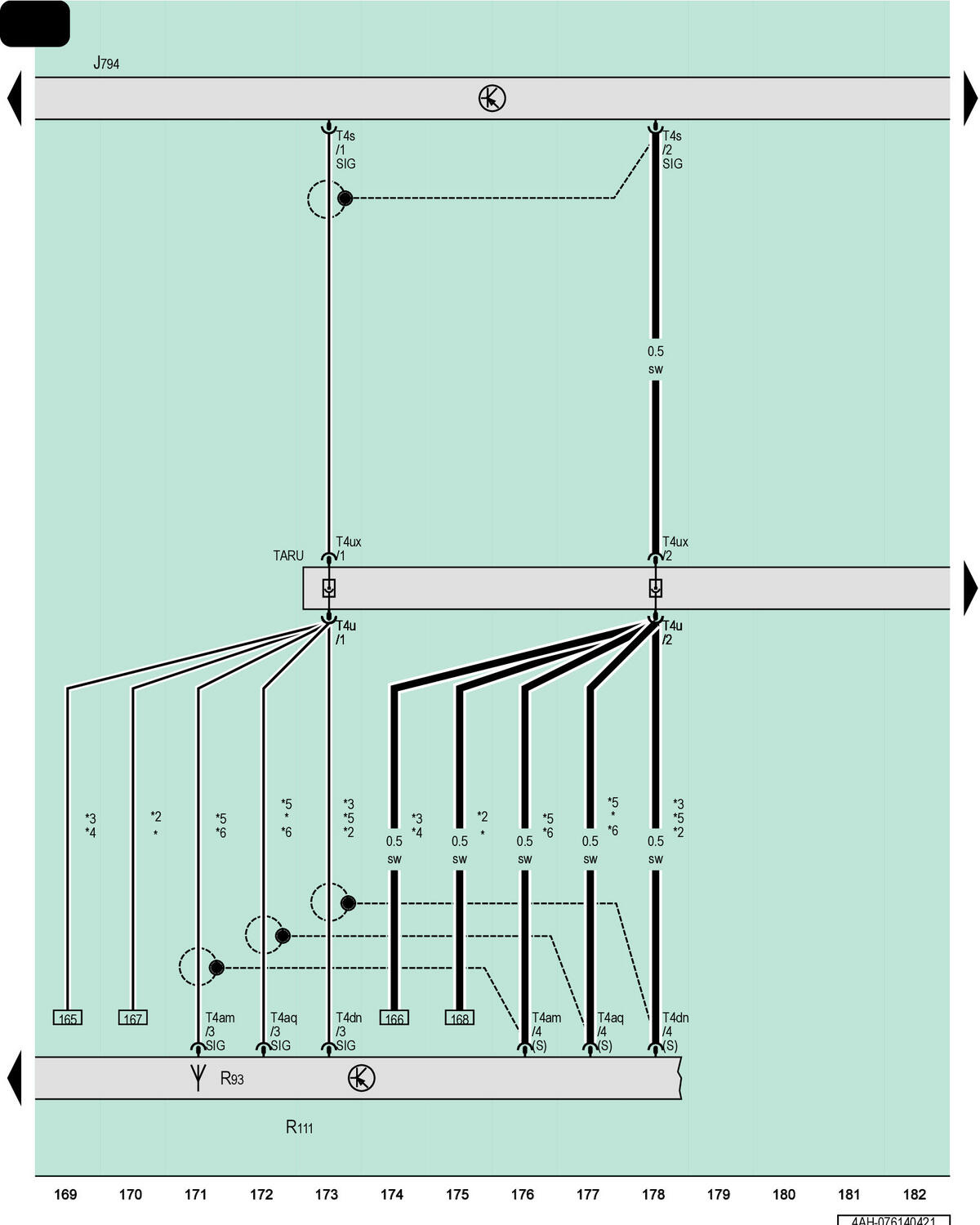

Information Electronics Control Module 1, Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R93

Radio Antenna 2

R111

Antenna Amplifier 2

T4am

4-Pin Connector, Purple

T4aq

4-Pin Connector, Blue

T4dn

4-Pin Connector, Naturally Cloudy

T4s

4-Pin Connector, White

T4u

4-Pin Connector, White

T4ux

4-Pin Connector, White

TARU

Coupling Point on Right A-Pillar, Bottom

*

For Vehicles with Japan Equipment

*2

Sedan

*3

For Vehicles Without TV Reception

*4

For Vehicles Without Digital Radio

*5

For Vehicles with Digital Radio

*6

Avant
