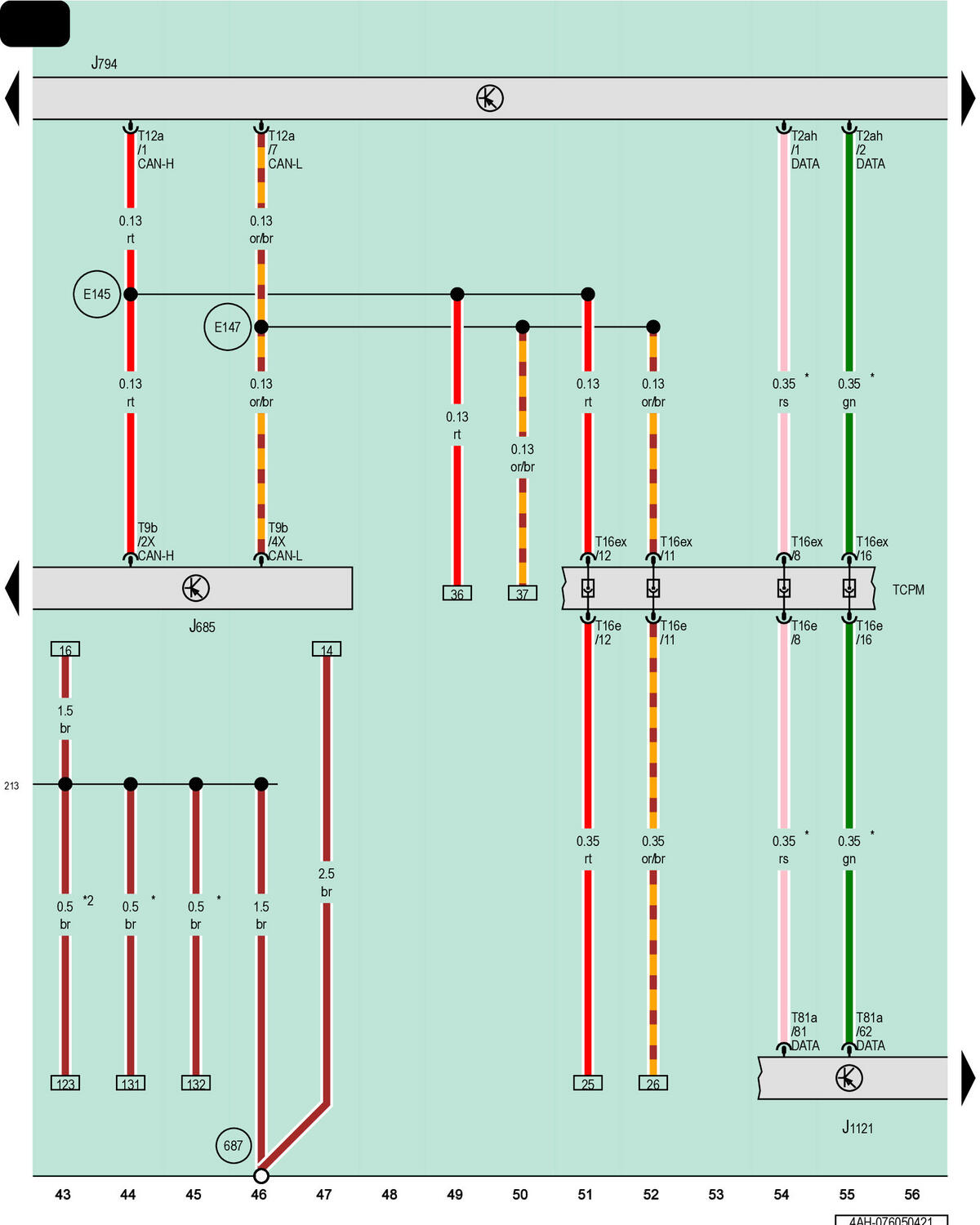

Front Information Display Control Head, Information Electronics Control Module 1
J685
Front Information Display Control Head
J794
Information Electronics Control Module 1
J1121
Driver Assistance Systems Control Module
T2ah
2-Pin Connector, Black
T9b
9-Pin Connector, Blue
T12a
12-Pin Connector, Gray
T16e
16-Pin Connector, Black
T16ex
16-Pin Connector, Black
T81a
81-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
213
Ground Connection (in Instrument Panel Wiring Harness)
687
Ground Connection 1 on Center Tunnel
E145
Connection 1 (CAN Bus Information Electronics Control Module 1, High)
E147
Connection 1 (CAN Bus Information Electronics Control Module 1, Low)
*
Depending on Equipment
*2
For Vehicles with External Audio Source Connection - Audi Music Interface
