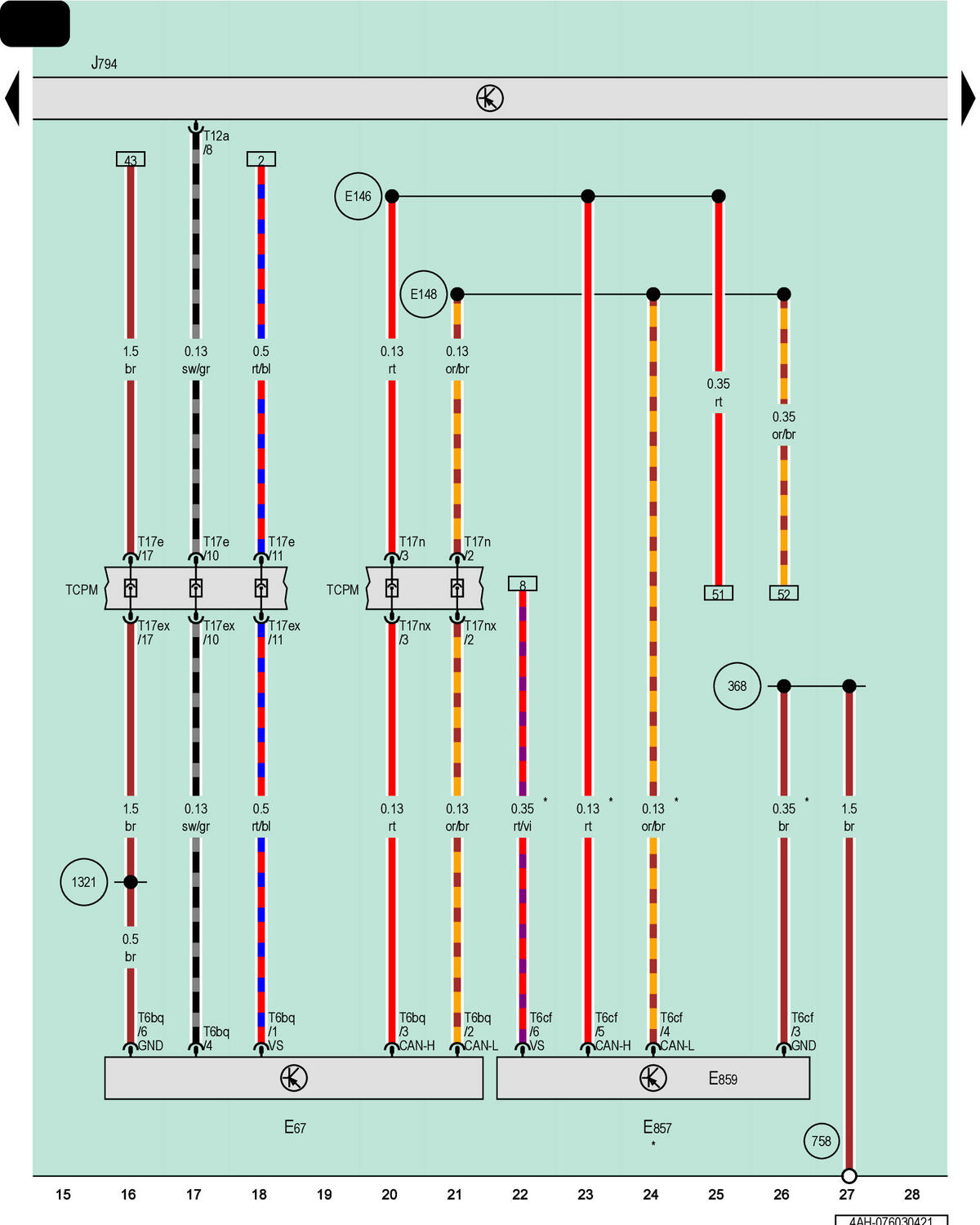

Driver Volume Control, Auxiliary Display Control Head 1, Information Electronics Control Module 1
E67
Driver Volume Control
E857
Auxiliary Display Control Head 1
E859
Wireless Control Head 1
J794
Information Electronics Control Module 1
T6bq
6-Pin Connector, Red
T6cf
6-Pin Connector, Black
T12a
12-Pin Connector, Gray
T17e
17-Pin Connector, Black
T17ex
17-Pin Connector, Black
T17n
17-Pin Connector, Red
T17nx
17-Pin Connector, Red
TCPM
Coupling Point on Instrument Panel, Center
368
Ground Connection 3 (in Main Wiring Harness)
758
Ground Connection 3 on Center Tunnel
1321
Ground Connection 2 (in Center Console Wiring Harness)
E146
Connection 2 (CAN Bus Information Electronics Control Module 1, High)
E148
Connection 2 (CAN Bus Information Electronics Control Module 1, Low)
*
For Vehicles with a Removable Radio Controller
