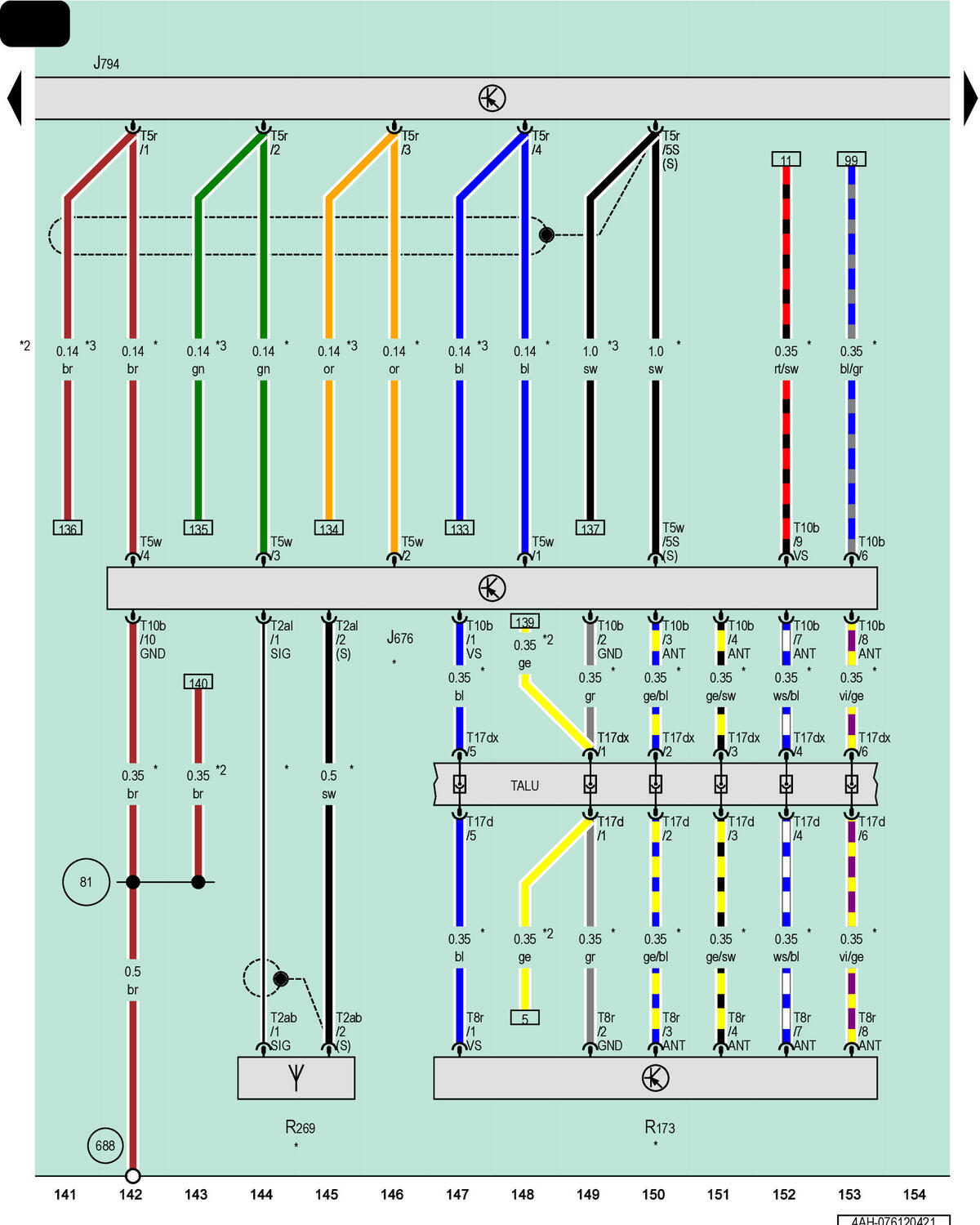

Chip Card Reader Control Module, Information Electronics Control Module 1, Traffic Data Antenna, Near Field Communication Antenna

Courtesy of AUDI OF AMERICA, LLC

J676

Chip Card Reader Control Module

J794

Information Electronics Control Module 1

R173

Traffic Data Antenna

R269

Near Field Communication Antenna

T2ab

2-Pin Connector, Yellow

T2al

2-Pin Connector, Yellow

T5r

5-Pin Connector, Blue

T5w

5-Pin Connector, Brown

T8r

8-Pin Connector, Black

T10b

10-Pin Connector, Black

T17d

17-Pin Connector, Green

T17dx

17-Pin Connector, Green

TALU

Coupling Point on Left A-Pillar, Bottom

Ground Connection 1 (in Instrument Panel Wiring Harness)

688

Ground Connection 2 on Center Tunnel

For Vehicles with Japan Equipment

For Vehicles with Korea Equipment

For Vehicles with DVD Player
