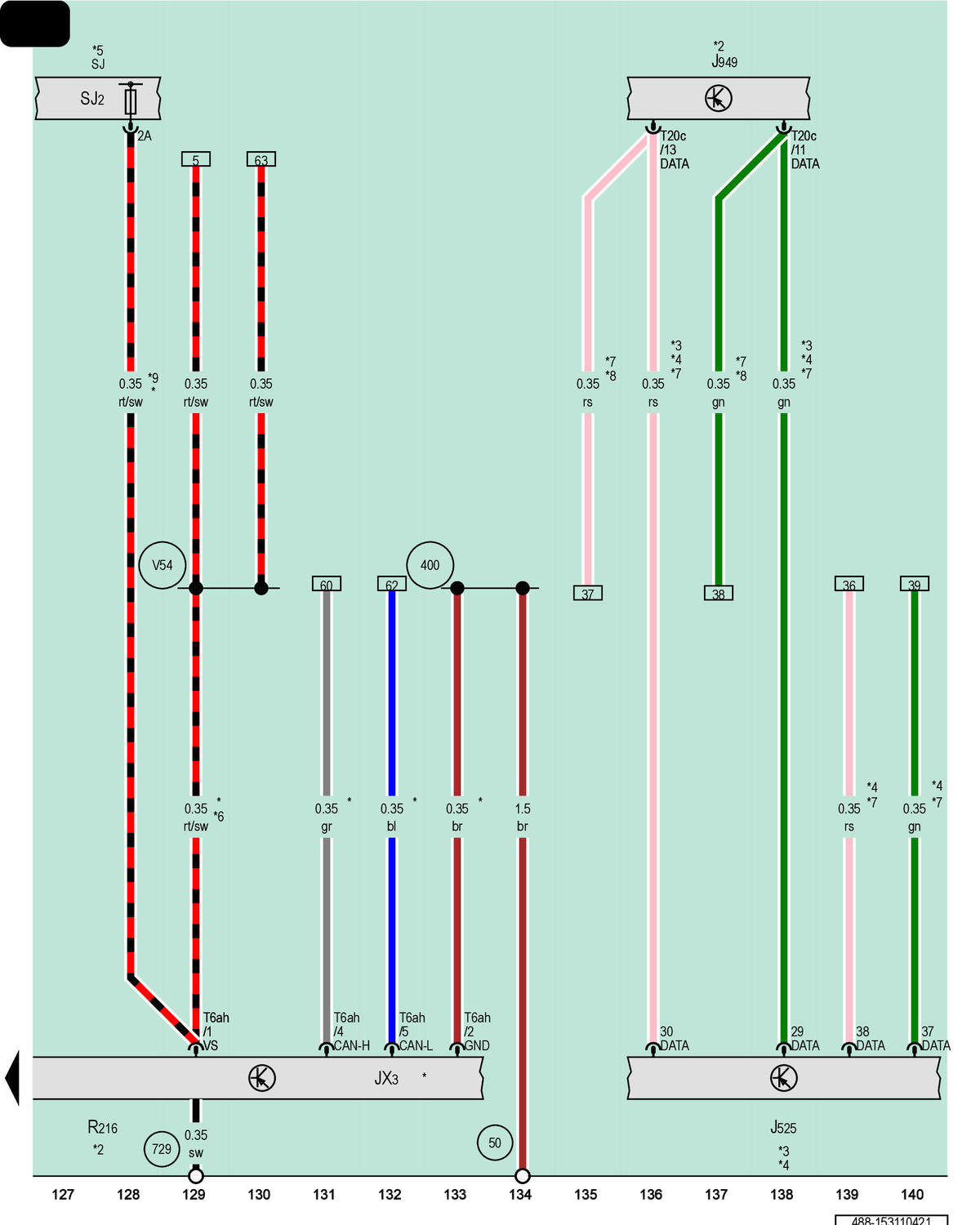

Roof Antenna Control Module, Control Module For Emergency Call Module And Communication Unit, Roof Antenna
JX3
Roof Antenna Control Module
J525
Digital Sound System Control Module
J949
Control Module for Emergency Call Module and Communication Unit
R216
Roof Antenna
SJ
Fuse Panel J
SJ2
Fuse 2 on Fuse Panel J
T6ah
6-Pin Connector, Black
T20c
20-Pin Connector, Naturally Cloudy
50
Ground Connection in Luggage Compartment, Left
400
Ground Connection 35 (in Main Wiring Harness)
729
Ground Connection on Left Rear Wheel Housing
V54
Telephone Connection 1 (in Main Wiring Harness)
*
Optional Equipment
*2
Refer to Applicable Communication Wiring Diagram
*3
Refer to Applicable Sound System Wiring Diagram
*4
For Vehicles with an Amplifier
*5
Refer to Applicable Wiring Diagram for Fuse Positions
*6
Through November 2020
*7
Audio Bus Data Bus Wire
*8
For Vehicles Without an Amplifier
*9
From November 2020
