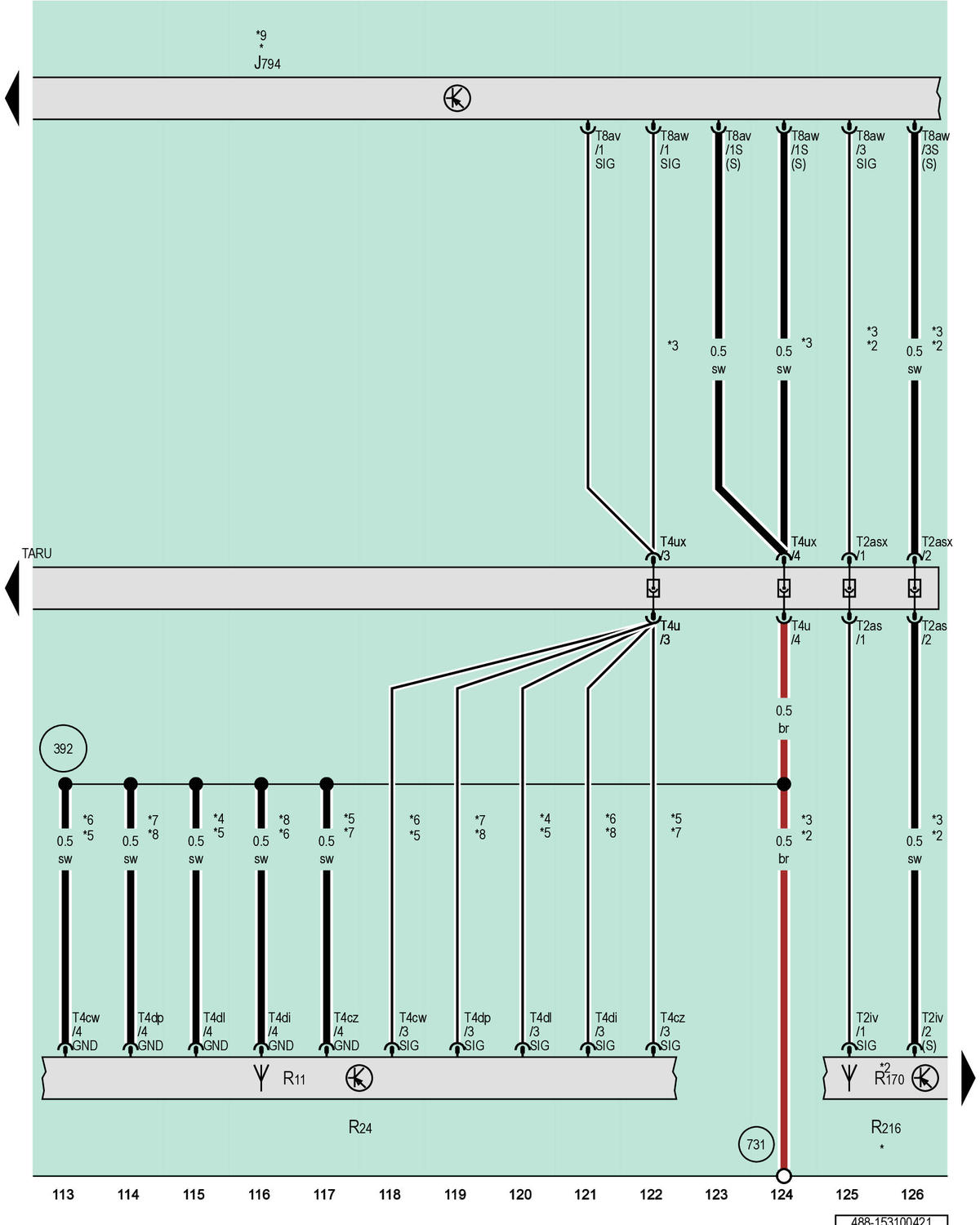

Information Electronics Control Module 1, Roof Antenna
J794
Information Electronics Control Module 1
R11
Antenna
R24
Antenna Amplifier
R170
Satellite Antenna
R216
Roof Antenna
T2as
2-Pin Connector, Brown
T2asx
2-Pin Connector, Brown
T2iv
2-Pin Connector, Green
T4cw
4-Pin Connector, White
T4cz
4-Pin Connector, Green
T4di
4-Pin Connector, Gray
T4dl
4-Pin Connector, Pink
T4dp
4-Pin Connector, Yellow
T4u
4-Pin Connector, White
T4ux
4-Pin Connector, White
T8av
8-Pin Connector, Blue
T8aw
8-Pin Connector, Black
TARU
Coupling Point on Right A-Pillar, Bottom
392
Ground Connection 27 (in Main Wiring Harness)
731
Ground Connection 2 on Right Rear Wheel Housing
*
Refer to Applicable Communication Wiring Diagram
*2
For Vehicles with Satellite Radio
*3
For Vehicles with US Equipment
*4
For Vehicles with Japan Equipment
*5
For Vehicles with TV Tuner
*6
For Vehicles Without Digital Radio
*7
For Vehicles with Digital Radio
*8
For Vehicles Without TV Reception
*9
Refer to Applicable Sound System Wiring Diagram
