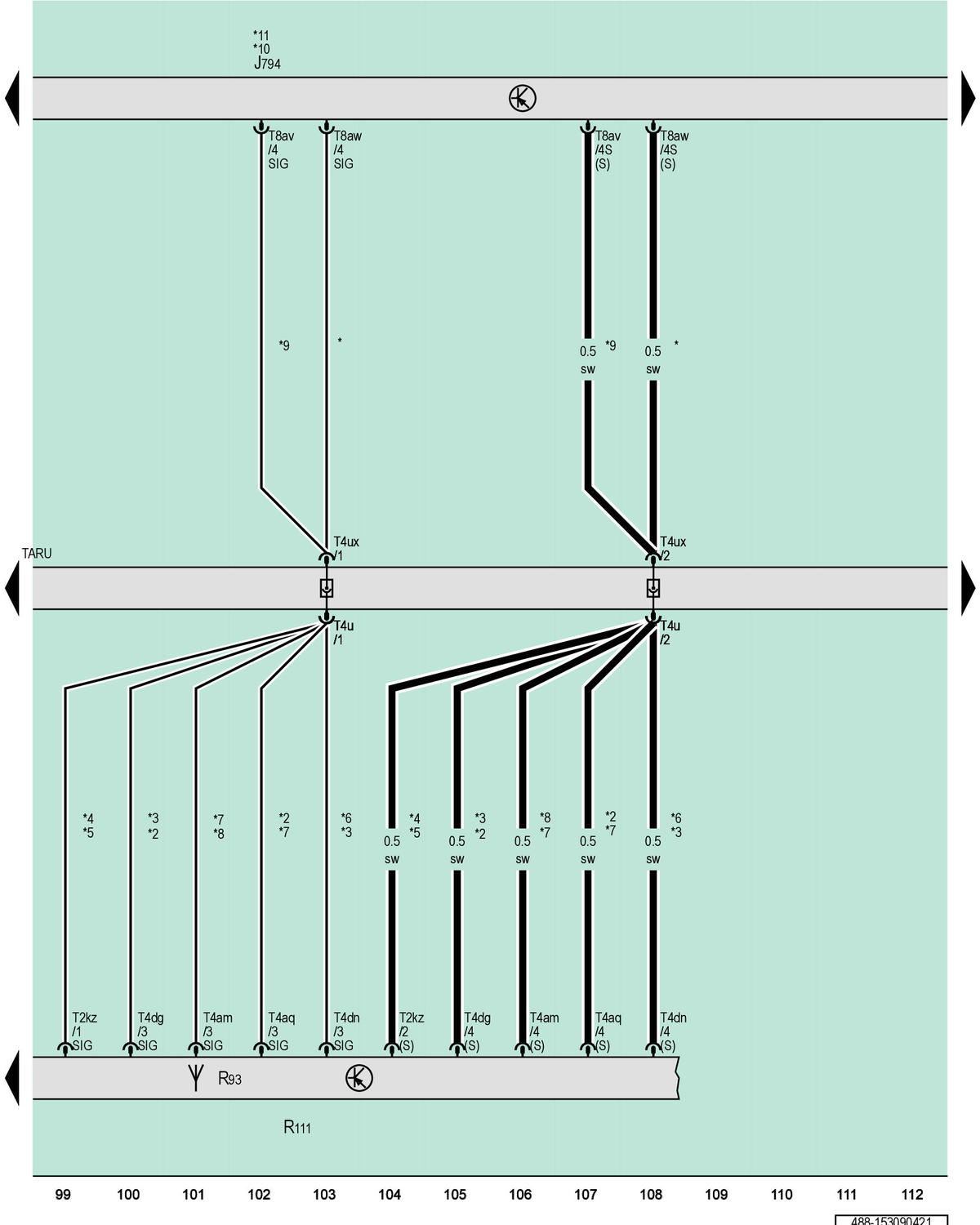

Information Electronics Control Module 1, Antenna Amplifier 2

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

R93

Radio Antenna 2

R111

Antenna Amplifier 2

T2kz

2-Pin Connector, Naturally Cloudy

T4am

4-Pin Connector, Purple

T4aq

4-Pin Connector, Blue

T4dg

4-Pin Connector, Brown

T4dn

4-Pin Connector, Naturally Cloudy

T4u

4-Pin Connector, White

T4ux

4-Pin Connector, White

T8av

8-Pin Connector, Blue

T8aw

8-Pin Connector, Black

TARU

Coupling Point on Right A-Pillar, Bottom

*

For Vehicles with US Equipment

*2

For Vehicles with Japan Equipment

*3

Sedan

*4

For Vehicles Without TV Reception

*5

For Vehicles Without Digital Radio

*6

For Vehicles with Digital Radio

*7

Avant

*8

For Vehicles with TV Tuner

*9

For Vehicles Without US Equipment

*10

Refer to Applicable Communication Wiring Diagram

*11

Refer to Applicable Sound System Wiring Diagram
