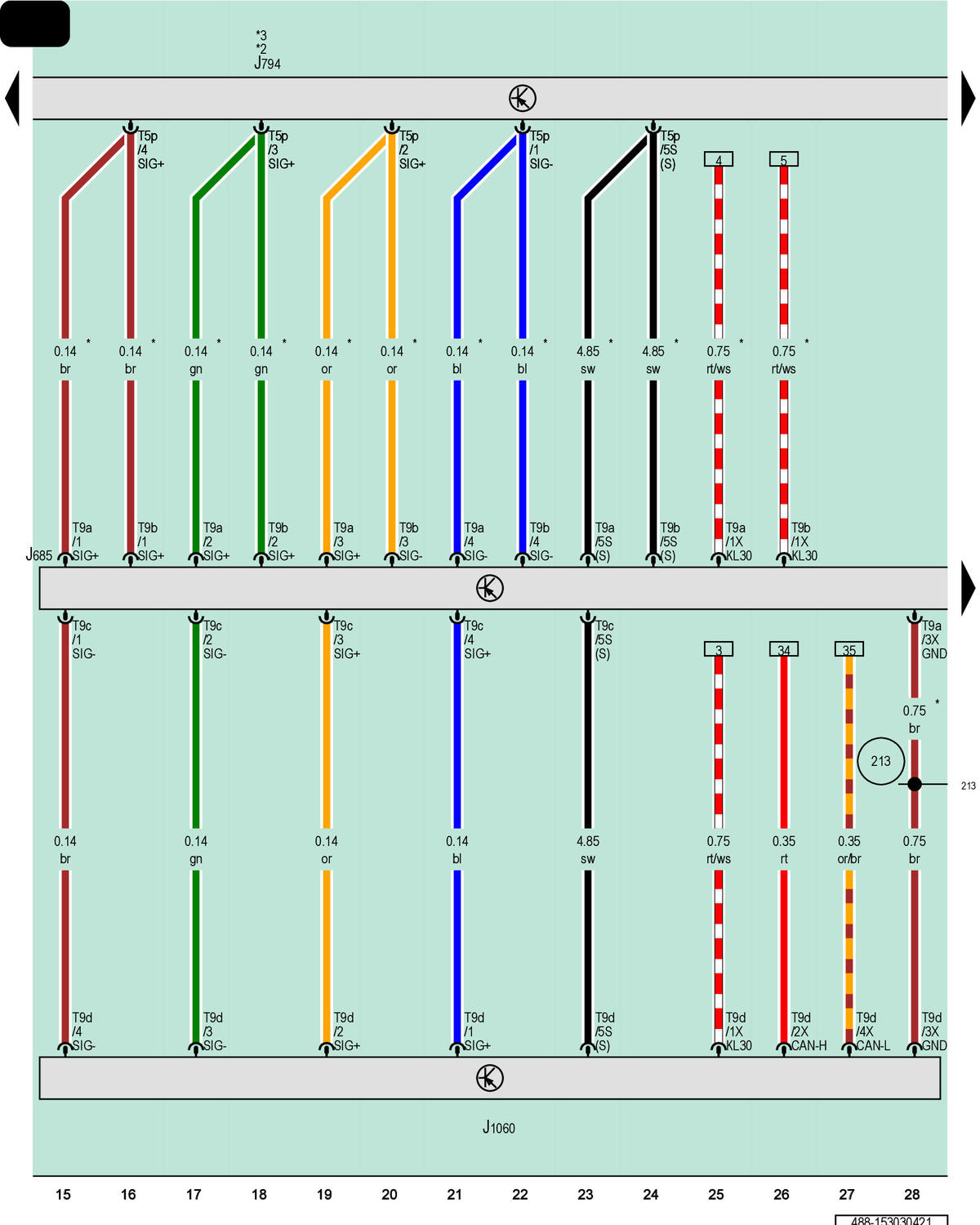

Front Information Display Control Head, Information Electronics Control Module 1, Front Information Display Control Head 2

Courtesy of AUDI OF AMERICA, LLC

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

J1060

Front Information Display Control Head 2

T5p

5-Pin Connector, Black

T9a

9-Pin Connector, Black

T9b

9-Pin Connector, Blue

T9c

9-Pin Connector, White

T9d

9-Pin Connector, White

213

Ground Connection (in Instrument Panel Wiring Harness)

*

Depending on Equipment

*2

Refer to Applicable Communication Wiring Diagram

*3

Refer to Applicable Sound System Wiring Diagram
