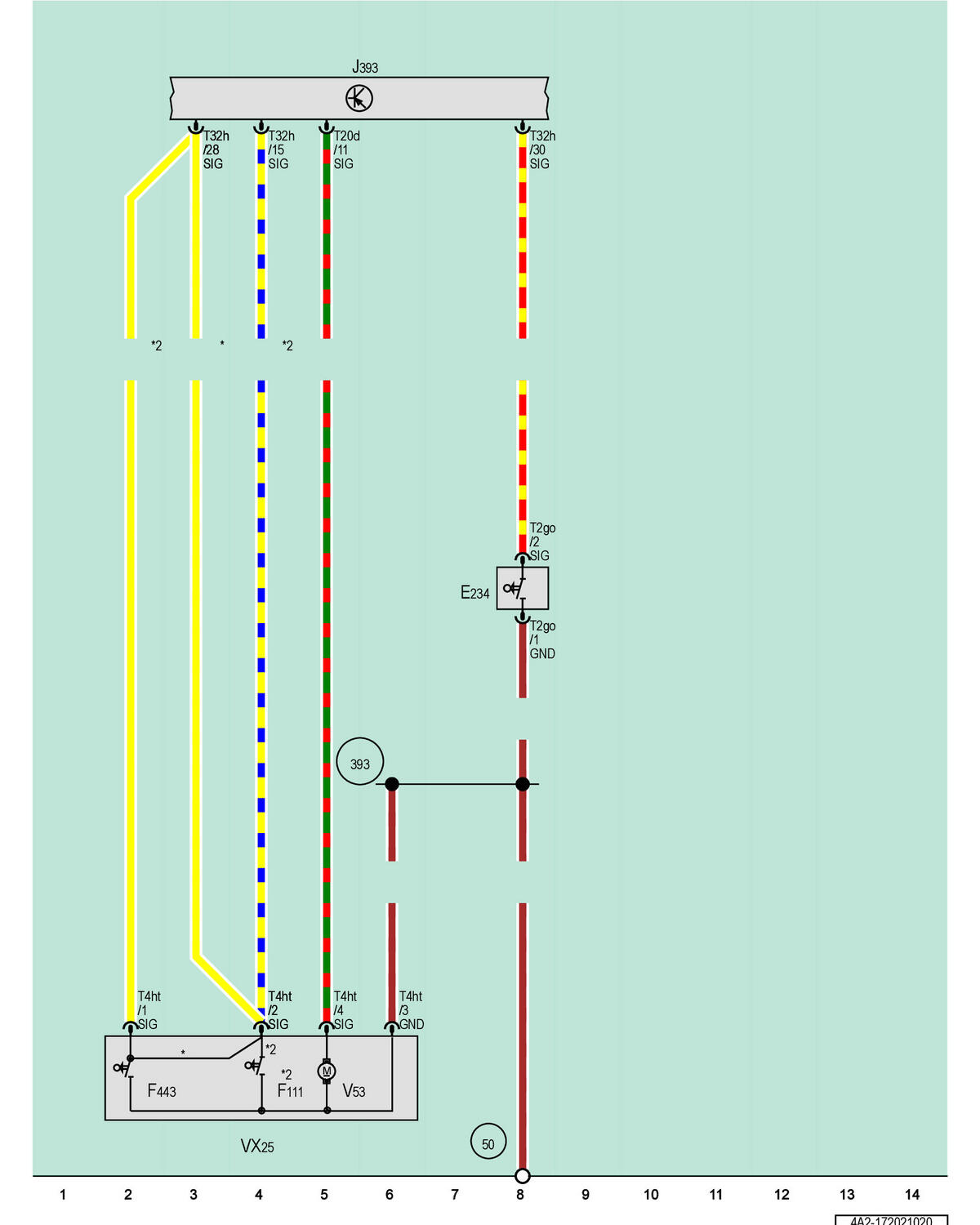

Release Button In Rear Lid Handle, Comfort System Central Control Module, Rear Lid Lock Unit

Courtesy of AUDI OF AMERICA, LLC

E234

Release Button in Rear Lid Handle

F111

Rear Lid Contact Switch

F443

Lock Pawl Contact Switch

J393

Comfort System Central Control Module

T2go

2-Pin Connector, Black

T4ht

4-Pin Connector, Black

T20d

20-Pin Connector, Black

T32h

32-Pin Connector, Blue

VX25

Rear Lid Lock Unit

V53

Rear Lid Central Locking System Motor

50

Ground Connection in Luggage Compartment, Left

393

Ground Connection 28 (in Main Wiring Harness)

*

For Vehicles Without Rear Lid Closing Aid

*2

For Vehicles with Rear Lid Closing Aid
