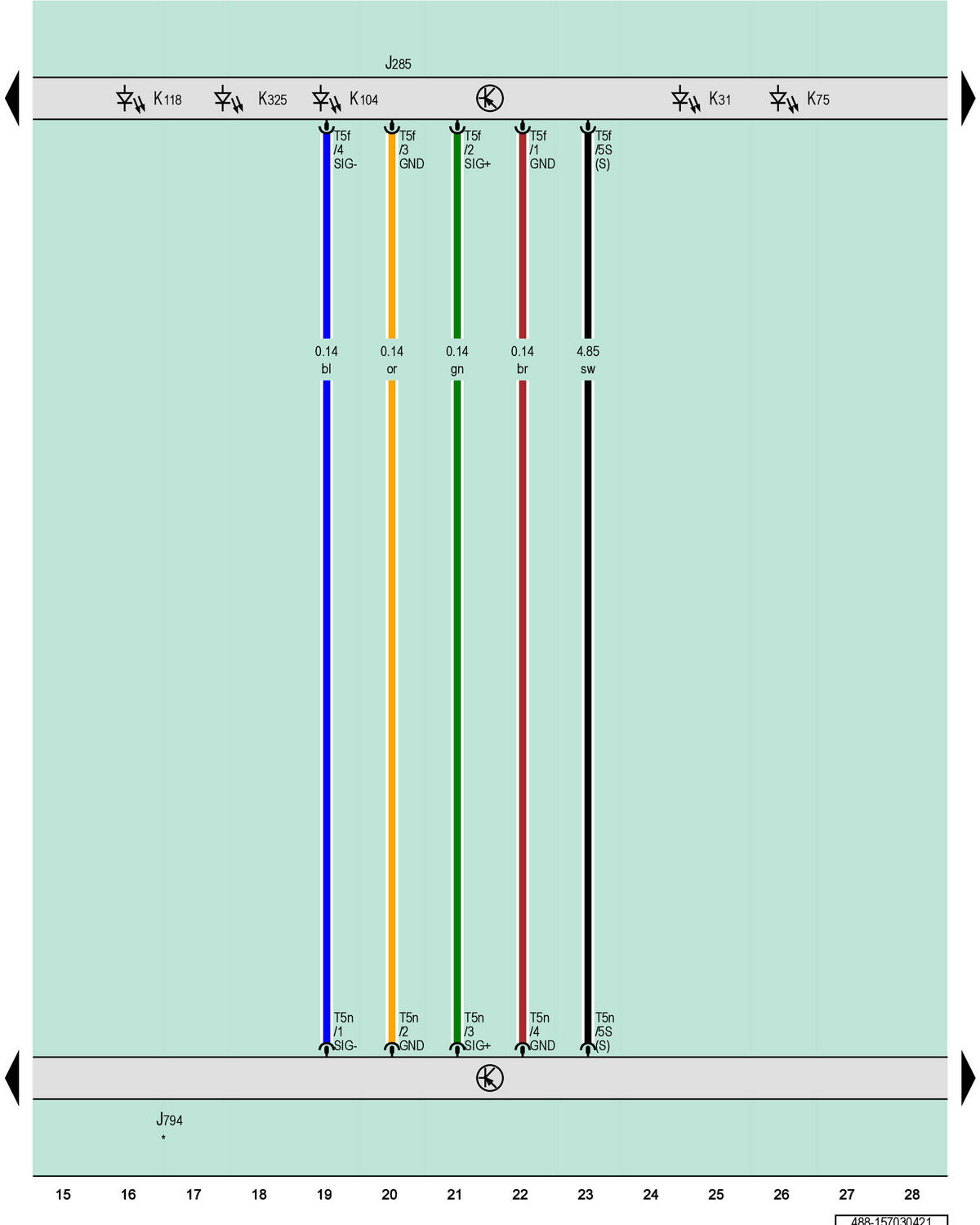

Instrument Cluster Control Module

Courtesy of AUDI OF AMERICA, LLC

J285

J794

Information Electronics Control Module 1

K31

Cruise Control Indicator Lamp

K75

Airbag Indicator Lamp

K104

Diesel Electronics Indicator Lamp

K118

Brake System Indicator Lamp

K325

Driver Assistance System Indicator Lamp

T5f

5-Pin Connector, Black

T5n

5-Pin Connector, White

Refer to Applicable MMI (Information Electronics) Wiring Diagram
