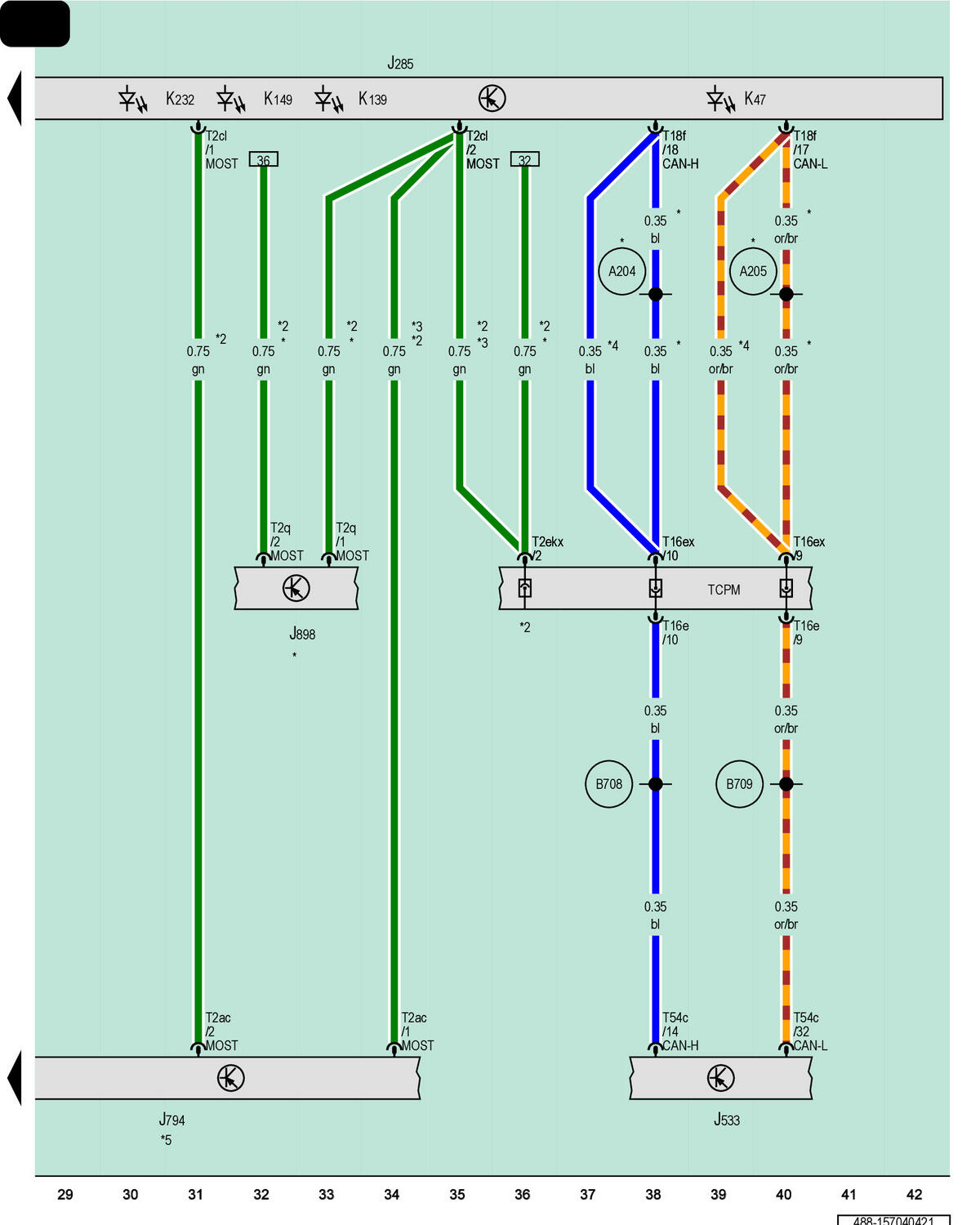

Instrument Cluster Control Module, Windshield Projection Head Up Display Control Module
J285
Instrument Cluster Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
K47
ABS Indicator Lamp
K139
Parking Brake Indicator Lamp
K149
Engine Electronics Indicator Lamp
K232
Lane Change Assistance Indicator Lamp
T2ac
2-Pin Connector, Black
T2cl
2-Pin Connector, Black
T2ekx
2-Pin Connector, Black
T2q
2-Pin Connector, Black
T16e
16-Pin Connector, Black
T16ex
16-Pin Connector, Black
T18f
18-Pin Connector, Black
T54c
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
A204
Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205
Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B708
Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B709
Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
*
For Vehicles with Windshield Projection
*2
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*3
Depending on Equipment
*4
For Vehicles Without Windshield Projection
*5
Refer to Applicable MMI (Information Electronics) Wiring Diagram
