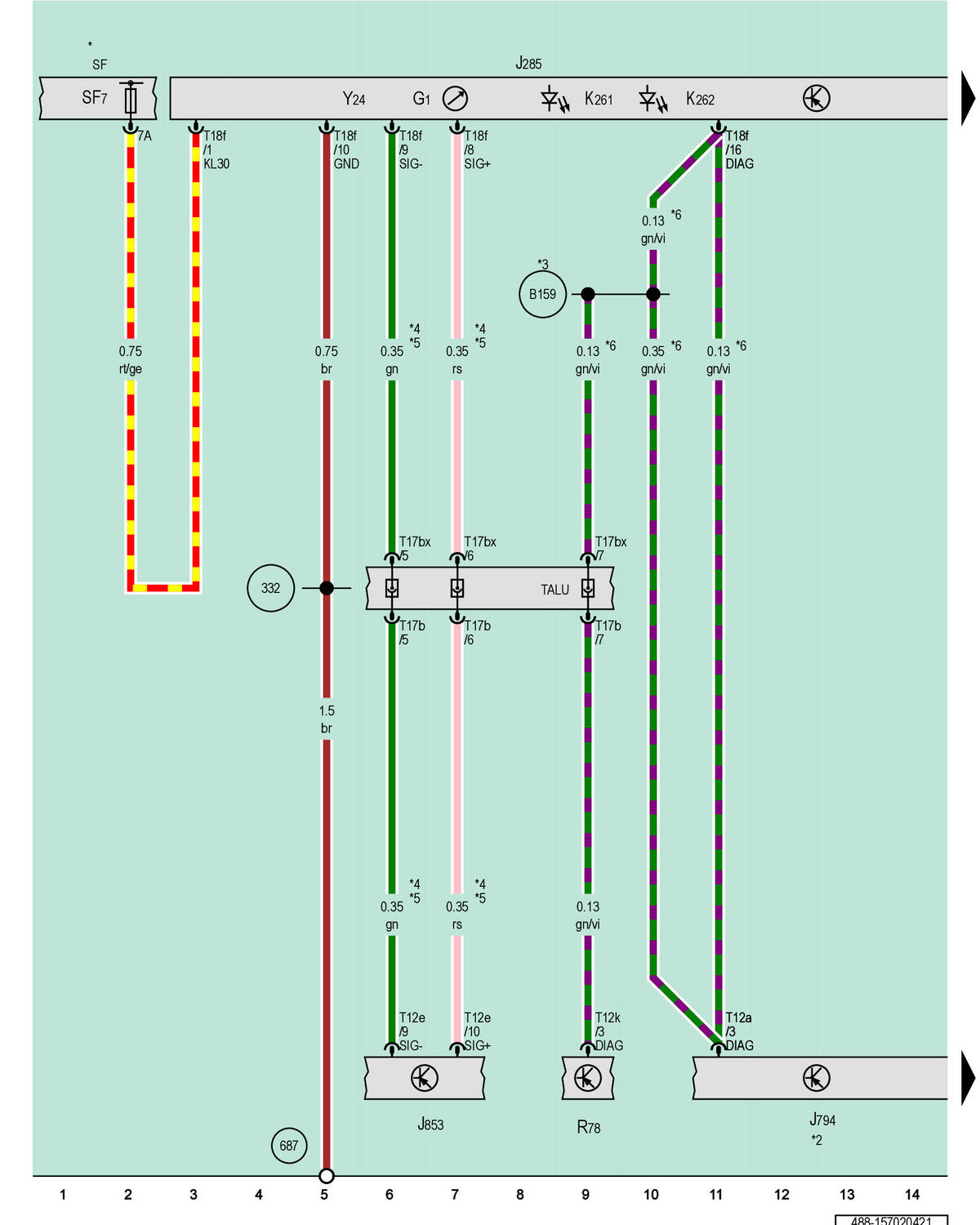

Instrument Cluster Control Module, TV Tuner
G1
Fuel Gauge
J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
J853
Night Vision System Control Module
K261
Left Turn Signal Indicator Lamp
K262
Right Emergency Flasher Indicator Lamp
R78
TV Tuner
SF
Fuse Panel F
SF7
Fuse 7 (On Fuse Panel F)
T12a
12-Pin Connector, Gray
T12e
12-Pin Connector, Black
T12k
12-Pin Connector, Black
T17b
17-Pin Connector, Blue
T17bx
17-Pin Connector, Blue
T18f
18-Pin Connector, Black
TALU
Coupling Point on Left A-Pillar, Bottom
Y24
Display Unit in Instrument Cluster
332
Ground Connection 4 (in Instrument Panel Wiring Harness)
687
Ground Connection 1 on Center Tunnel
B159
Diagnostic Connection (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*4
For Vehicles with Night Vision System
*5
Data Wire
*6
Depending on Equipment
