Instrument Cluster Control Module
G1
Fuel Gauge
J285
Instrument Cluster Control Module
J794
Information Electronics Control Module 1
J853
Night Vision System Control Module
SF
Fuse Panel F
SF7
Fuse 7 (On Fuse Panel F)
T12a
12-Pin Connector, Gray
T12e
12-Pin Connector, Black
T17b
17-Pin Connector, Blue
T17bx
17-Pin Connector, Blue
T32a
32-Pin Connector, Gray
TALU
Coupling Point on Left A-Pillar, Bottom
Y24
Display Unit in Instrument Cluster
B159
Diagnostic Connection (in Interior Wiring Harness)
B444
OBD Connection 1 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*3
For Vehicles with Night Vision System
*4
Data Wire
*5
Depending on Equipment
*6
Refer to Applicable MMI (Information Electronics) Wiring Diagram

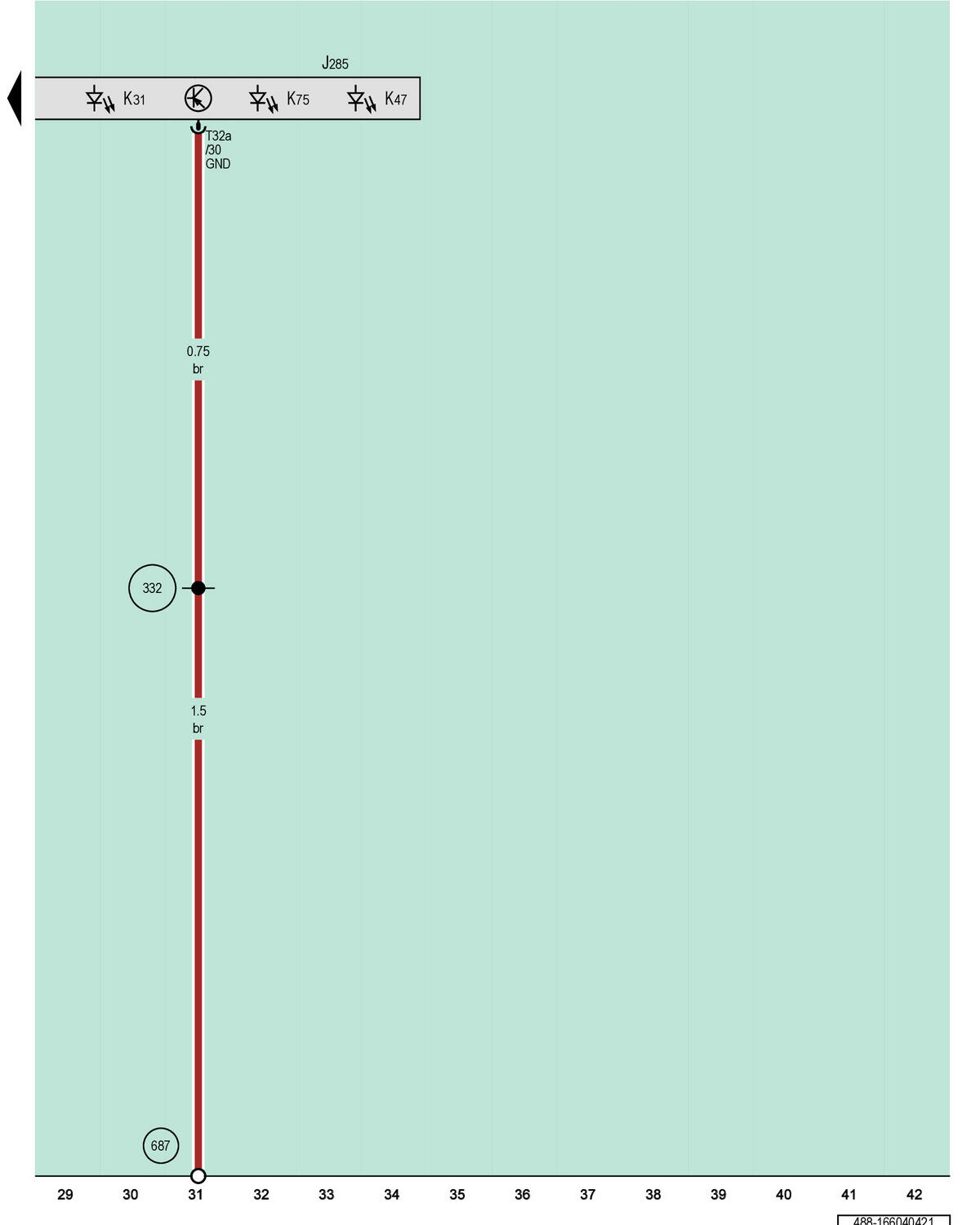

J285
Instrument Cluster Control Module
J533
Data Bus on Board Diagnostic Interface
J794
Information Electronics Control Module 1
J898
Windshield Projection Head Up Display Control Module
K104
Diesel Electronics Indicator Lamp
K118
Brake System Indicator Lamp
K139
Parking Brake Indicator Lamp
K149
Engine Electronics Indicator Lamp
K232
Lane Change Assistance Indicator Lamp
K261
Left Turn Signal Indicator Lamp
K262
Right Emergency Flasher Indicator Lamp
K325
Driver Assistance System Indicator Lamp
T2ac
2-Pin Connector, Black
T2cl
2-Pin Connector, Black
T2ekx
2-Pin Connector, Black
T2q
2-Pin Connector, Black
T16e
16-Pin Connector, Black
T16ex
16-Pin Connector, Black
T32a
32-Pin Connector, Gray
T54c
54-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
A204
Instrument Cluster CAN Bus High Connection (in Instrument Panel Wiring Harness)
A205
Instrument Cluster CAN Bus Low Connection (in Instrument Panel Wiring Harness)
B708
Instrument Cluster CAN Bus High Connection 1 (in Main Wiring Harness)
B709
Instrument Cluster CAN Bus Low Connection 1 (in Main Wiring Harness)
*
For Vehicles with Windshield Projection
*2
Refer to Applicable MMI (Information Electronics) Wiring Diagram
*3
Refer to Applicable Wiring Diagram for Infotainment Most Bus
*4
Depending on Equipment
*5
For Vehicles Without Windshield Projection
