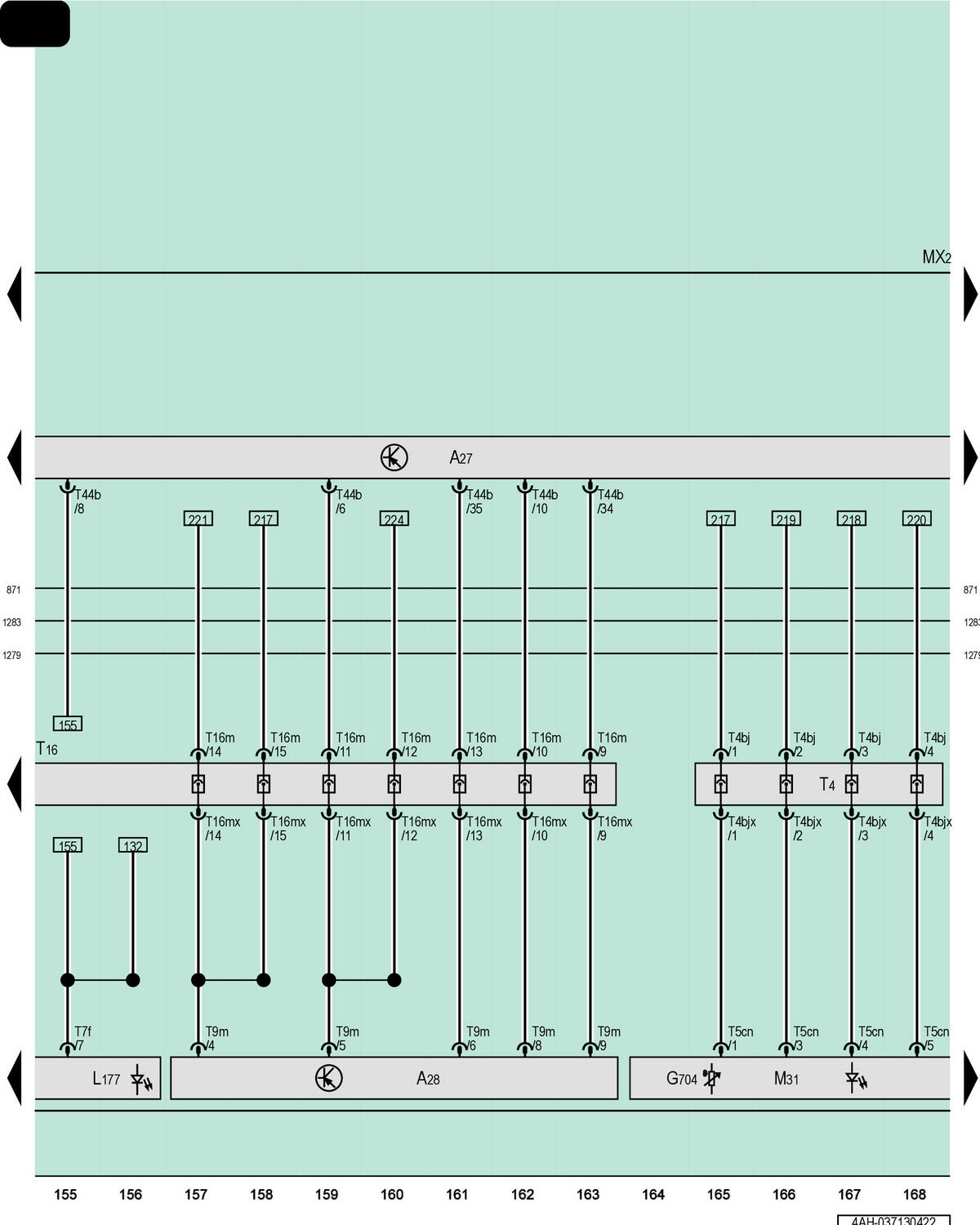

Right Led Headlamp Power Output Module 1, Right Led Headlamp Power Output Module 2, Right Daytime Running Lamp And Position Lamp Led Module, Right Front Headlamp, Right Low Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

A28

Right LED Headlamp Power Output Module 2

G704

Right Headlamp Temperature Sensor 1

L177

Right Daytime Running Lamp and Position Lamp LED Module

MX2

Right Front Headlamp

M31

Right Low Beam Headlamp Bulb

T4

4-Pin Connector, In the Right Headlamp

T16

16-Pin Connector, In the Right Headlamp

T4bj

4-Pin Connector

T4bjx

4-Pin Connector

T5cn

5-Pin Connector

T7f

7-Pin Connector

T9m

9-Pin Connector

T16m

16-Pin Connector

T16mx

16-Pin Connector

T44b

44-Pin Connector
