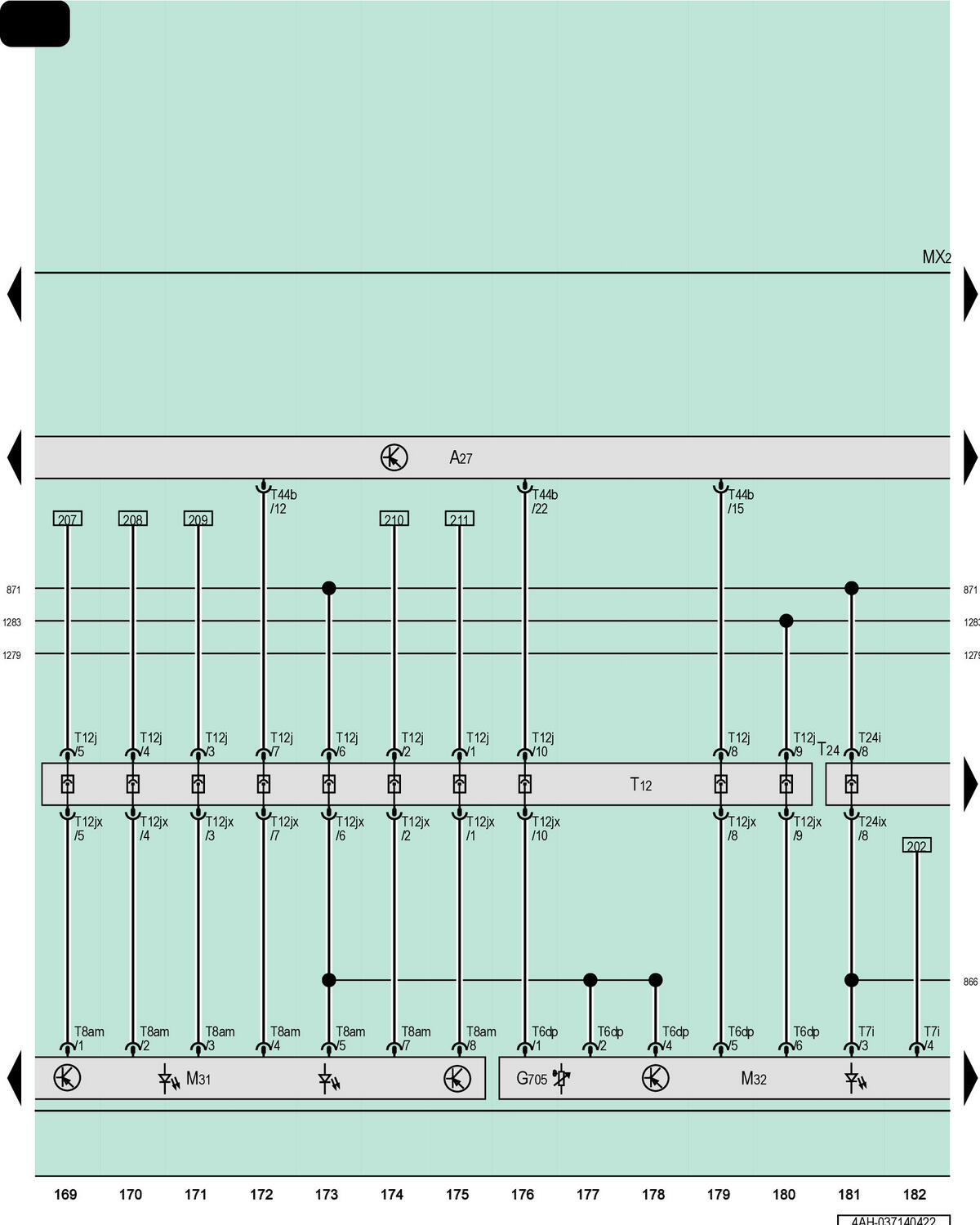

Right Led Headlamp Power Output Module 1, Right Front Headlamp, Right Low Beam Headlamp Bulb, Right High Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

G705

Right Headlamp Temperature Sensor 2

MX2

Right Front Headlamp

M31

Right Low Beam Headlamp Bulb

M32

Right High Beam Headlamp Bulb

T12

12-Pin Connector, In the Right Headlamp

T24

24-Pin Connector, In the Right Headlamp

T6dp

6-Pin Connector

T7i

7-Pin Connector

T8am

8-Pin Connector

T12j

12-Pin Connector

T12jx

12-Pin Connector

T24i

24-Pin Connector

T24ix

24-Pin Connector

T44b

44-Pin Connector
