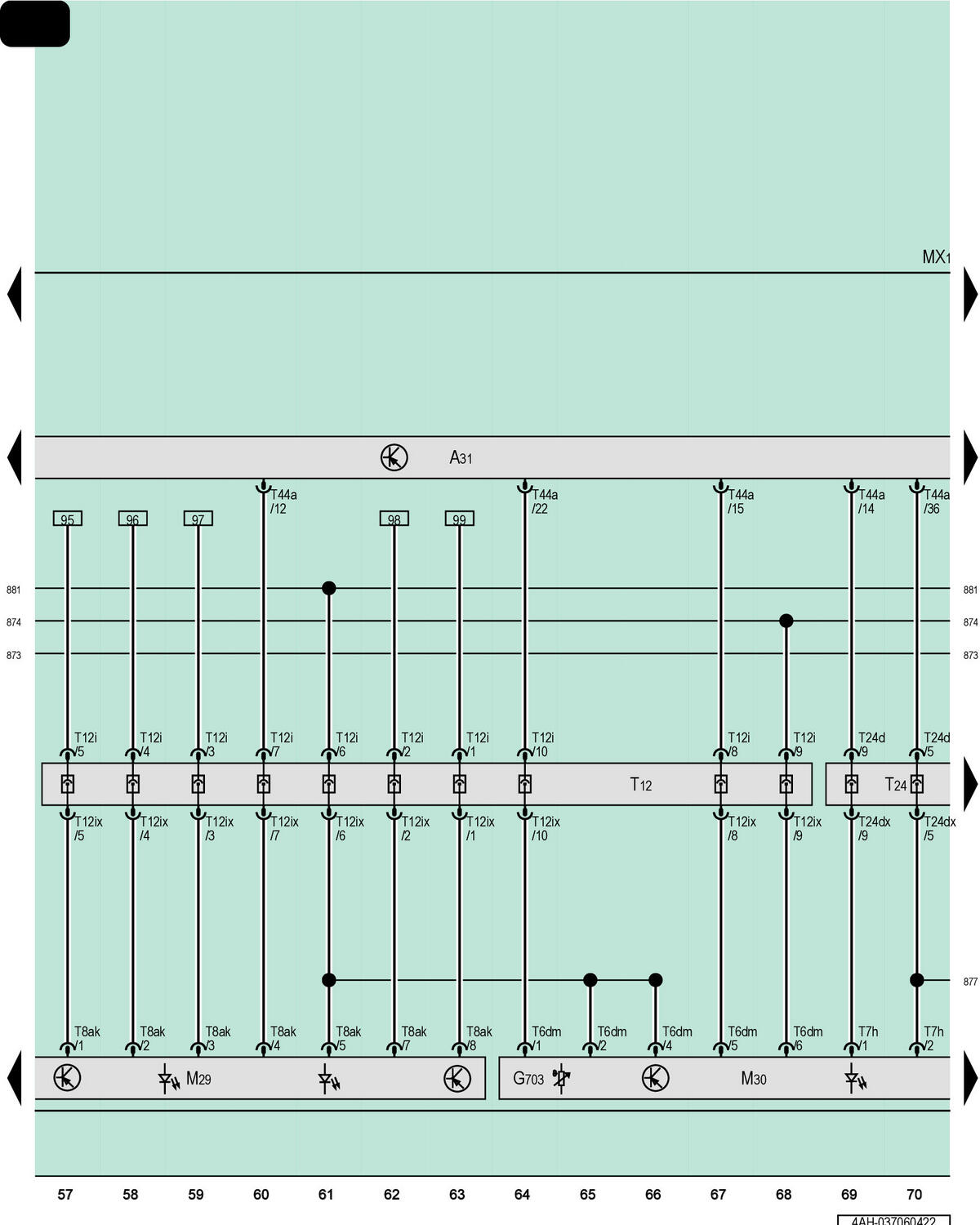

Left Led Headlamp Power Output Module 1, Left Front Headlamp, Left Low Beam Headlamp Bulb, Left High Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

G703

Left Headlamp Temperature Sensor 2

MX1

Left Front Headlamp

M29

Left Low Beam Headlamp Bulb

M30

Left High Beam Headlamp Bulb

T12

12-Pin Connector, In the Left Headlamp

T24

24-Pin Connector, In the Left Headlamp

T6dm

6-Pin Connector

T7h

7-Pin Connector

T8ak

8-Pin Connector

T12i

12-Pin Connector

T12ix

12-Pin Connector

T24d

24-Pin Connector

T24dx

24-Pin Connector

T44a

44-Pin Connector
