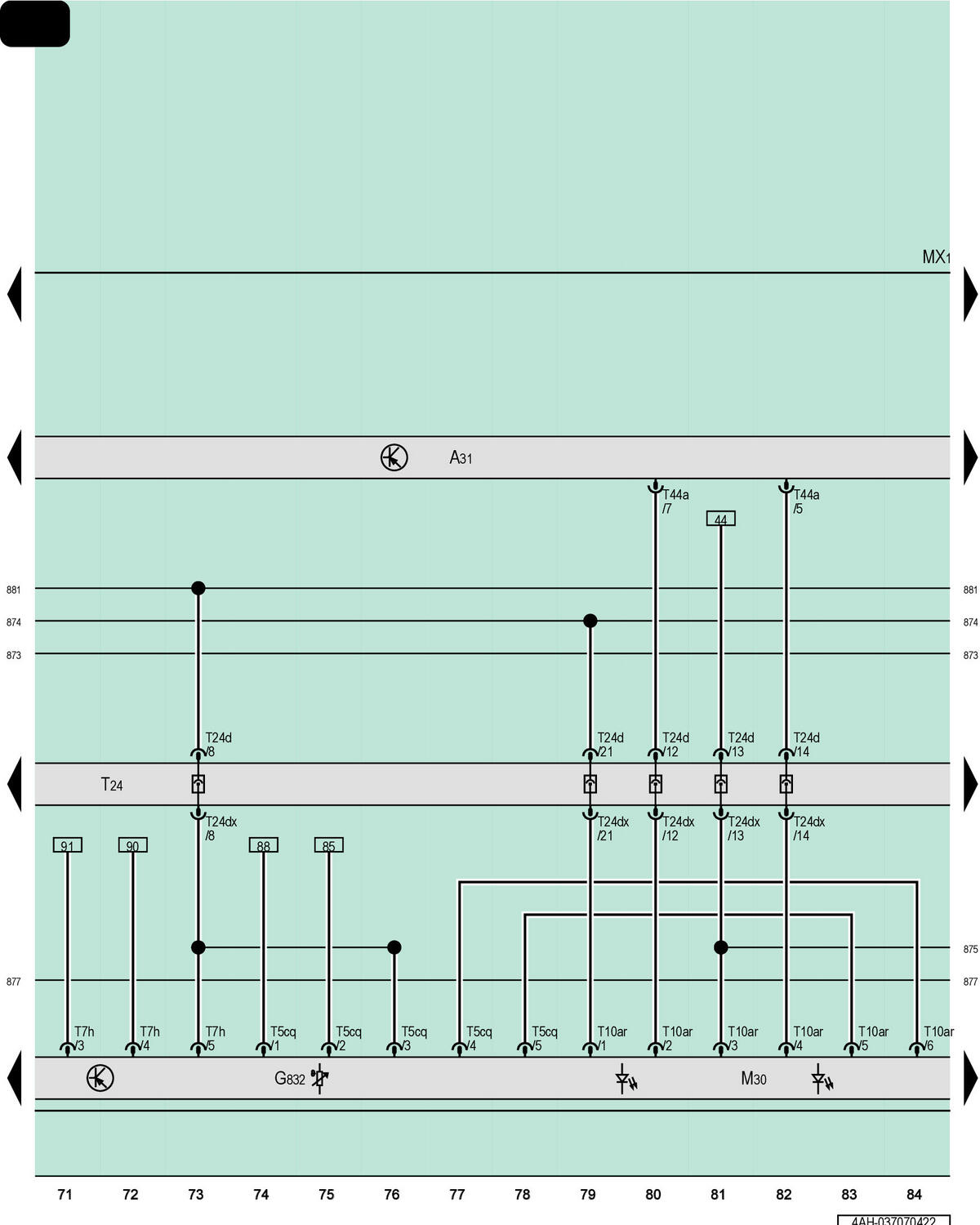

Left Led Headlamp Power Output Module 1, Left Front Headlamp, Left High Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

G832

Left Headlamp Temperature Sensor 3

MX1

Left Front Headlamp

M30

Left High Beam Headlamp Bulb

T24

24-Pin Connector, In the Left Headlamp

T5cq

5-Pin Connector

T7h

7-Pin Connector

T10ar

10-Pin Connector

T24d

24-Pin Connector

T24dx

24-Pin Connector

T44a

44-Pin Connector
