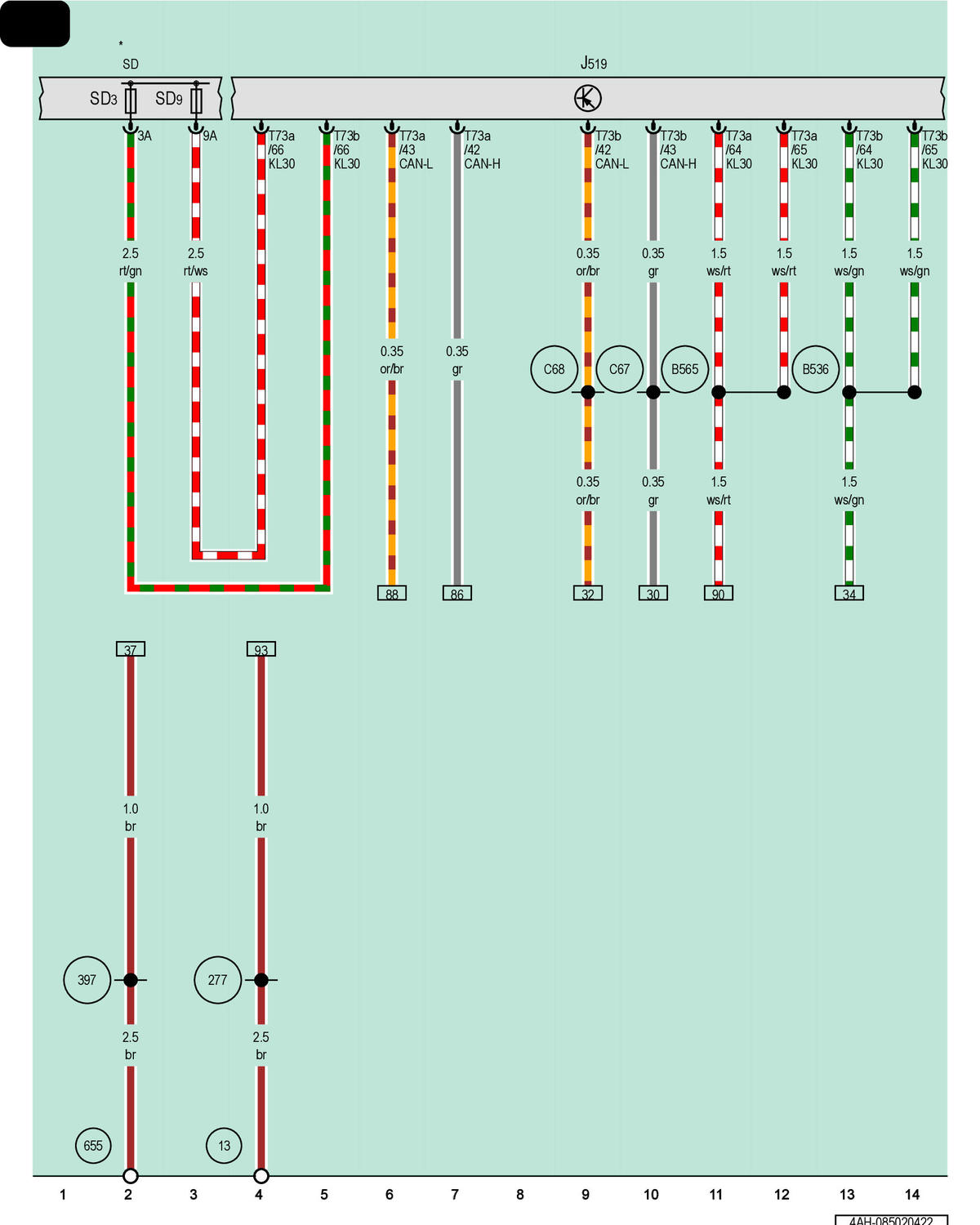

Vehicle Electrical System Control Module

Courtesy of AUDI OF AMERICA, LLC

J519

Fuse Panel D

SD3

Fuse 3 (On Fuse Panel D)

SD9

Fuse 9 (On Fuse Panel D)

T73a

73-Pin Connector, Black, Naturally Cloudy

T73b

73-Pin Connector, Black, Black

Ground Connection in Engine/Motor Compartment, Right

277

Ground Connection 3 (in Interior Wiring Harness)

397

Ground Connection 32 (in Main Wiring Harness)

655

Ground Connection on Left Headlamp

B536

Connection 27 (in Main Wiring Harness)

B565

Connection 32 (in Main Wiring Harness)

C67

CAN Bus High Connection (in Headlamp Wiring Harness)

C68

CAN Bus Low Connection (in Headlamp Wiring Harness)

Refer to Applicable Wiring Diagram for Fuse Positions
