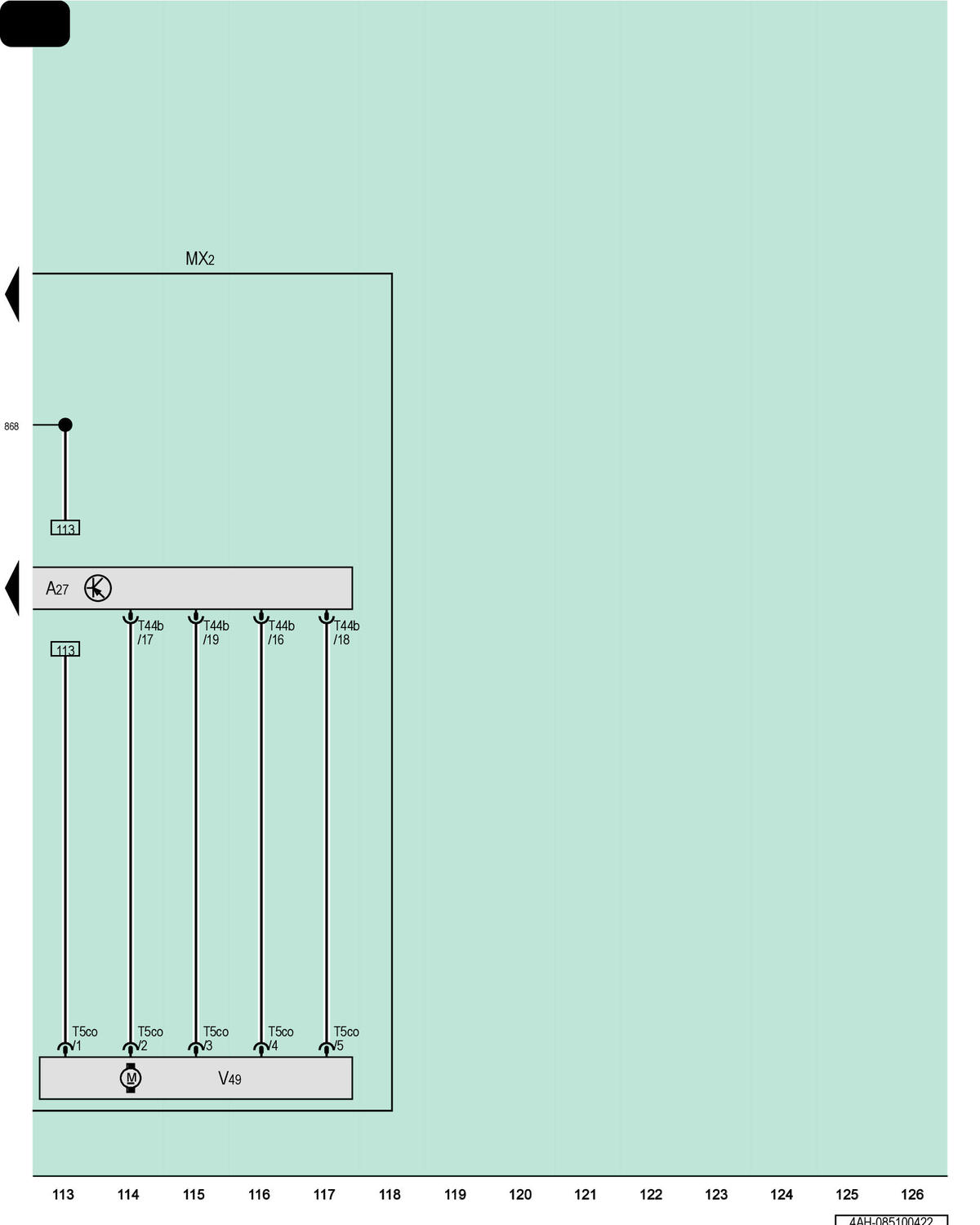

Right Led Headlamp Power Output Module 1, Right Front Headlamp, Right Headlamp Range Control Adjustment Motor

GWW4AH-085100422Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

MX2

Right Front Headlamp

T5co

5-Pin Connector

T44b

44-Pin Connector

V49

Right Headlamp Range Control Adjustment Motor
