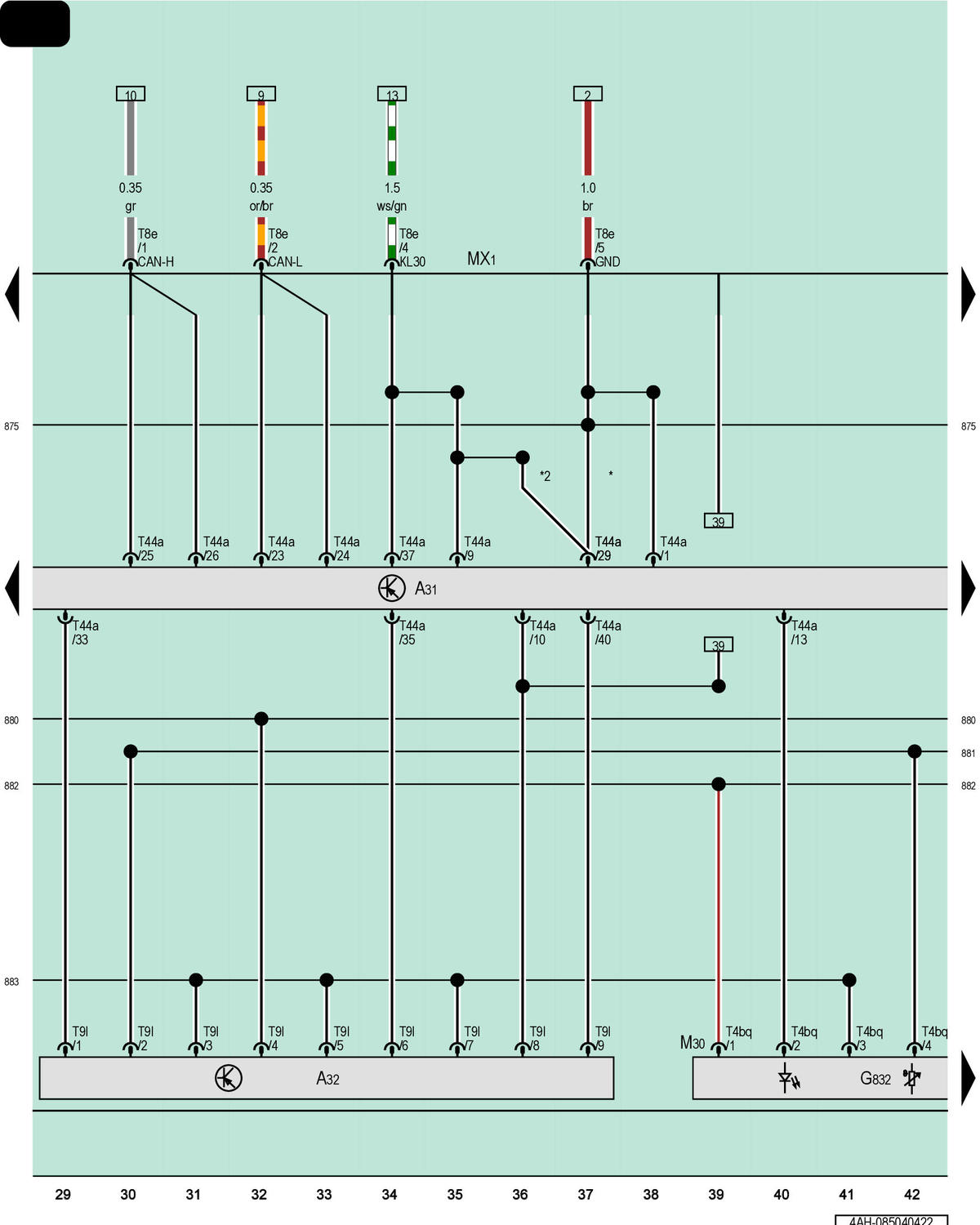

Left Led Headlamp Power Output Module 1, Left Led Headlamp Power Output Module 2, Left Front Headlamp, Left High Beam Headlamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

A32

Left LED Headlamp Power Output Module 2

G832

Left Headlamp Temperature Sensor 3

MX1

Left Front Headlamp

M30

Left High Beam Headlamp Bulb

T4bq

4-Pin Connector

T8e

8-Pin Connector, Black

T9l

9-Pin Connector

T44a

44-Pin Connector

*

For LHD Vehicles

*2

For RHD Vehicles
