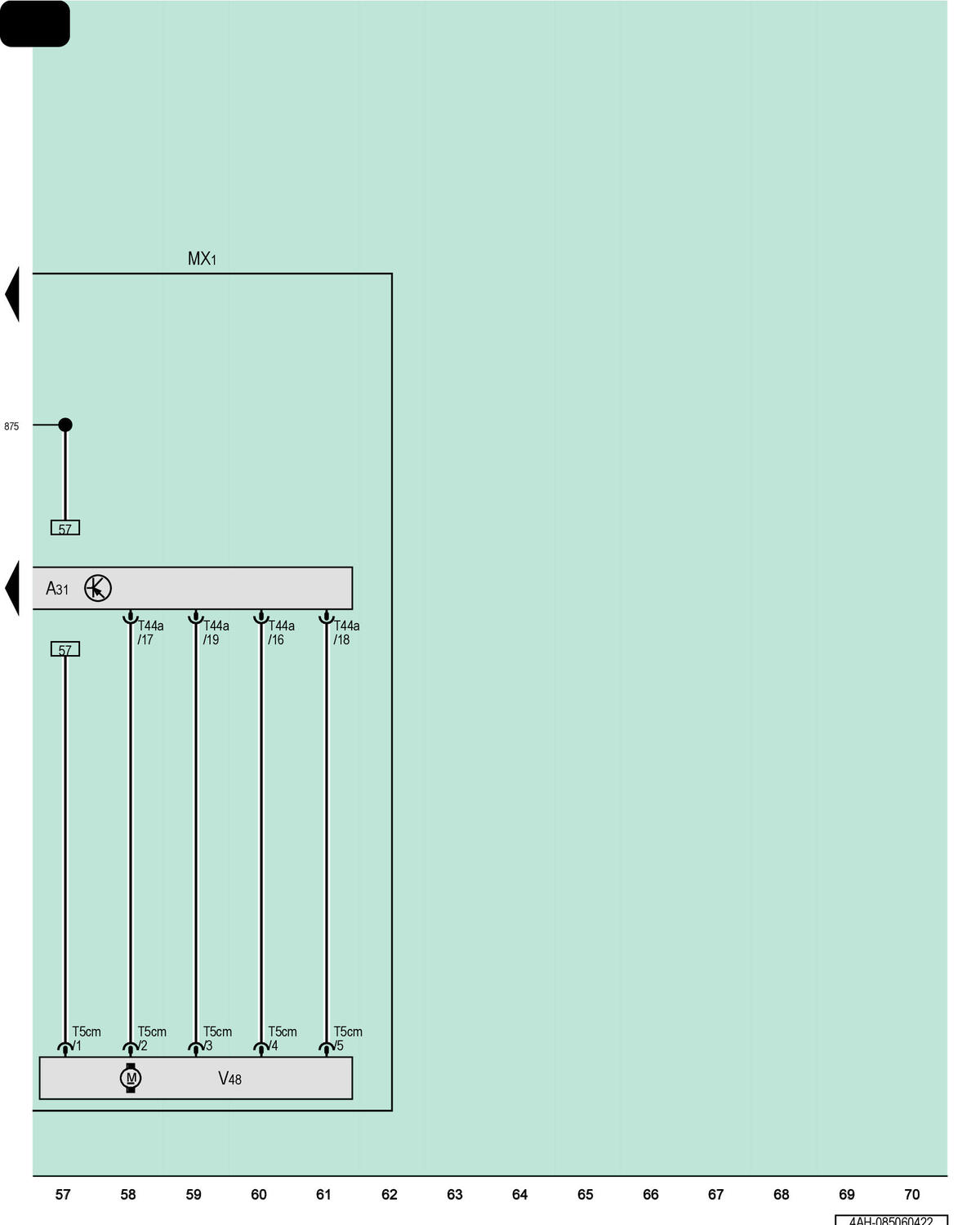

Left Led Headlamp Power Output Module 1, Left Front Headlamp, Left Headlamp Range Control Adjustment Motor

GWW4AH-085060422Courtesy of AUDI OF AMERICA, LLC

A31

Left LED Headlamp Power Output Module 1

MX1

Left Front Headlamp

T5cm

5-Pin Connector

T44a

44-Pin Connector

V48

Left Headlamp Range Control Adjustment Motor
