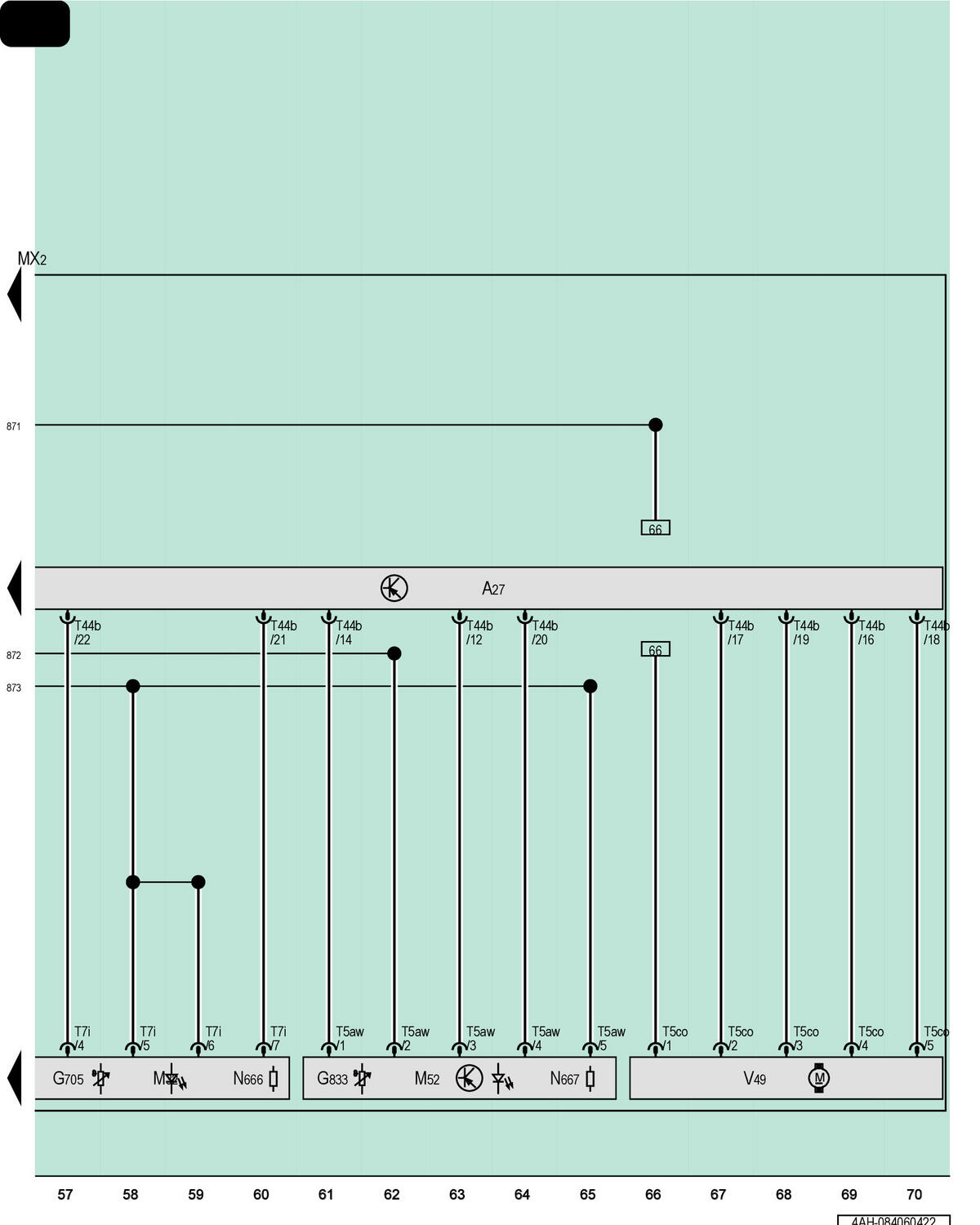

Right Led Headlamp Power Output Module 1, Right Front Headlamp, Right High Beam Headlamp Bulb, Right Stationary Cornering Lamp, Right Headlamp Range Control Adjustment Motor

GWW4AH-084060422Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

G705

Right Headlamp Temperature Sensor 2

G833

Right Headlamp Temperature Sensor 3

MX2

Right Front Headlamp

M32

Right High Beam Headlamp Bulb

M52

Right Stationary Cornering Lamp

N666

Current Coding Resistance 2 for Right Headlamp

N667

Current Coding Resistance 3 for Right Headlamp

T5aw

5-Pin Connector

T5co

5-Pin Connector

T7i

7-Pin Connector

T44b

44-Pin Connector

V49

Right Headlamp Range Control Adjustment Motor
