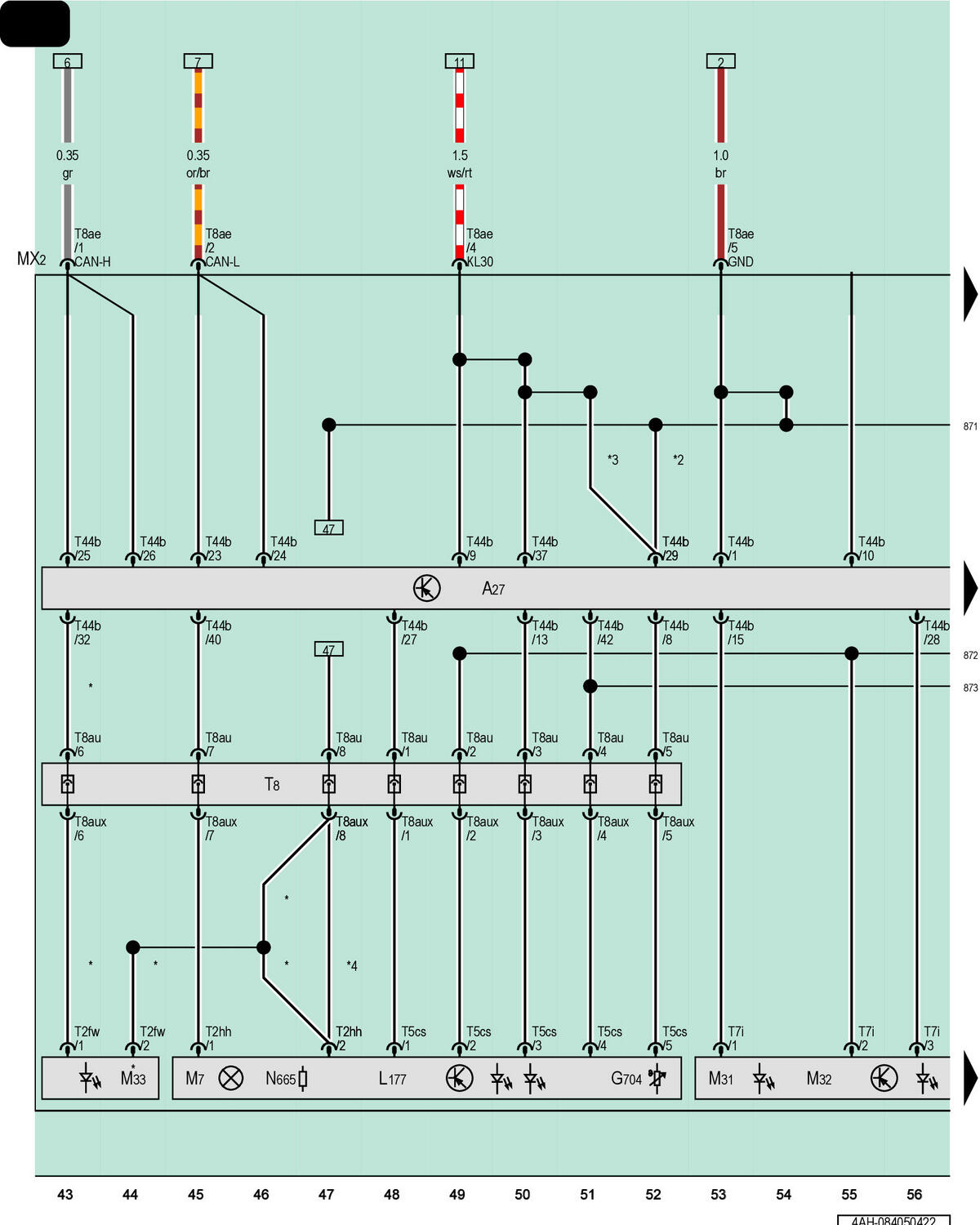

Right Led Headlamp Power Output Module 1, Right Daytime Running Lamp And Position Lamp Led Module, Right Front Headlamp, Right Front Turn Signal Bulb, Right High Beam Headlamp Bulb, Left Front Side Marker Lamp Bulb

Courtesy of AUDI OF AMERICA, LLC

A27

Right LED Headlamp Power Output Module 1

G704

Right Headlamp Temperature Sensor 1

L177

Right Daytime Running Lamp and Position Lamp LED Module

MX2

Right Front Headlamp

M7

Right Front Turn Signal Bulb

M31

Right Low Beam Headlamp Bulb

M32

Right High Beam Headlamp Bulb

M33

Left Front Side Marker Lamp Bulb

N665

Current Coding Resistance 1 for Right Headlamp

T2fw

2-Pin Connector

T2hh

2-Pin Connector

T5cs

5-Pin Connector

T7i

7-Pin Connector

T8

8-Pin Connector, In the Right Headlamp

T8ae

8-Pin Connector, Black

T8au

8-Pin Connector

T8aux

8-Pin Connector

T44b

44-Pin Connector

*

For USA Only

*2

For LHD Vehicles

*3

For RHD Vehicles

*4

Not for USA
