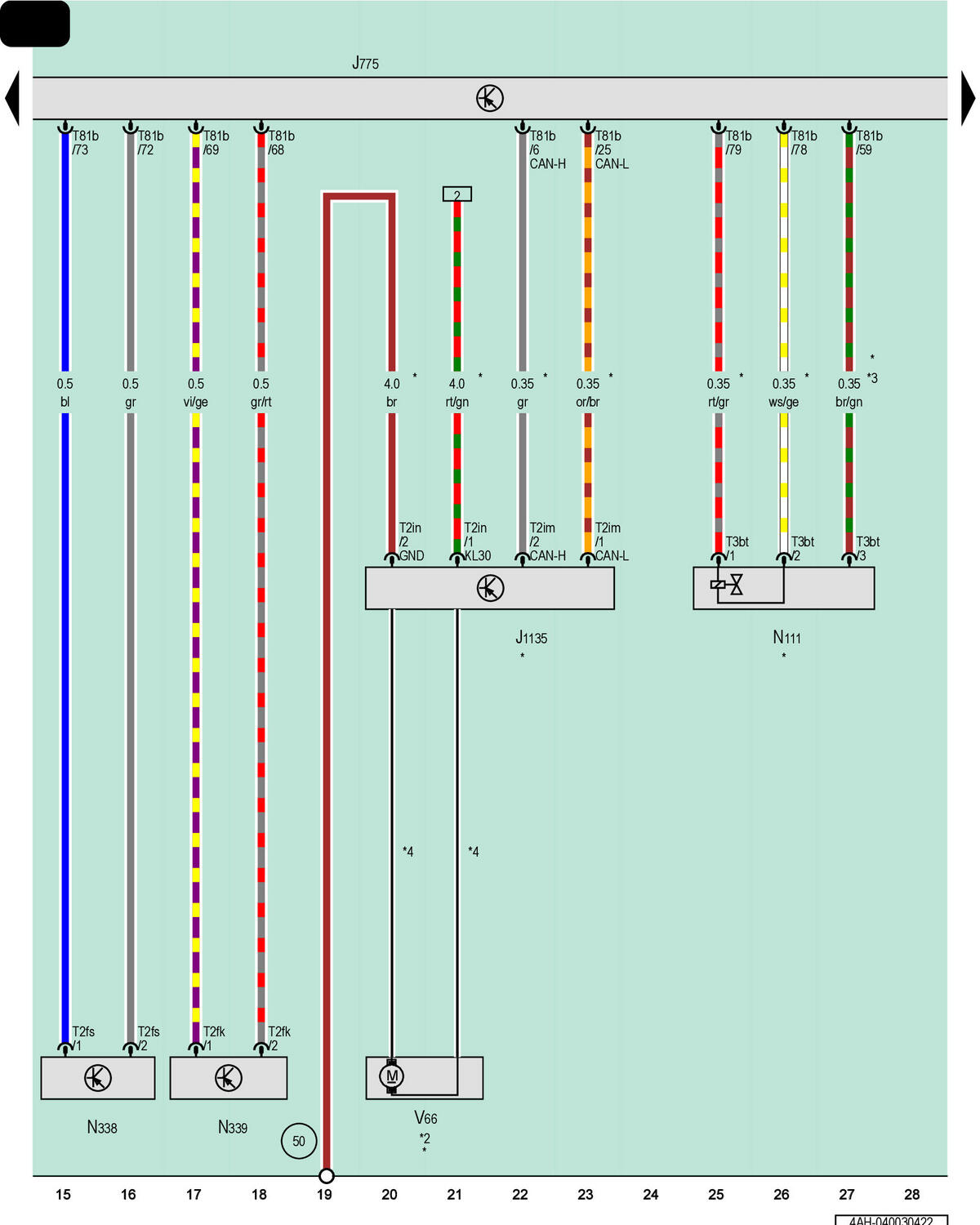

Drivetrain Control Module, Level Control System Compressor Electronics, Level Control System Solenoid, Left Rear Damping Adjustment Valve

Courtesy of AUDI OF AMERICA, LLC

J775

Drivetrain Control Module

J1135

Level Control System Compressor Electronics

N111

Level Control System Solenoid

N338

Left Rear Damping Adjustment Valve

N339

Right Rear Damping Adjustment Valve

T2fk

2-Pin Connector, Black

T2fs

2-Pin Connector, Black

T2im

2-Pin Connector, Black

T2in

2-Pin Connector, Brown

T3bt

3-Pin Connector, Black

T81b

81-Pin Connector, Black

V66

Level Control System Compressor Motor

50

Ground Connection in Luggage Compartment, Left

*

For Vehicles with Air Suspension

*2

Pre-Wired Component

*3

Omitted as a Running Change

*4

Adapter Cable
