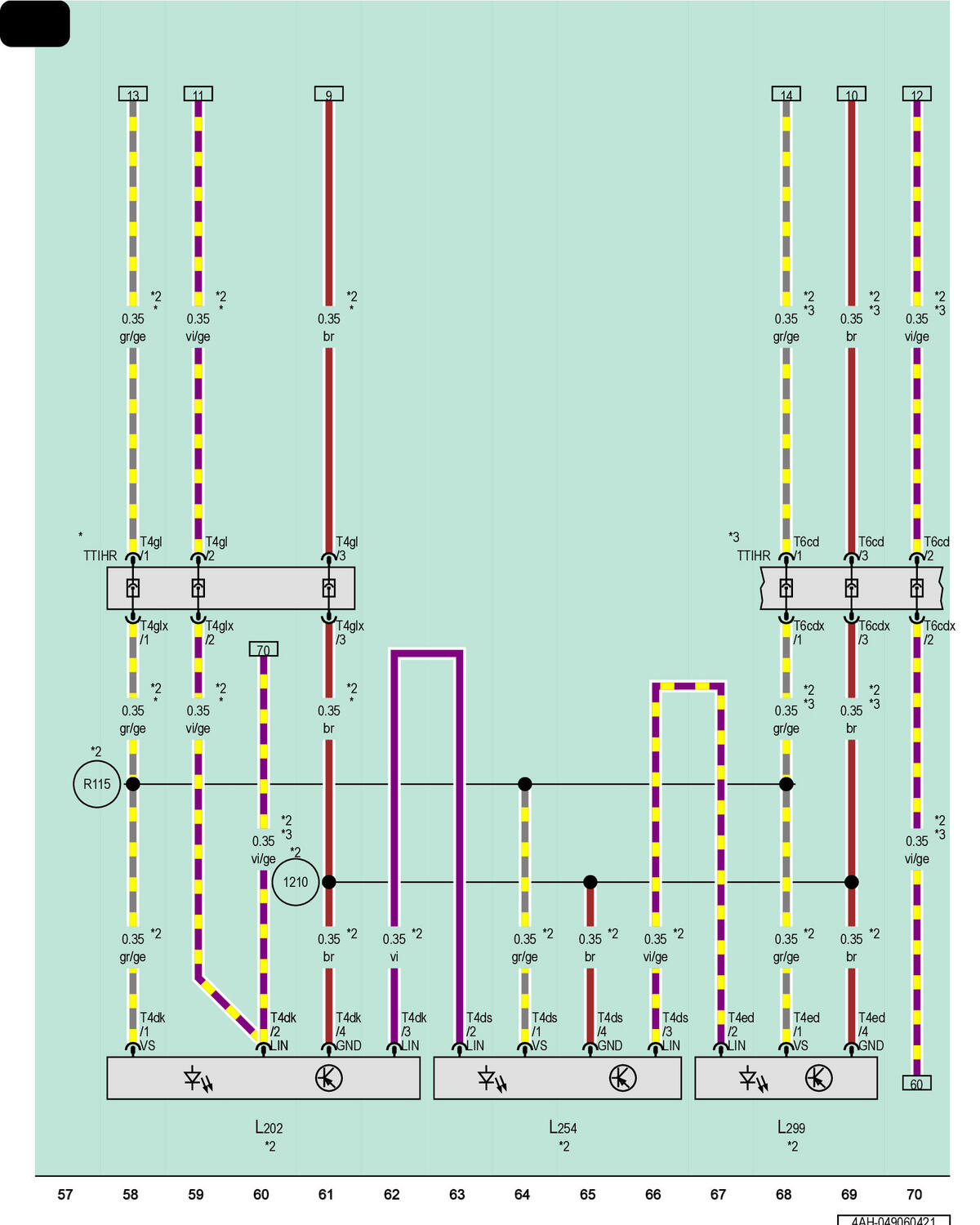

Right Rear Door Ambient Lighting Bulb 1, Right Rear Door Contour Illumination Lamp, Right Rear Door Contour Illumination Lamp 2

Courtesy of AUDI OF AMERICA, LLC

L202

Right Rear Door Ambient Lighting Bulb 1

L254

Right Rear Door Contour Illumination Lamp

L299

Right Rear Door Contour Illumination Lamp 2

T4dk

4-Pin Connector, Black

T4ds

4-Pin Connector, Brown

T4ed

4-Pin Connector, Red

T4gl

4-Pin Connector, Black

T4glx

4-Pin Connector, Black

T6cd

6-Pin Connector, Red

T6cdx

6-Pin Connector, Red

TTIHR

Coupling Point in Right Rear Door

1210

Ground Connection (in Passenger Side Rear Door Wiring Harness)

R115

Ambient Lighting Connection (in Right Rear Door Wiring Harness)

*

Omitted as a Running Change

*2

For Vehicles with Ambient Lighting

*3

Running Change
