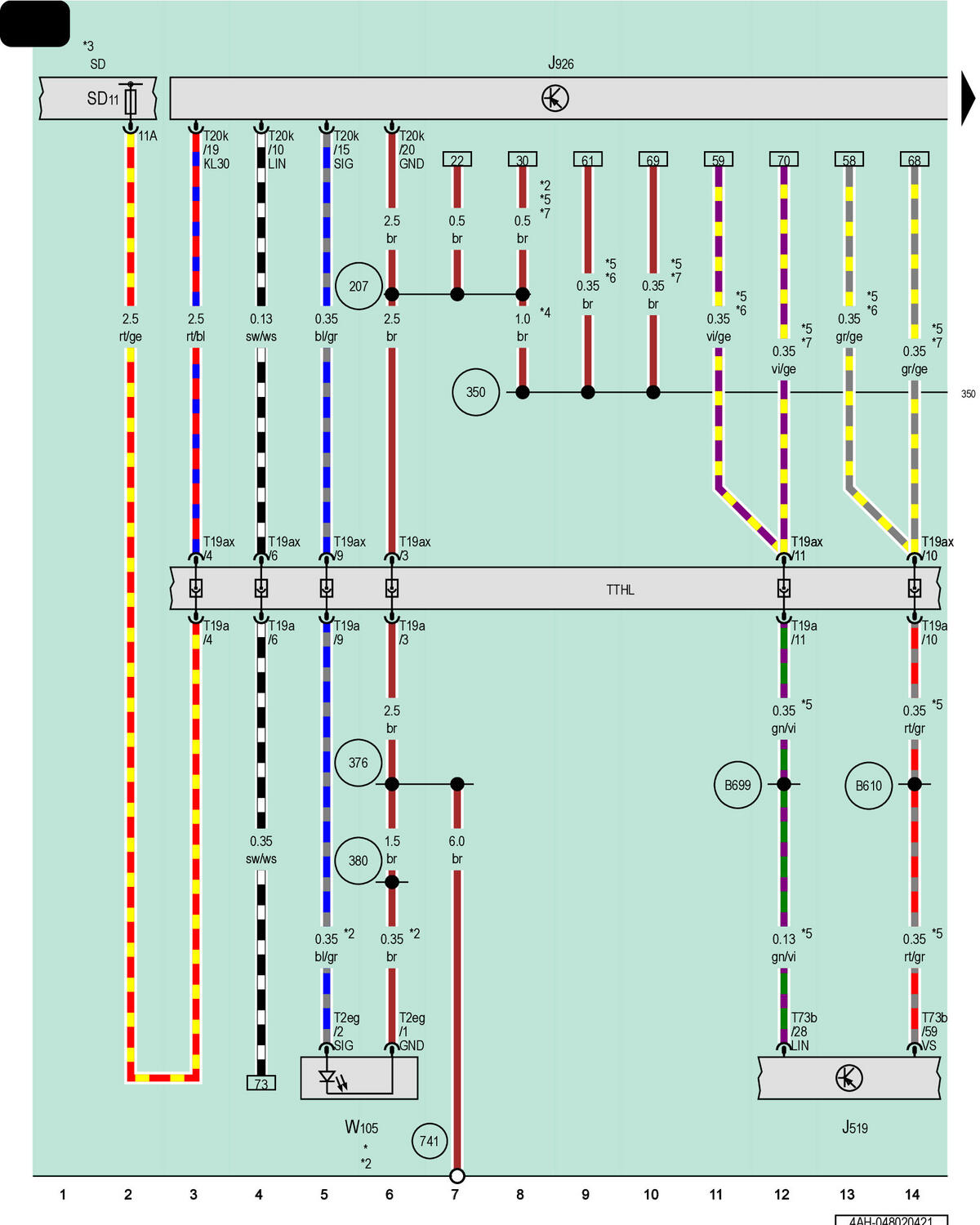

Vehicle Electrical System Control Module, Driver Side Rear Door Control Module, Driver Side Rear Side Sill Panel Strip Ambient Lighting Lamp

Courtesy of AUDI OF AMERICA, LLC

J519

Vehicle Electrical System Control Module

J926

Driver Side Rear Door Control Module

Fuse Panel D

SD11

Fuse 11 (On Fuse Panel D)

T2eg

2-Pin Connector, Black

T19a

19-Pin Connector, Black

T19ax

19-Pin Connector, Black

T20k

20-Pin Connector, White

T73b

73-Pin Connector, Black, Black

TTHL

Left Rear Door Coupling Point

W105

Driver Side Rear Side Sill Panel Strip Ambient Lighting Lamp

207

Ground Connection (in Left Rear Door Wiring Harness)

350

Ground Connection 2 (in Left Rear Door Wiring Harness)

376

Ground Connection 11 (in Main Wiring Harness)

380

Ground Connection 15 (in Main Wiring Harness)

741

Ground Connection Under Left Front Seat

B610

Connection 6 (in Interior Wiring Harness)

B699

LIN Bus Connection 4 (in Main Wiring Harness)

Pre-Wired Component

For Vehicles with Auxiliary Lamps

Refer to Applicable Wiring Diagram for Fuse Positions

Depending on Equipment

For Vehicles with Ambient Lighting

Omitted as a Running Change

Running Change
