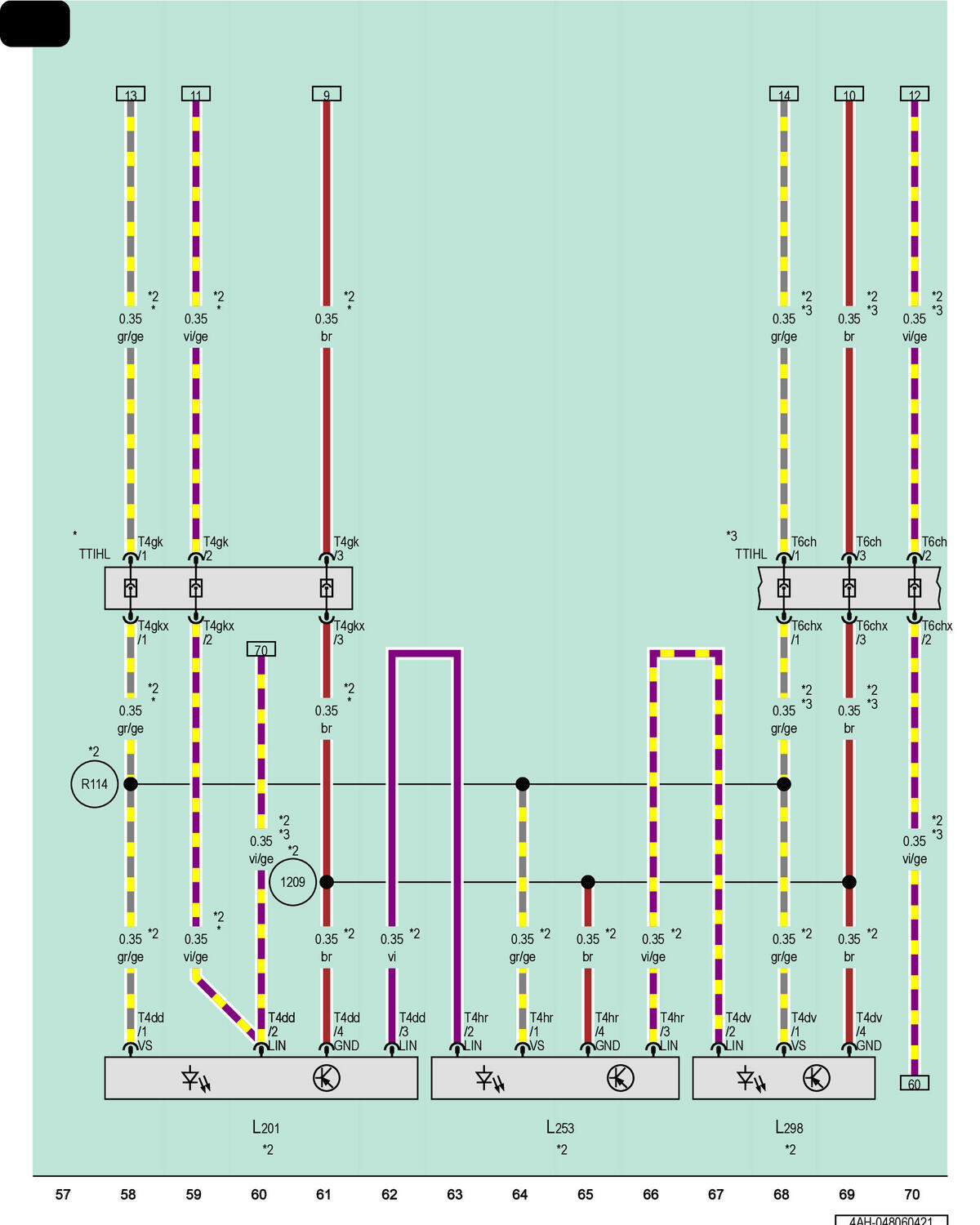

Left Rear Door Ambient Lighting Bulb 1, Left Rear Door Contour Illumination Lamp, Left Rear Door Contour Illumination Lamp 2

Courtesy of AUDI OF AMERICA, LLC

L201

Left Rear Door Ambient Lighting Bulb 1

L253

Left Rear Door Contour Illumination Lamp

L298

Left Rear Door Contour Illumination Lamp 2

T4dd

4-Pin Connector, Black

T4dv

4-Pin Connector, Red

T4gk

4-Pin Connector, Black

T4gkx

4-Pin Connector, Black

T4hr

4-Pin Connector, Brown

T6ch

6-Pin Connector, Red

T6chx

6-Pin Connector, Red

TTIHL

Coupling Point in Left Rear Door

1209

Ground Connection (in Driver Side Rear Door Wiring Harness)

R114

Ambient Lighting Connection (in Left Rear Door Wiring Harness)

Omitted as a Running Change

For Vehicles with Ambient Lighting

Running Change
