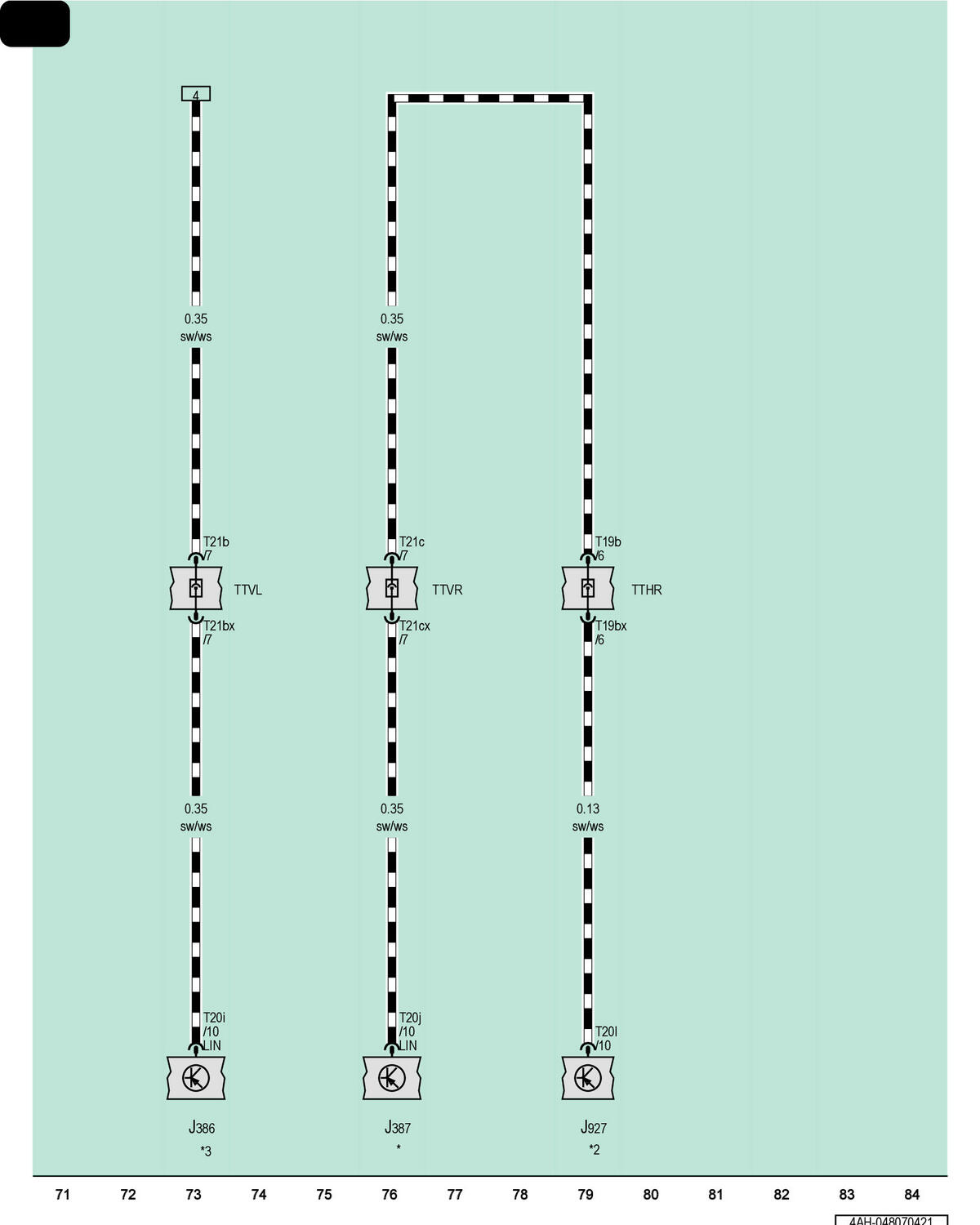

Driver Door Control Module, Front Passenger Door Control Module, Passenger Side Rear Door Control Module

Courtesy of AUDI OF AMERICA, LLC

J386

Driver Door Control Module

J387

Front Passenger Door Control Module

J927

Passenger Side Rear Door Control Module

T19b

19-Pin Connector, Black

T19bx

19-Pin Connector, Black

T20i

20-Pin Connector, White

T20j

20-Pin Connector, White

T20l

20-Pin Connector, White

T21b

21-Pin Connector, Black

T21bx

21-Pin Connector, Black

T21c

21-Pin Connector, Black

T21cx

21-Pin Connector, Black

TTHR

Right Rear Door Coupling Point

TTVL

Left Front Door Coupling Point

TTVR

Right Front Door Coupling Point

*

Refer to Applicable Front Passenger Door Wiring Diagram

*2

Refer to Applicable Wiring Diagram

*3

Refer to Applicable Driver Door Wiring Diagram
